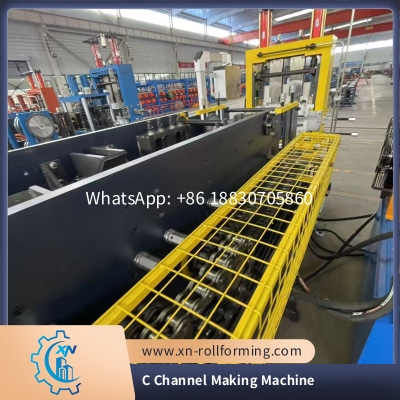

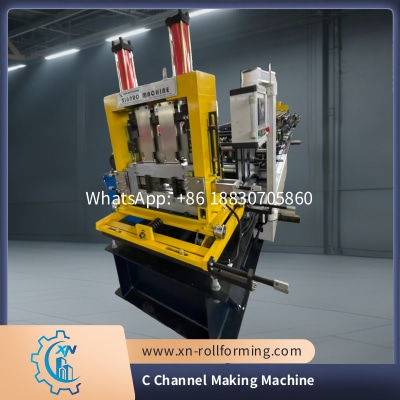

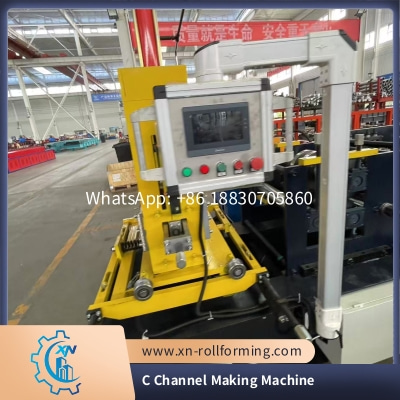

Xinnuo C Channel Making Machine: Precision-Built for Automatic C Purlin Production
Xinnuo’s C Channel Making Machine is a specialized solution engineered exclusively for automatic C purlin roll forming, empowering steel fabricators, prefab building manufacturers, and construction suppliers to produce high-performance C-shaped channels—critical structural elements for roofs, walls, and industrial frameworks. This machine merges adaptability, speed, and durability to redefine efficiency in C-section production, making it a trusted asset for modern manufacturing workflows.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
At its core, the machine prioritizes flexibility to meet diverse project needs. The width of the feeding material is fully customizable to your specifications, eliminating size limitations and enabling production of C channels in dimensions tailored to residential, commercial, or industrial projects. It processes material thicknesses from 1.5mm to 3mm, with additional customization options for unique gauge requirements, ensuring compatibility with both light-duty architectural profiles and heavy-duty load-bearing components.

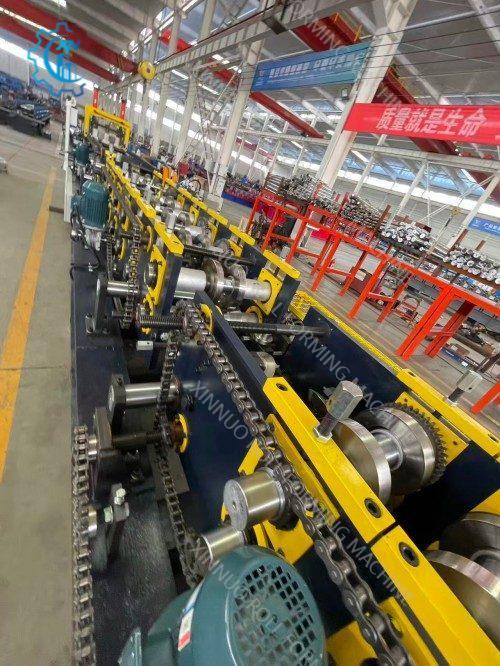

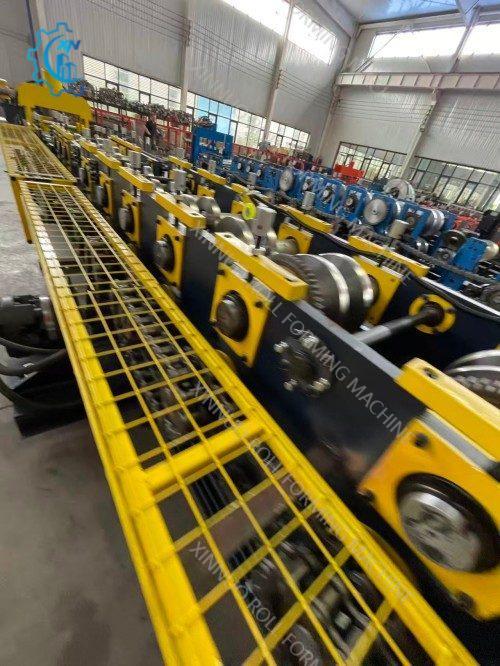

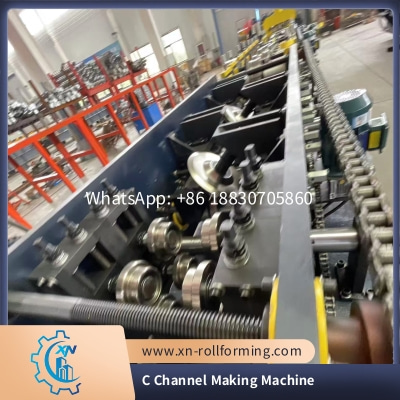

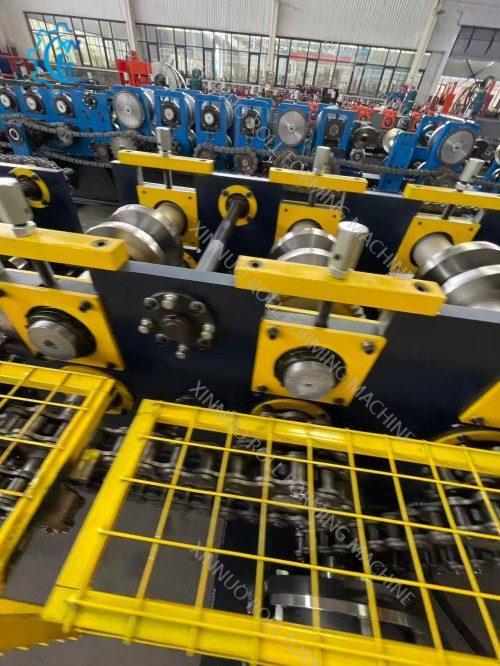

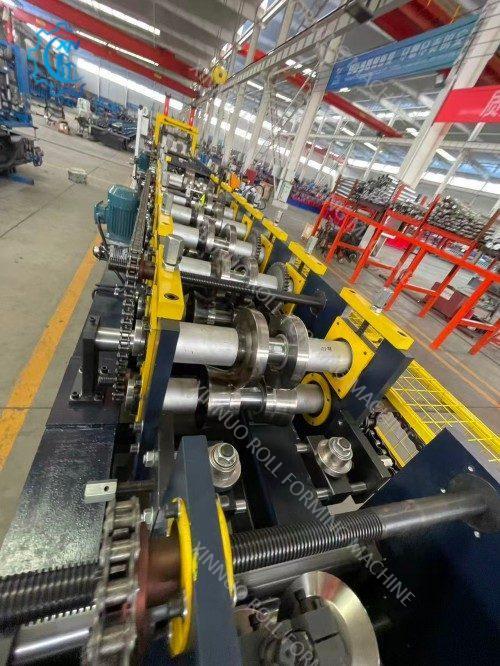

Precision is guaranteed by its 11-18 roller stations (adjustable to customer demands), which deliver gradual, uniform forming to maintain consistent channel dimensions—essential for structural stability. The rollers, crafted from high-wear 45# steel, retain their precision even after prolonged use, while 70-80mm diameter shafts minimize vibration during operation, further enhancing forming accuracy and reducing material waste.
Productivity stands out with a processing speed of 18-20 meters per minute, enabling high-volume production to meet tight construction deadlines without sacrificing quality. A 22kw motor provides robust, consistent power to handle thick-gauge materials effortlessly, ensuring smooth operation even under heavy workloads.
Built for long-term reliability, the machine’s main forming unit features 12-18mm thick steel plates for enhanced rigidity, while its core structure uses 300-400mm H-steel—materials selected to resist deformation and withstand continuous high-speed operation. With an approximate weight of 9.8 tons, the machine offers exceptional stability, reducing operational vibrations and extending the lifespan of key components.
Global usability is seamless, with a standard 380V 50Hz 3-phase power system that can be customized to match regional voltage requirements, ensuring integration into production facilities worldwide. Xinnuo takes customization further: from roller station configurations to material handling capacities, every aspect of the machine can be tailored to align with your unique production goals—whether you need standard C purlins for warehouses or specialized profiles for architectural projects.
More than just equipment, Xinnuo’s C Channel Making Machine is a partner in building resilient structures. It combines precision engineering with user-centric design to streamline production, lower maintenance costs, and deliver consistent, high-quality C channels that meet the strictest industry standards. For businesses aiming to elevate their C-section production, this machine is the ultimate investment in efficiency and reliability.
