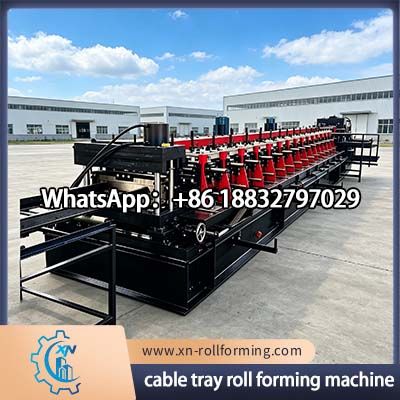

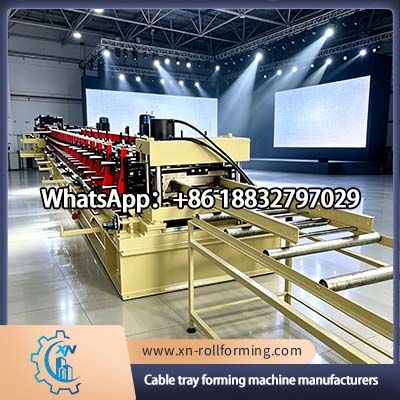

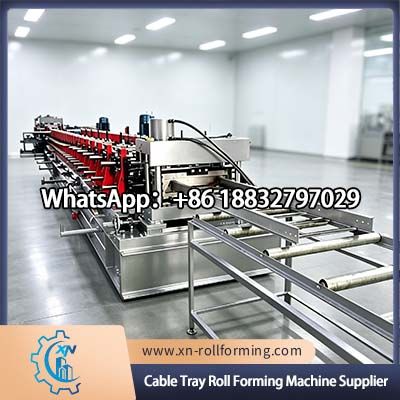

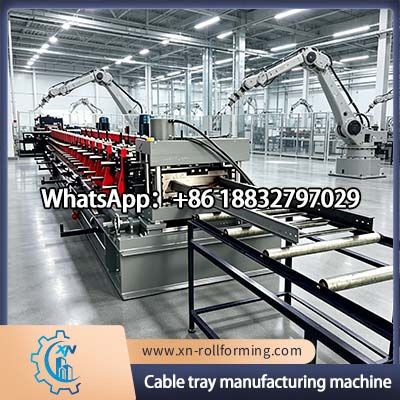

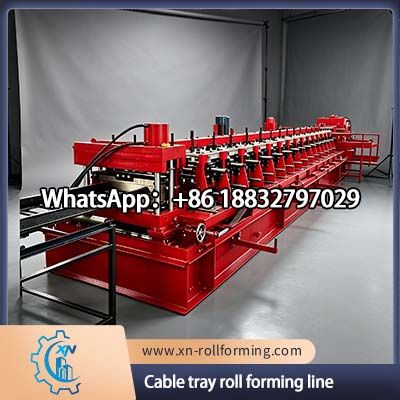

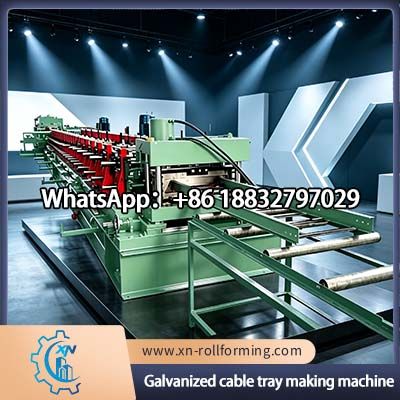

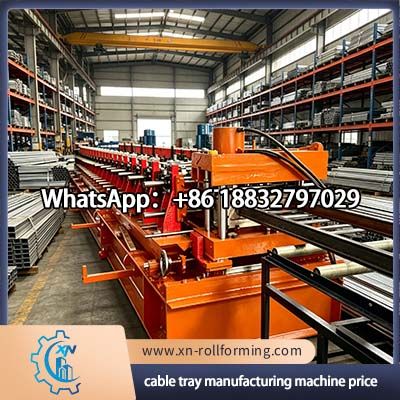

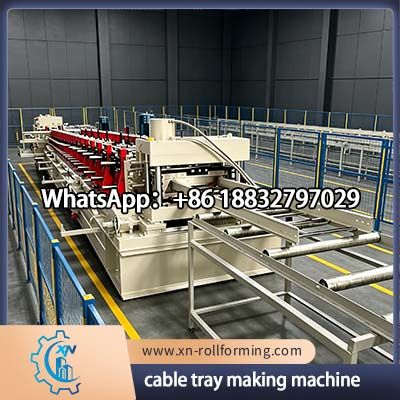

A cable tray roll forming machine is a highly efficient manufacturing solution designed for the automatic production of metal cable trays used in electrical distribution and cable management systems. As industrial construction, commercial buildings, power plants, renewable energy projects, telecommunications infrastructure, and data centers continue to expand worldwide, the demand for durable and cost-effective cable tray systems is increasing rapidly. Manufacturers require reliable equipment capable of producing cable trays with high precision, consistent quality, and flexible dimensions, making roll forming technology the preferred production method.
Our cable tray roll forming machine is engineered to produce a wide range of cable tray products, including perforated cable trays, ladder cable trays, solid-bottom cable trays, cable trunking systems, cable channels, and cable tray covers. The production line combines advanced automation, precision punching technology, and continuous roll forming processes to achieve high productivity while reducing labor costs and material waste.
The cable tray manufacturing line typically consists of several integrated components designed to ensure smooth and efficient production. The process begins with coil loading and decoiling, followed by leveling and feeding. A servo feeding system accurately positions the material before it enters the punching station, where holes, slots, and customized patterns are created according to project specifications.
After punching, the metal strip passes through multiple roll forming stations that gradually shape the material into the desired cable tray profile. Hydraulic or servo-controlled cutting systems then cut the finished product to precise lengths. Finished cable trays can be automatically collected and stacked, improving production efficiency and reducing manual handling.
This continuous manufacturing process ensures consistent dimensions, excellent structural strength, and high production speed, making the cable tray roll forming machine an ideal solution for large-scale manufacturing operations.
Modern cable tray systems are produced using a variety of metal materials depending on project requirements and environmental conditions. Our cable tray roll forming machines are compatible with:
The machine configuration can be customized according to material thickness, yield strength, and finished product specifications, ensuring stable production performance across different applications.
Manufacturers around the world choose cable tray roll forming equipment because of its efficiency, flexibility, and long-term reliability. Key advantages include:
These features help manufacturers improve productivity while maintaining strict quality standards required by electrical and construction industries.
Cable trays produced by roll forming machines are widely used in numerous industries where organized cable routing and protection are essential. Common applications include:
As electrical installations become increasingly complex, demand for high-quality cable tray systems continues to grow, creating significant opportunities for manufacturers investing in advanced production equipment.
Compared with traditional fabrication methods, roll forming technology offers significant advantages in production efficiency and product consistency. Continuous roll forming allows manufacturers to produce large quantities of cable trays with uniform dimensions and excellent surface quality. Automated punching and cutting systems reduce labor dependency while improving overall production accuracy.
Furthermore, modern roll forming lines can be designed to produce multiple cable tray sizes and profiles, allowing manufacturers to respond quickly to changing market demands. This flexibility makes the cable tray roll forming machine a valuable investment for companies seeking long-term growth in the electrical infrastructure market.
Every cable tray manufacturer has unique production requirements. We provide customized cable tray roll forming machine solutions based on tray width, height, material thickness, hole pattern, production speed, and automation level. Whether you need a machine for perforated cable trays, ladder cable trays, or heavy-duty industrial cable management systems, our engineering team can design a production line tailored to your specific needs.
By combining advanced technology, durable machine construction, and comprehensive technical support, our cable tray roll forming machines help manufacturers achieve efficient, reliable, and profitable production for domestic and international markets.
