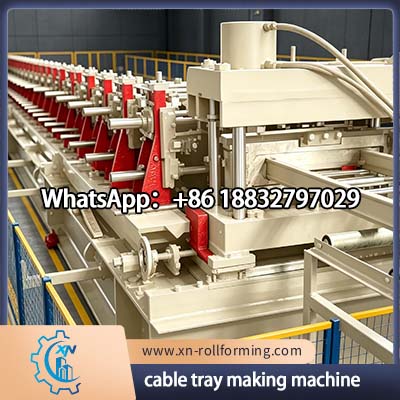

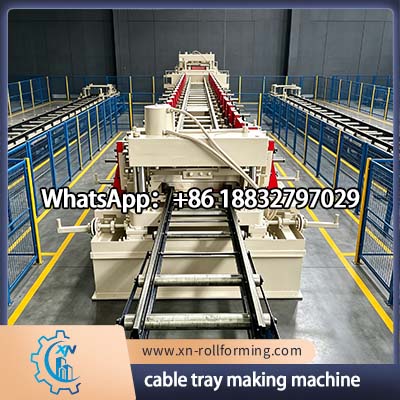

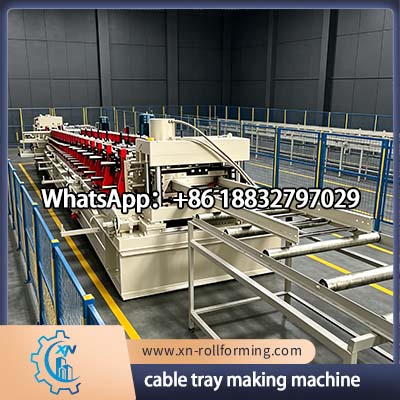

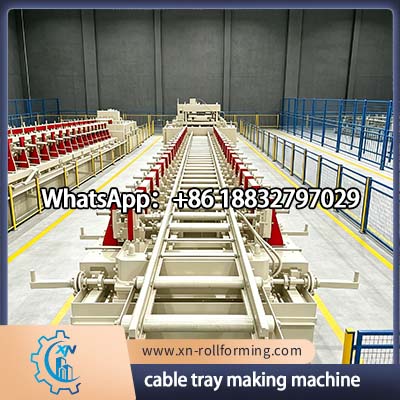

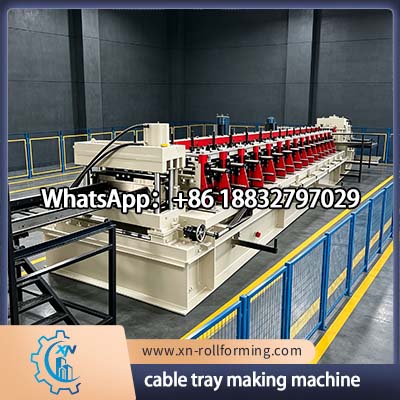

Automatic Cable Tray Making Machine

The Cable Tray Making Machine is a highly efficient and fully automated production solution developed for manufacturing various types of cable tray systems used in modern electrical and industrial installations. With the rapid growth of commercial construction, data centers, renewable energy projects, telecommunications infrastructure, and industrial automation, the global demand for durable and high-quality cable management products continues to increase. This machine helps manufacturers improve production efficiency while ensuring precise forming accuracy and stable product quality.

The machine is designed to produce different cable tray profiles including perforated cable trays, ladder cable trays, solid-bottom cable trays, cable channels, and customized cable support systems. By integrating advanced roll forming technology with automated punching and cutting systems, the production line can continuously manufacture cable trays with high speed and minimal material waste.

The complete cable tray production line generally includes a decoiler, leveling device, servo feeding system, hydraulic punching station, roll forming machine, hydraulic cutting system, and automatic receiving table. Each component works together to ensure smooth and continuous production. The servo feeder guarantees precise material positioning, while the punching system creates slots and hole patterns according to customer drawings and engineering specifications.

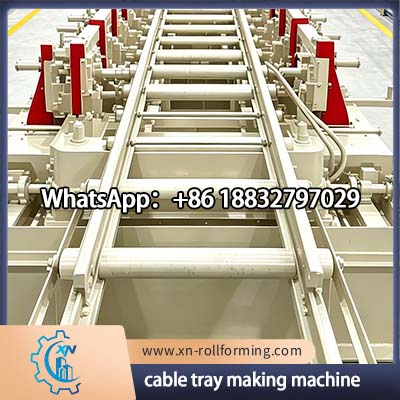

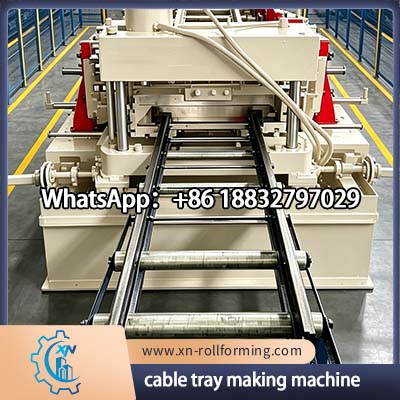

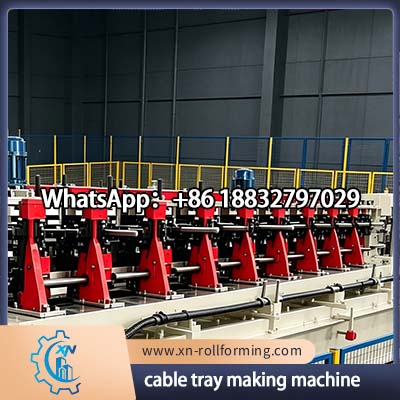

The roll forming section is equipped with multiple forming stations manufactured using precision CNC machining technology. During operation, the metal strip gradually passes through each roller station until the desired cable tray profile is formed. The hydraulic cutting device then cuts the finished products to preset lengths without stopping the production line, greatly improving manufacturing efficiency.

This Cable Tray Making Machine is suitable for processing galvanized steel, hot-dip galvanized steel, stainless steel, aluminum, and other metal materials commonly used in cable tray production. Machine specifications can be customized based on material thickness, tray width, tray height, hole patterns, and production speed requirements. Flexible machine configurations allow manufacturers to produce multiple cable tray sizes and designs using one production system.

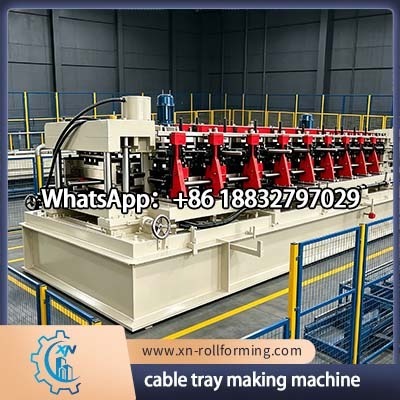

The intelligent PLC control system and touchscreen interface provide convenient operation and easy parameter adjustment. Operators can quickly change production settings, monitor machine performance, and manage different product specifications through the automated control platform. This not only reduces labor intensity but also improves production consistency and operational safety.

Cable trays produced by this machine are widely used in power distribution systems, industrial factories, commercial buildings, airports, railway projects, hospitals, solar power stations, telecommunication facilities, and data centers. These cable management systems help organize electrical wiring, improve maintenance accessibility, and provide long-term cable protection in demanding environments.

Compared with traditional fabrication methods, automated roll forming technology provides higher productivity, lower labor costs, improved dimensional consistency, and more efficient large-scale manufacturing capability. The robust machine frame, high-quality components, and advanced engineering design ensure stable operation and long service life under continuous production conditions.

As the demand for modern cable management systems continues to grow worldwide, investing in a high-performance Cable Tray Making Machine offers manufacturers an excellent opportunity to improve competitiveness and expand production capacity in the electrical infrastructure industry.
