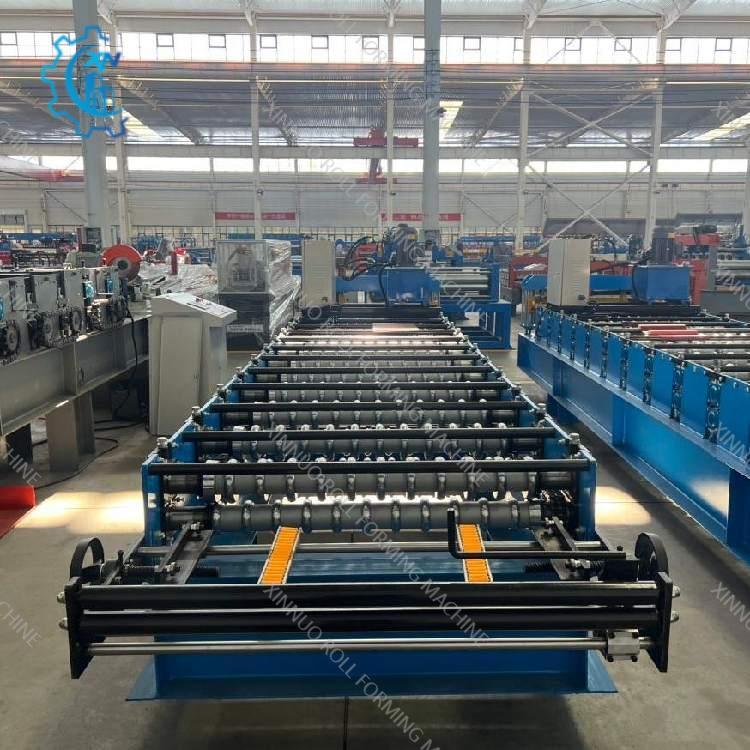

The Corrugated Sheet Roll Forming Machine is an advanced production system designed to manufacture corrugated roofing and cladding sheets with exceptional precision and efficiency. Using high-strength rollers and intelligent automation, this machine transforms flat metal coils into beautifully shaped corrugated sheets that provide excellent strength, durability, and visual appeal. It is widely used in producing roofing panels for houses, warehouses, factories, and steel structures across the world.

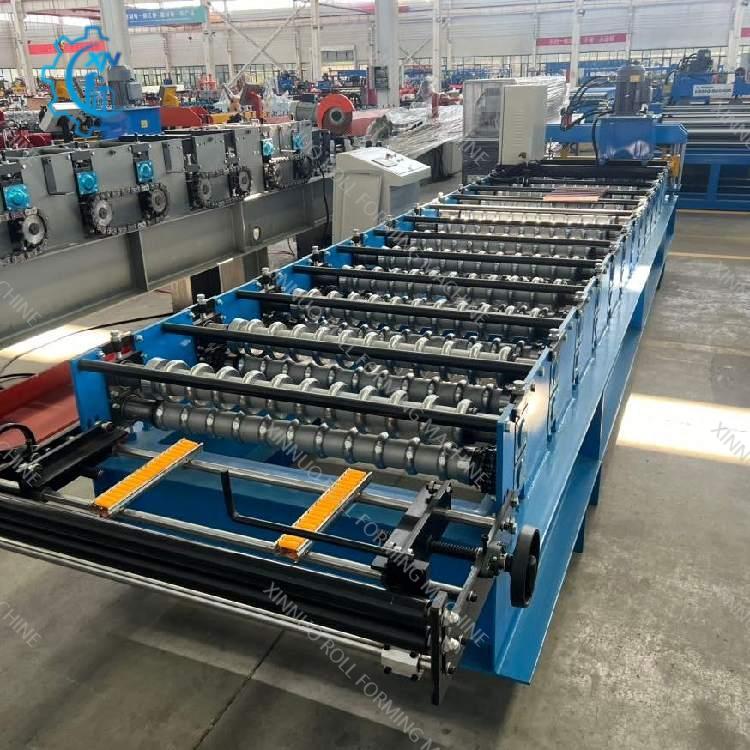

Built with a 350H heavy steel structure and 16 mm wall thickness, the Corrugated Sheet Roll Forming Machine ensures long-term mechanical stability and precise forming performance. Each roller is crafted from high-grade 45# steel, surface-hardened and chrome-plated to maintain perfect shaping accuracy even under continuous operation.

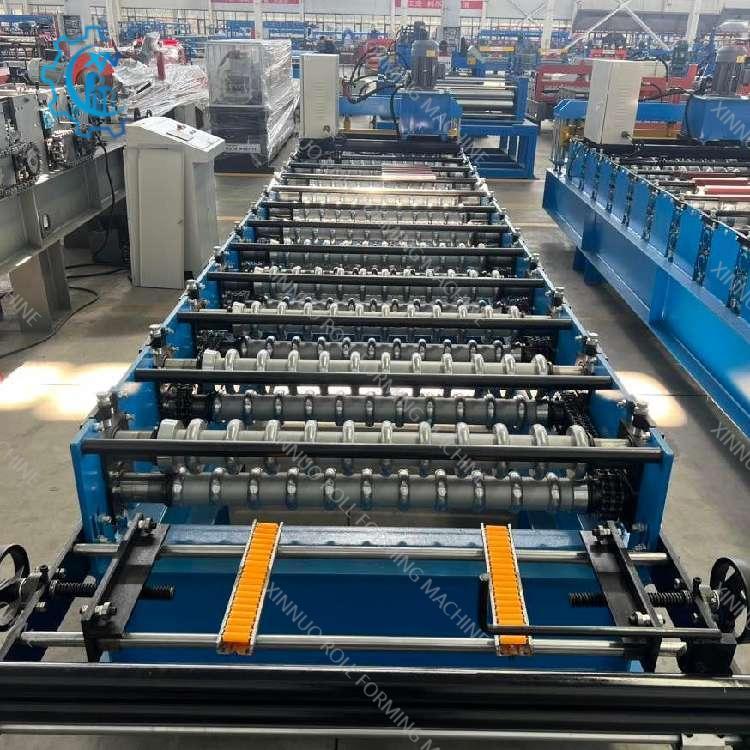

The 70 mm solid shafts support smooth, synchronized rolling motion, minimizing vibration and ensuring each wave of the corrugated profile is perfectly consistent. This machine can handle galvanized steel, color steel, aluminum-zinc, and aluminum coils with a thickness range of 0.3–0.8 mm, and a feeding width of 1000–1250 mm, depending on production requirements.
With a working speed of 10–18 meters per minute, it combines productivity with energy-saving performance—ideal for both small workshops and large-scale manufacturing lines.
The Corrugated Sheet Roll Forming Machine is equipped with a PLC control system featuring an intuitive touch-screen interface, allowing users to easily set cutting lengths, production quantities, and operating modes. Once parameters are entered, the entire production—from coil feeding to forming and hydraulic cutting—is fully automated.

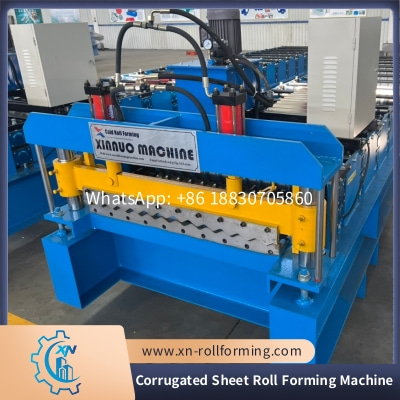

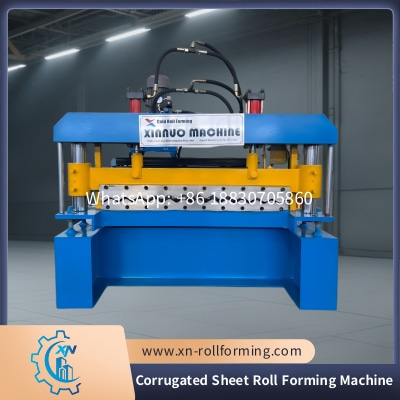

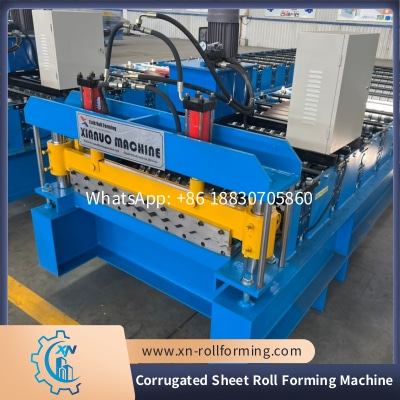

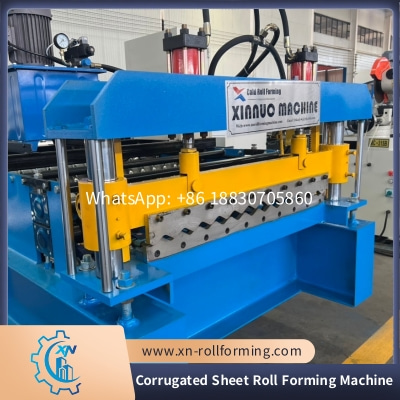

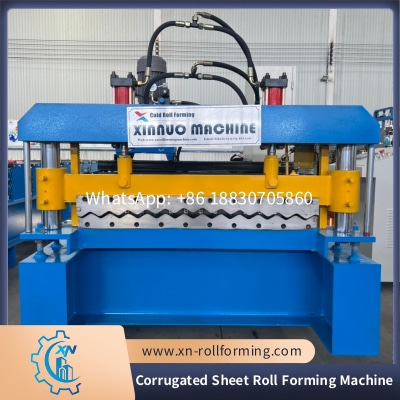

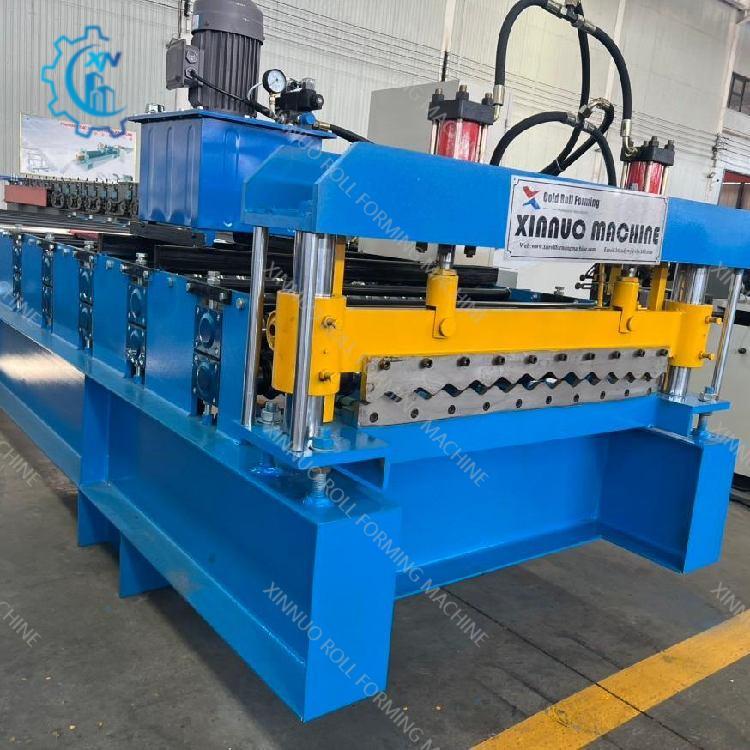

The hydraulic cutting system guarantees smooth, burr-free edges without material distortion. Optional configurations such as automatic decoilers, stackers, or pre-cutting units can be integrated to form a complete and continuous production line, greatly enhancing efficiency.
The sheets produced by this machine are known for their smooth surface finish, symmetrical wave patterns, and superior load-bearing capability. Corrugated sheets are widely used in roofing and wall cladding because of their lightweight structure, easy installation, and excellent resistance to harsh weather conditions.
These sheets are suitable for residential roofs, industrial warehouses, commercial buildings, agricultural barns, and steel frame projects. Different designs and profile shapes can be customized according to regional construction standards or architectural styles.

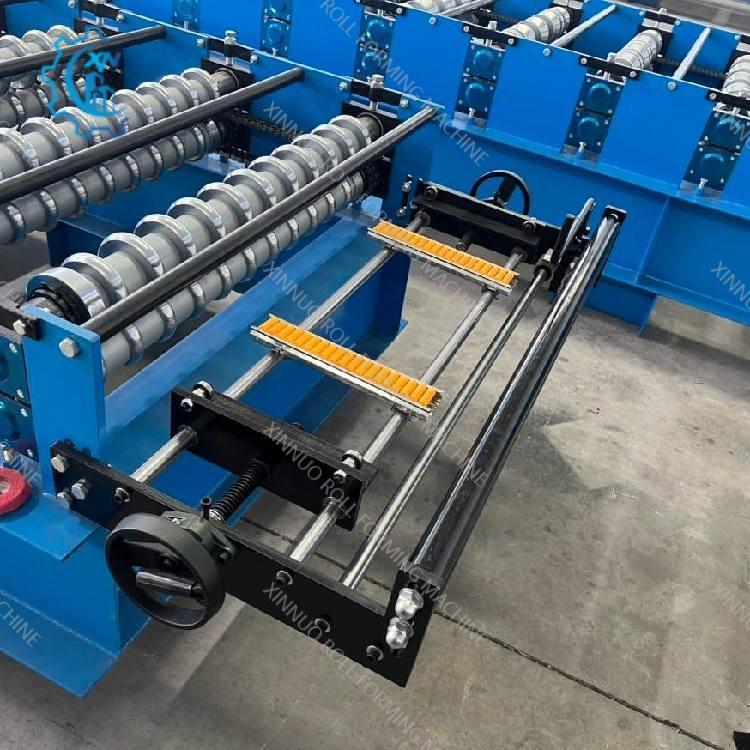

High precision forming rollers ensure consistent corrugation
Durable mechanical frame provides long service life and stable operation
PLC automatic control enables easy operation and high production accuracy
Hydraulic cutting system for clean and accurate sheet ends
Customizable coil width, sheet length, and profile design
Energy-efficient and low-maintenance system
Manufactured by Xinnuo Roll Forming Machine Co., Ltd., a professional supplier of roofing sheet forming equipment, the Corrugated Sheet Roll Forming Machine has been exported to over 60 countries. It has earned a strong reputation for stable quality, easy operation, and excellent after-sales support.
Xinnuo provides complete installation guidance, operator training, and lifetime technical support, ensuring that each client achieves efficient production and consistent results from day one.
Combining precision, reliability, and modern automation, the Corrugated Sheet Roll Forming Machine represents a perfect balance between advanced technology and practical performance. Whether for small contractors or large construction material producers, it is an indispensable machine for manufacturing high-quality corrugated roofing and wall cladding sheets with long-lasting value.
