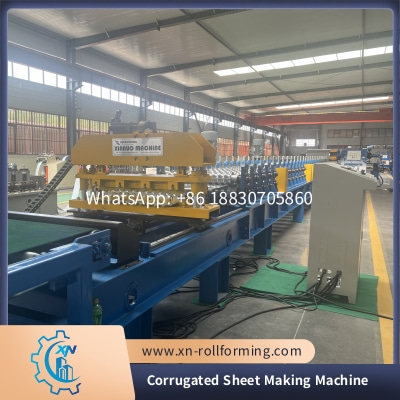

Corrugated Sheet Making Machine

Corrugated Sheet Making Machine

The Corrugated Sheet Making Machine is a high-performance roll forming system designed to produce corrugated metal sheets with superior precision, uniformity, and durability. It transforms raw steel coils—such as color-coated, galvanized, or aluminum sheets—into beautifully shaped corrugated panels widely used in roofing, cladding, and fencing applications around the world.

Engineered for Precision and Reliability

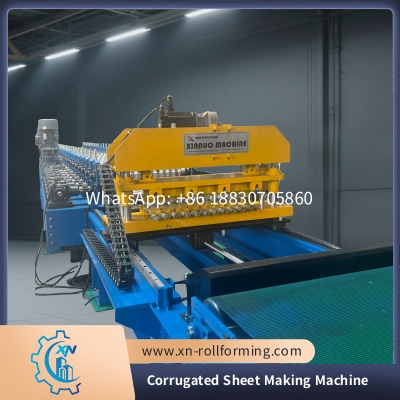

At the heart of the system is a high-speed roll forming station powered by precision-engineered rollers made from hardened 45# steel and coated with chrome plating for maximum wear resistance. The main body is built from heavy-duty 350 H-beam steel, providing excellent rigidity and vibration reduction during operation.

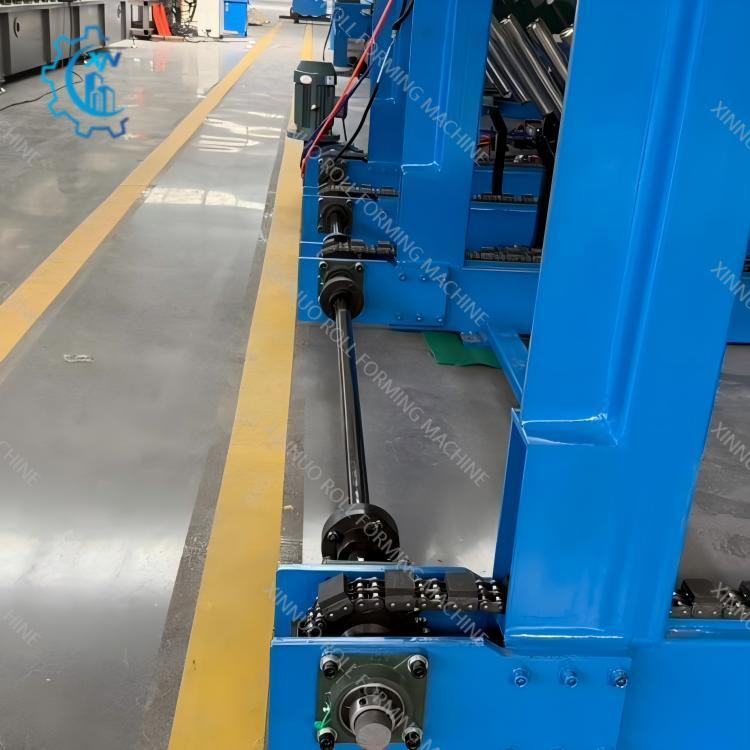

The machine accommodates sheet widths of up to 1000–1250 mm and thicknesses from 0.3 to 0.8 mm, allowing flexible configuration based on your specific project needs. Driven by a powerful 3+3 kW motor system and supported by 70 mm diameter shafts, it delivers smooth, stable, and continuous sheet forming at production speeds of 10–16 meters per minute.

Advanced Automation and Easy Operation

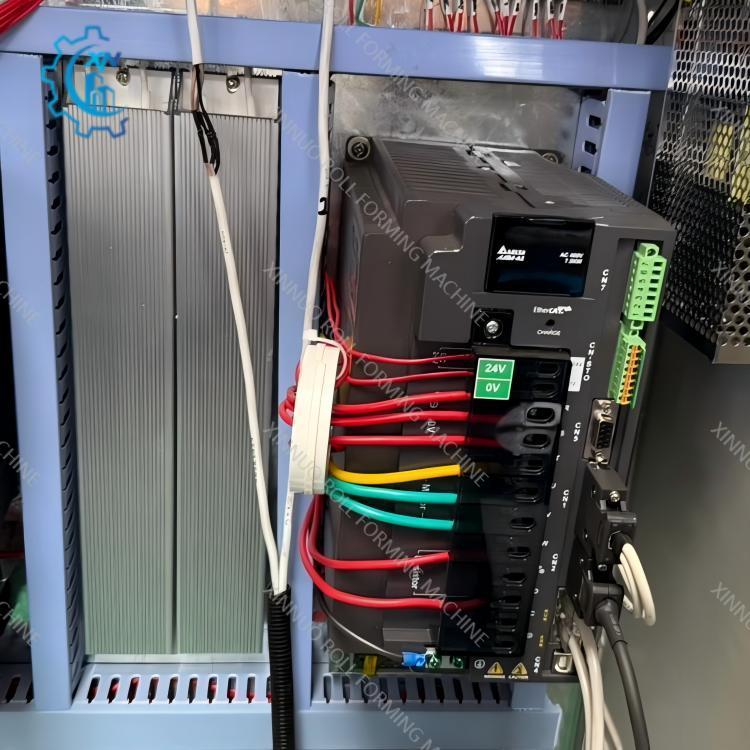

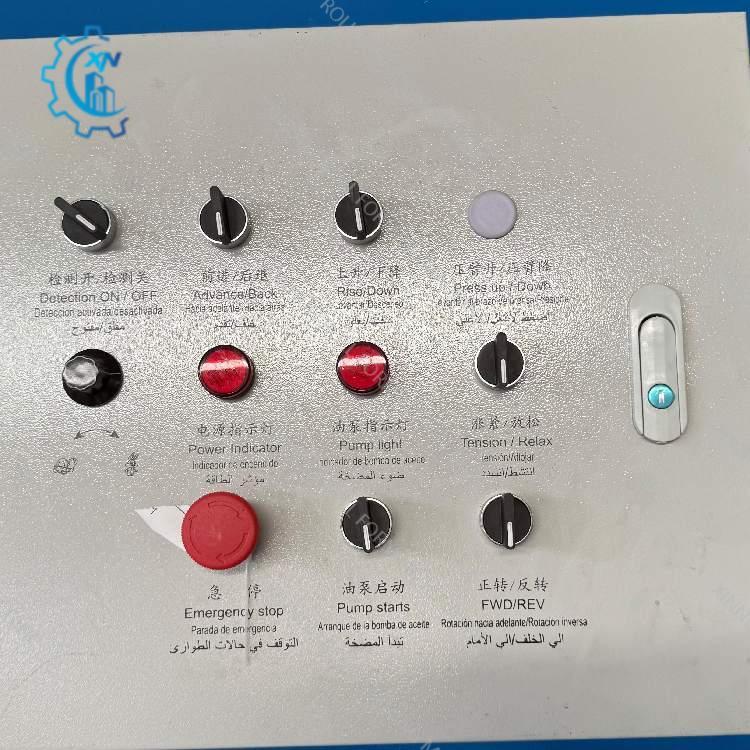

Equipped with a PLC-based control system and touch-screen interface, the Corrugated Sheet Making Machine offers simple, smart, and efficient operation. Users can set production length, control cutting accuracy, and monitor the forming process in real time.

The hydraulic cutting unit ensures clean edges and accurate cutting without material distortion. An automatic stacker can be integrated to collect finished sheets neatly, reducing manual handling and labor costs. Together, these systems create a fully automated production line that improves efficiency, minimizes waste, and ensures consistency across every batch.

High-Quality Corrugated Sheets

Sheets produced by this machine are recognized for their smooth wave patterns, high strength, and excellent surface finish. The corrugated design not only enhances structural integrity but also improves water drainage and wind resistance—making it ideal for both industrial and residential roofing systems.

Available in various profiles and custom sizes, the corrugated sheets can be produced from pre-painted, galvanized, or aluminum materials, giving end users multiple options for functionality and aesthetic appeal.

Why Choose Xinnuo’s Corrugated Sheet Making Machine?

• Consistent forming accuracy and reliable performance

• Energy-efficient system with stable mechanical operation

• User-friendly PLC interface for quick setup and monitoring

• Durable steel frame and corrosion-resistant rollers for long life

• Flexible customization of profile, width, and thickness

• Low maintenance with easy component replacement

A Complete Solution for Roofing Manufacturers

The Corrugated Sheet Making Machine from Xinnuo Roll Forming Machine Co., Ltd. offers manufacturers a cost-effective and efficient way to produce high-quality corrugated panels for global markets. Its integration of modern automation, durable materials, and precise engineering ensures both operational stability and consistent output.

Whether you are starting a new roofing production line or upgrading an existing facility, this machine provides the strength, flexibility, and reliability needed to meet growing market demand. Backed by Xinnuo’s comprehensive technical support and after-sales service, it’s a long-term investment that ensures strong productivity and superior roofing results.

Conclusion

Combining innovation, precision, and durability, the Corrugated Sheet Making Machine delivers world-class forming performance and exceptional sheet quality. It’s the perfect solution for manufacturers aiming to expand their product range and enhance competitiveness in the global construction materials industry.
