Corrugated Iron Machine

Corrugated Iron Machine

The Corrugated Iron Machine is a high-precision roll forming system engineered to produce corrugated metal sheets with exceptional accuracy, strength, and visual consistency. As one of the most trusted machines in the roofing industry, it plays a crucial role in manufacturing durable roofing and cladding materials that are widely used across industrial, agricultural, and residential buildings.

Engineered for High Efficiency

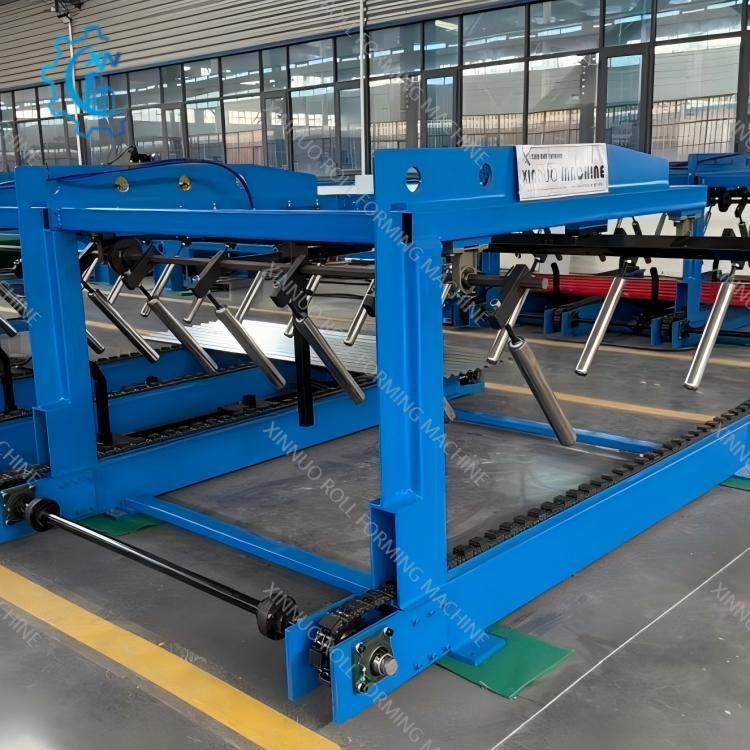

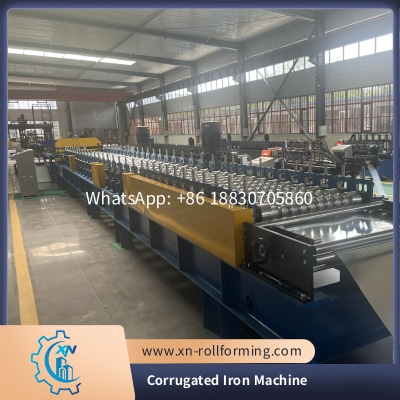

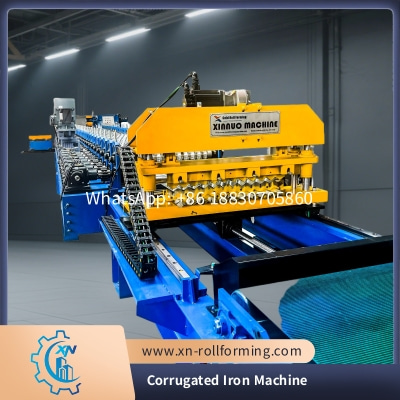

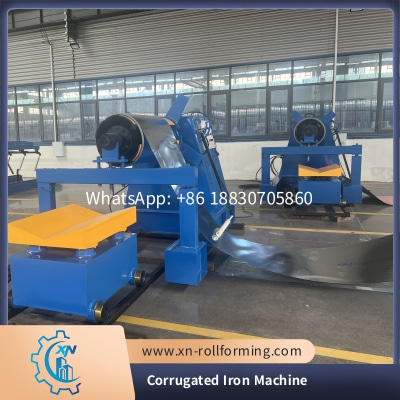

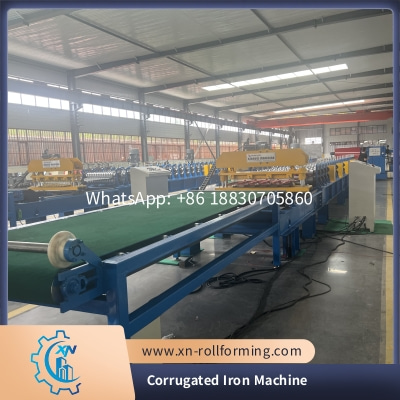

Built with cutting-edge forming technology, the Corrugated Iron Machine combines mechanical precision, automation, and structural durability in one compact system. The production line includes a hydraulic decoiler, a high-speed roll forming station, a PLC-controlled cutting unit, and an automatic stacker, forming a smooth and continuous production process.

The machine is capable of processing color steel, galvanized steel, aluminum, and zinc-coated sheets with a thickness range of 0.3–0.8 mm and widths up to 1250 mm. With a production speed of 10–20 meters per minute, it ensures high throughput while maintaining consistent profile accuracy and surface finish.

Advanced Design, Stable Performance

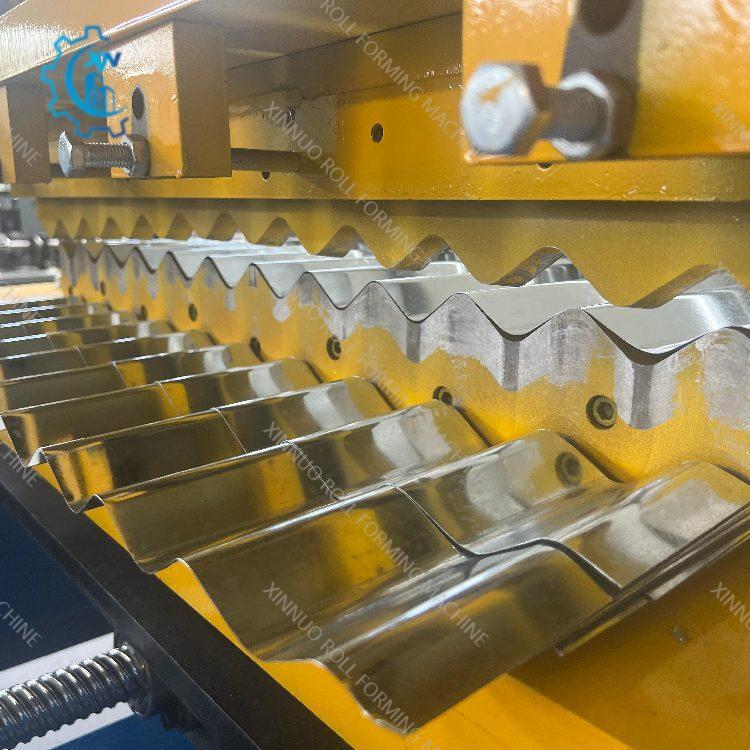

Every component of the machine is carefully designed for durability and precision. The main frame is built from 350 H-beam steel, providing exceptional rigidity and long-term stability during continuous operation. The forming rollers, made from 45# high-grade steel and polished with hard chrome coating, ensure perfect corrugation and minimal wear over time.

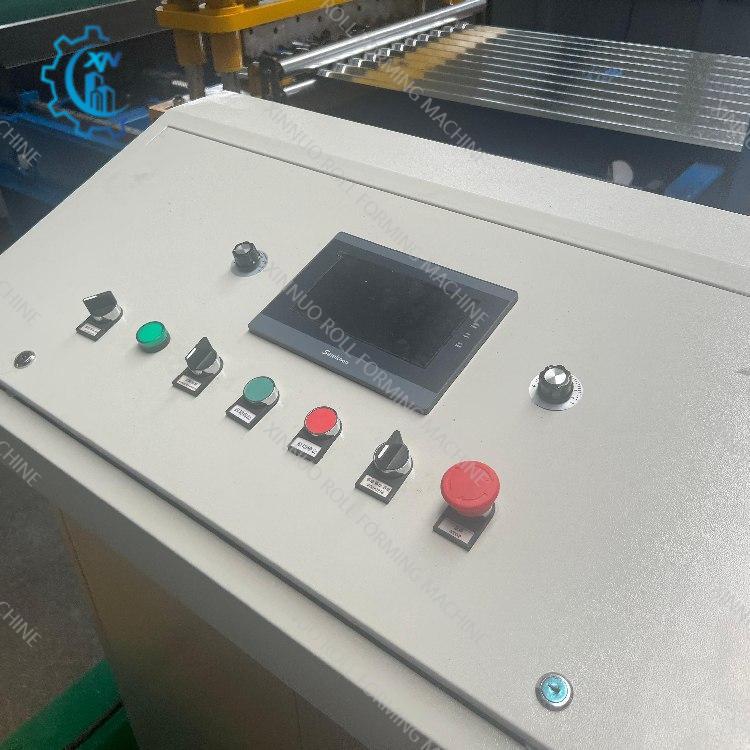

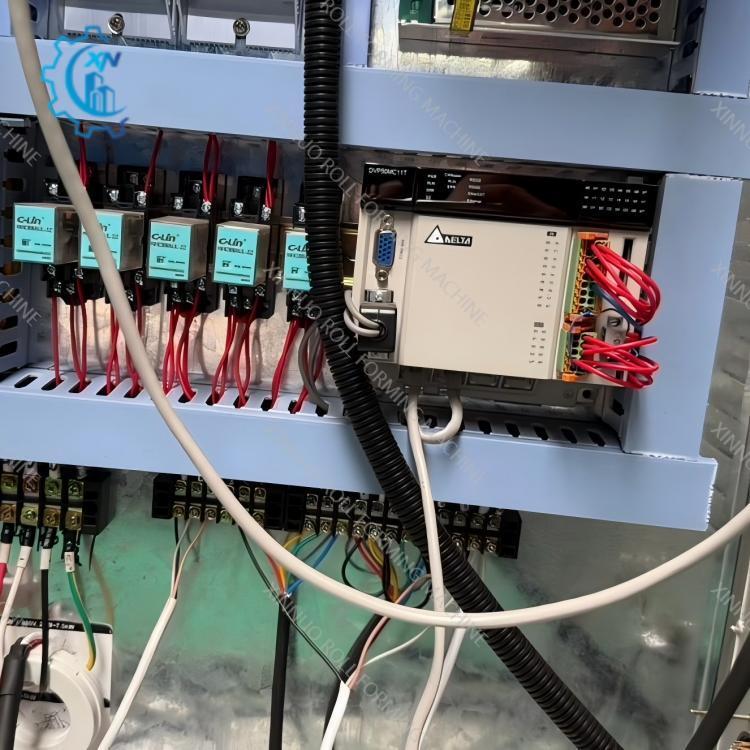

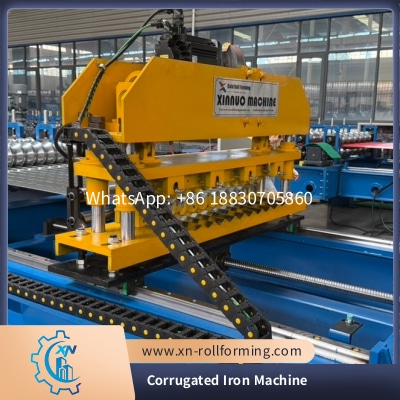

The driving shafts (70 mm diameter) and high-torque motor system deliver reliable forming power, while the hydraulic cutting unit ensures clean, burr-free cuts for every sheet. The use of PLC and touch-screen control systems allows operators to monitor, adjust, and automate the production process with ease and accuracy.

Precision Forming for Modern Roofing

Corrugated iron sheets produced by this machine are known for their structural strength, lightweight design, and superior resistance to harsh weather. The uniform wave pattern not only enhances the sheet’s load-bearing capacity but also adds aesthetic appeal to any building structure.

Whether used for residential roofing, warehouse cladding, farm structures, or prefabricated houses, the corrugated sheets provide a cost-effective and long-lasting solution. The machine’s forming accuracy ensures easy sheet alignment during installation, reducing material waste and labor time.

Key Advantages

• High-speed operation with stable profile accuracy

• Automatic cutting and stacking for continuous production

• Strong and durable structure for long-term industrial use

• Low maintenance requirement, thanks to high-quality materials

• Customizable sheet width and corrugation profile to suit regional standards

Smart Investment for Growing Businesses

The Corrugated Iron Machine is ideal for roofing material manufacturers seeking to expand their product range or upgrade to modern, automated forming systems. It reduces production costs, increases output efficiency, and enhances product quality—making it a smart investment with a quick return.

Backed by Xinnuo Roll Forming Machine Co., Ltd., every unit undergoes comprehensive testing before delivery, ensuring reliability and long service life. With global installation, training, and after-sales support, Xinnuo provides manufacturers with everything needed to achieve high-volume, high-quality production.

Conclusion

Combining precision engineering, high-speed automation, and robust construction, the Corrugated Iron Machine delivers outstanding performance and reliability. It is the perfect solution for manufacturers aiming to produce world-class corrugated roofing sheets and strengthen their presence in the international construction materials market.
