Trapezoidal Sheet Roll Forming Machine

Trapezoidal Sheet Roll Forming Machine – Precision Technology for Modern Roofing and Cladding Production

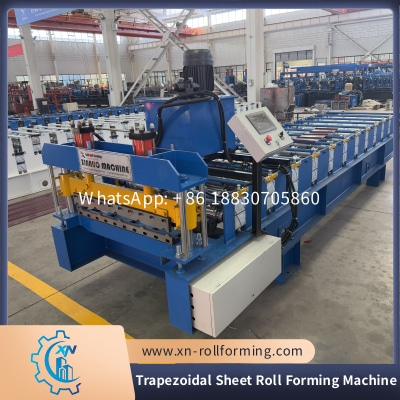

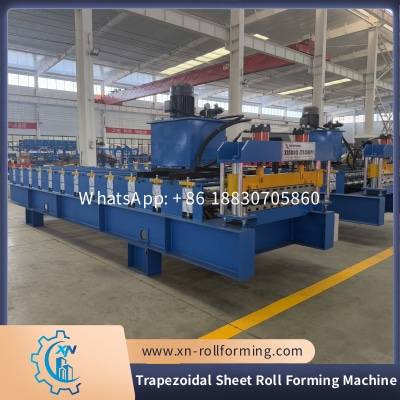

The Trapezoidal Sheet Roll Forming Machine is an advanced, fully automatic metal forming system engineered to produce high-quality trapezoidal roofing and wall panels widely used in industrial, commercial, and residential construction. Designed with a perfect balance of durability, speed, and precision, this machine provides a professional solution for manufacturers seeking to produce panels that combine visual appeal with structural performance. Its innovative forming system ensures accurate panel geometry and a superior surface finish, meeting the demanding standards of global roofing markets.

Advanced Structure and Durable Build Quality

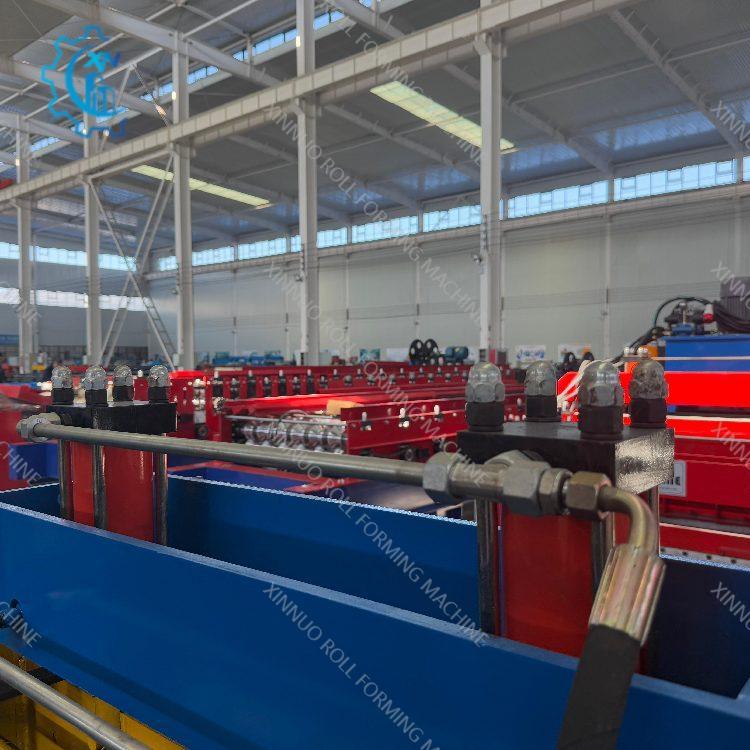

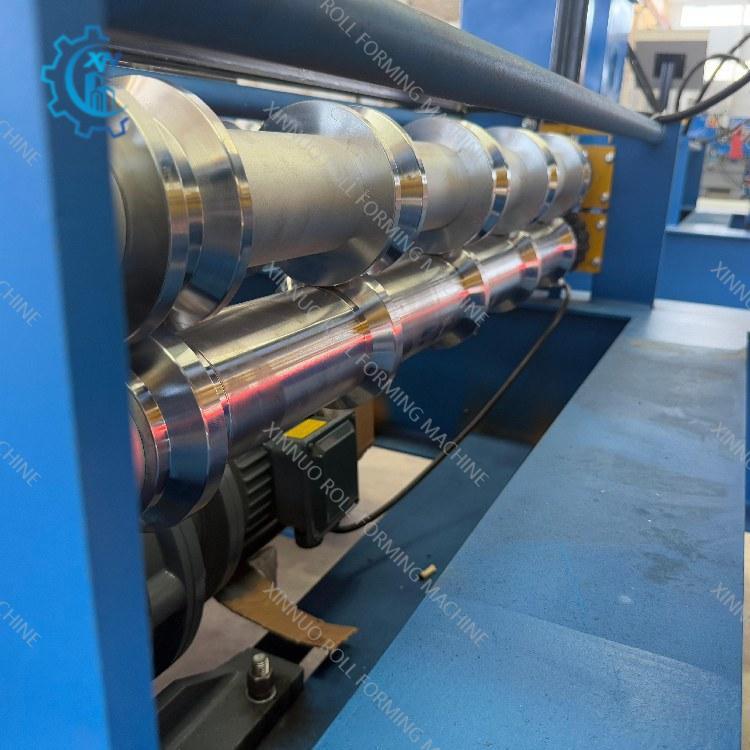

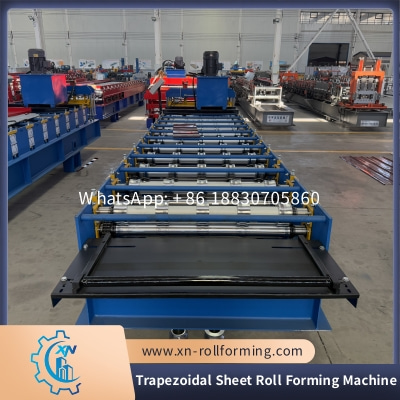

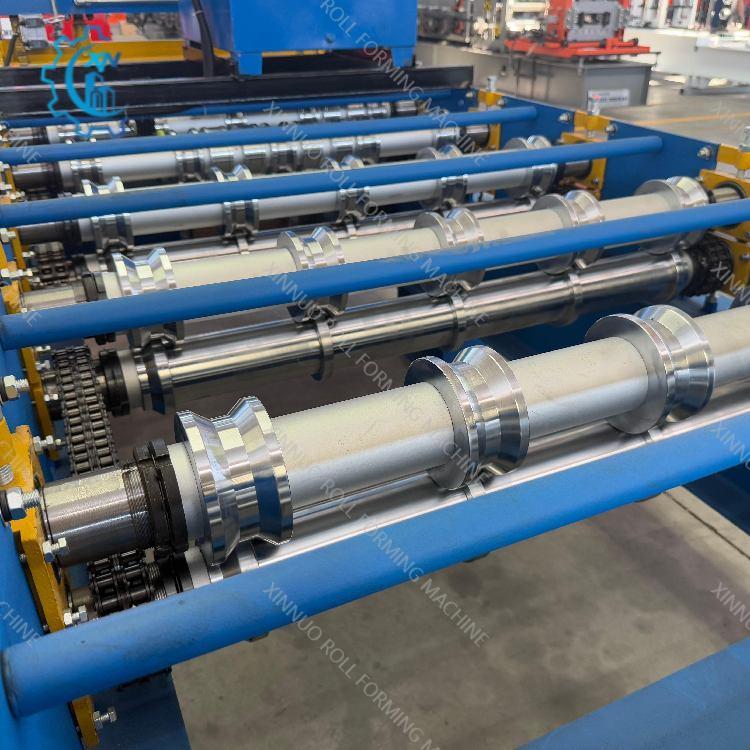

Built on a heavy-duty frame, the Trapezoidal Sheet Roll Forming Machine ensures exceptional stability and vibration resistance during continuous operation. The machine body is constructed from 350H structural steel, and its side walls are reinforced with 16 mm thick plates, delivering robust strength even under high production loads. The 45# precision-machined steel rollers are hard-chromed to resist wear and corrosion, guaranteeing long service life and flawless sheet forming. A 70 mm solid shaft supports consistent pressure distribution, ensuring accurate shaping of each trapezoidal rib with sharp definition and dimensional stability.

High Efficiency and Smart Control System

Equipped with a fully automatic PLC control system, the machine manages all key functions including coil feeding, forming, cutting, and stacking. Operators can set parameters such as sheet length, production quantity, and speed through a user-friendly touchscreen interface. The encoder and hydraulic cutting system synchronize perfectly, ensuring precise length control and smooth, burr-free edges.

With a forming speed of 10–16 meters per minute, the Trapezoidal Sheet Roll Forming Machine significantly boosts productivity while maintaining high accuracy. Its 3 + 3 kW driving motor and energy-efficient hydraulic system provide stable power delivery and minimal downtime, helping operators meet high-volume production targets effortlessly.

Versatile Material Handling and Custom Profiles

This roll forming machine is suitable for a wide range of materials including color steel plates, galvanized sheets, galvalume, and aluminum coils with thicknesses between 0.3–0.8 mm. The standard feeding width is around 1000 mm, but it can be customized based on specific profile requirements. Xinnuo’s engineering team offers flexible customization options—whether you require a different rib height, pitch, or shape, the forming rollers can be designed to produce local or project-specific trapezoidal profiles.

Superior Output Quality and Applications

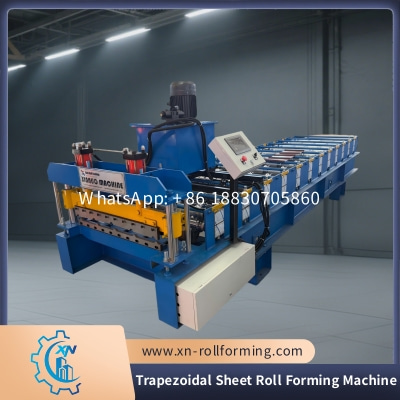

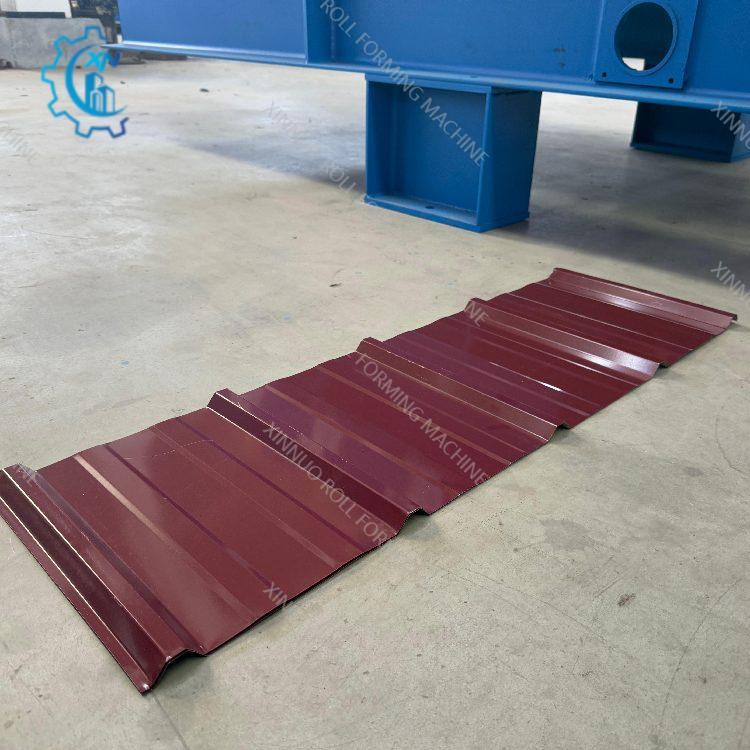

Panels produced by this machine feature clean, symmetrical trapezoidal ribs that enhance both appearance and functionality. The rib geometry provides excellent water drainage, strong load-bearing capacity, and resistance to deformation, making these sheets ideal for factories, warehouses, schools, shopping centers, farm buildings, and residential roofs. The finished panels not only offer weather protection and insulation but also add modern architectural appeal to any structure.

Energy Efficiency and Operational Reliability

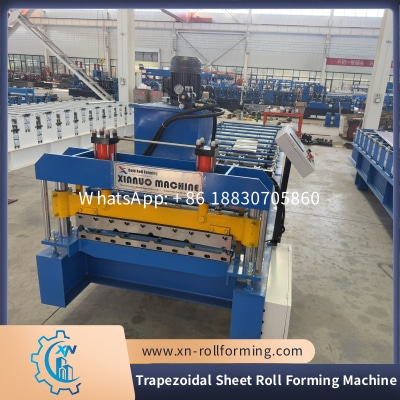

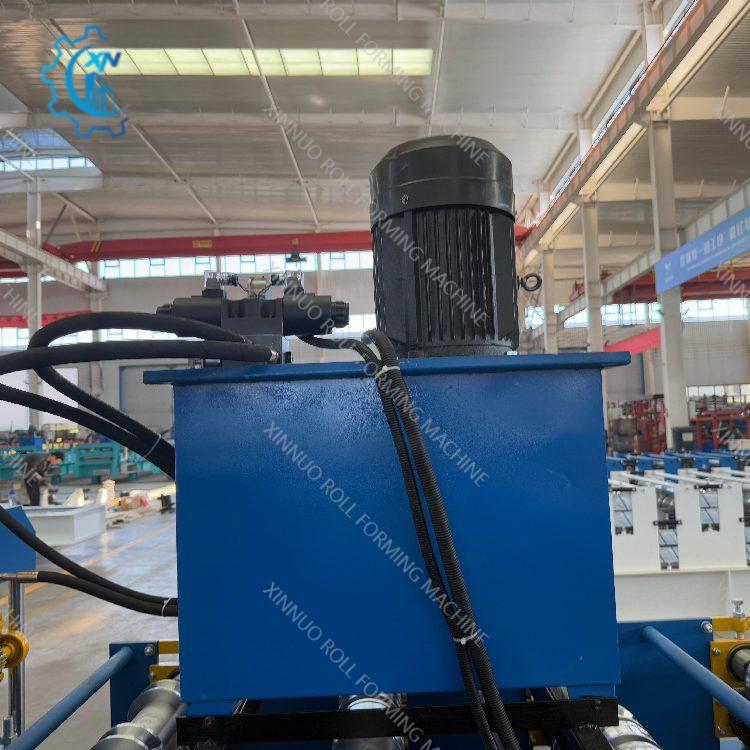

Every component—from the chain drive system to the hydraulic shearing unit—is designed for minimal energy consumption and long-term reliability. The machine’s compact footprint and low maintenance design help manufacturers lower operational costs without compromising on performance. Additionally, the optional decoiler and automatic stacker system can be integrated for a continuous and fully automated production line, further enhancing workflow efficiency.

Your Trusted Partner for Roofing Sheet Production

Investing in the Trapezoidal Sheet Roll Forming Machine means investing in long-term value. It embodies a perfect blend of advanced automation, superior mechanical engineering, and user-centered operation. Whether you are starting a new roofing panel business or upgrading an existing line, this machine ensures a fast return on investment by delivering consistent, high-quality sheets with minimal labor and downtime.
