Xinnuo CZ Roll Forming Machine: Versatile Excellence in Purlin Production
Xinnuo’s CZ Roll Forming Machine is a state-of-the-art solution designed for automatic CZ purlin production, serving as a cornerstone in the manufacturing of critical structural components for construction, industrial, and commercial projects. This machine combines precision, flexibility, and durability to meet the diverse needs of modern steel fabrication.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|

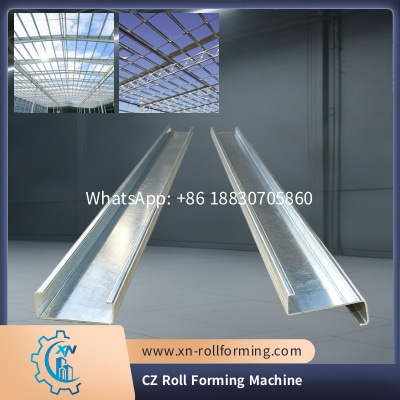

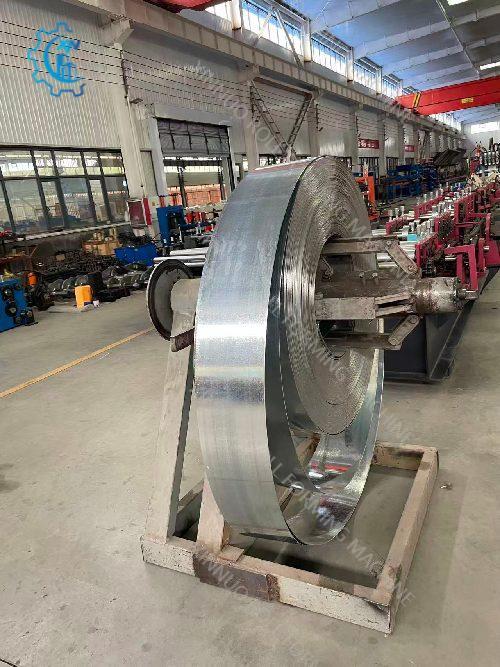

One of its key strengths is adaptability in material handling. The width of the feeding material can be adjusted according to specific requirements, allowing for the production of C and Z purlins in a wide range of sizes. This flexibility ensures compatibility with various architectural designs, from small-scale buildings to large industrial complexes, making it a versatile choice for manufacturers.

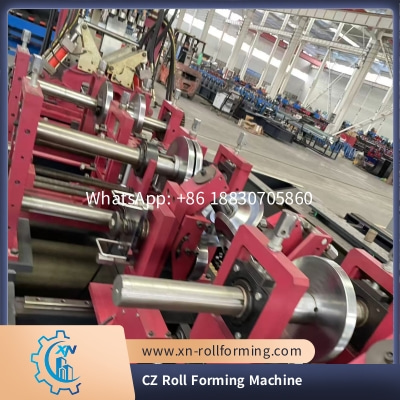

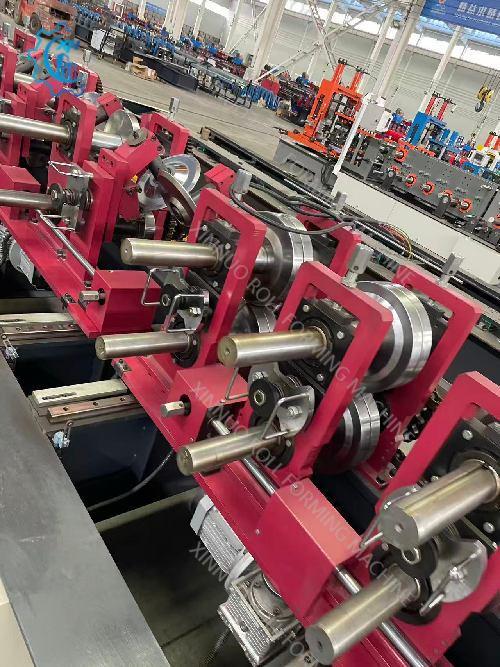

Equipped with 11-18 roller stations—with the option for customization based on customer needs—the machine ensures precise and consistent forming of both C and Z profiles. The rollers, crafted from 45# steel, offer exceptional wear resistance, maintaining their precision even after prolonged use. Supported by shafts with a diameter of 70-80mm, they operate smoothly with minimal vibration, further enhancing the accuracy of the formed purlins.
The machine can process materials with a thickness ranging from 1.5mm to 3mm, and this range can be adjusted to meet specific project demands, providing versatility for both light and heavy-duty applications. With a productivity rate of 15-20 m/min, it enables efficient mass production, helping manufacturers meet tight deadlines and increase their output without compromising on quality.
Structural integrity is a defining feature of this machine. The main forming unit features a wall thickness of 12-18mm steel plate, while the main body is constructed from 300-400mm H steel. This robust build, combined with a weight of approximately 9.8T, ensures stability during high-speed operation, reducing the risk of deformation and extending the machine’s service life. The 22kw motor provides ample power to drive the forming process efficiently, ensuring consistent performance even under heavy workloads.
The machine operates on a standard voltage of 380V 50Hz 3phases, but it can be customized to suit different regional voltage requirements, making it suitable for use in various countries around the world. Xinnuo also offers comprehensive customization services, allowing customers to tailor the machine’s specifications—from roller configurations to material handling capabilities—to their unique production needs.
In summary, Xinnuo’s CZ Roll Forming Machine stands out for its versatility, precision, efficiency, and durability, making it an ideal investment for manufacturers looking to produce high-quality C and Z purlins. It is more than just a piece of equipment; it is a reliable partner in creating strong, durable structures that form the backbone of modern construction.
