Xinnuo CZ Machine: Advanced Equipment for Automatic CZ Purlin Production

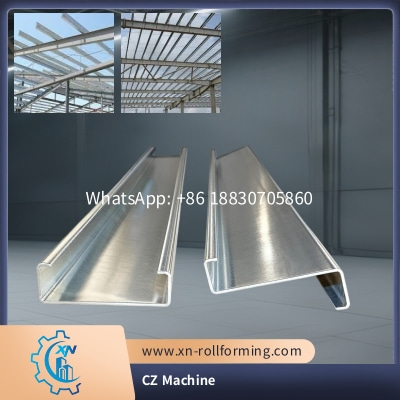

Xinnuo’s CZ Machine is a cutting-edge solution tailored for automatic CZ purlin roll forming, designed to meet the high demands of modern construction and steel structure manufacturing. This machine combines innovative technology with robust engineering to deliver consistent, high-quality C and Z purlins, making it an indispensable asset for fabricators and construction material producers.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is at the core of this machine’s design. The width of the feeding material can be adjusted precisely according to your specific requirements, allowing for the production of C and Z purlins in a wide range of sizes. This adaptability ensures that the machine can cater to diverse project needs, whether for small-scale residential buildings or large industrial complexes.

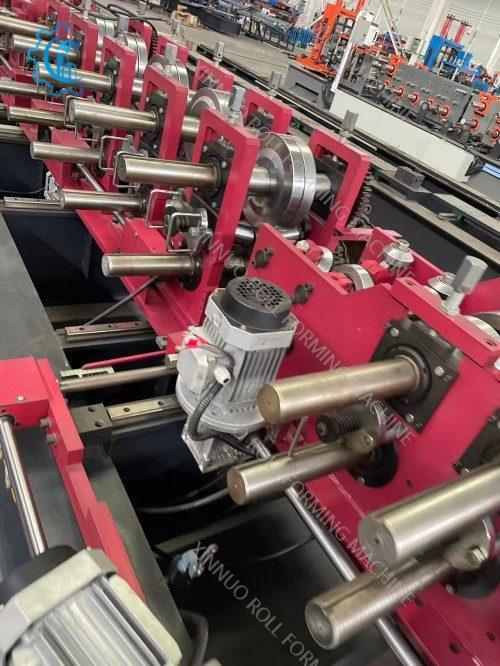

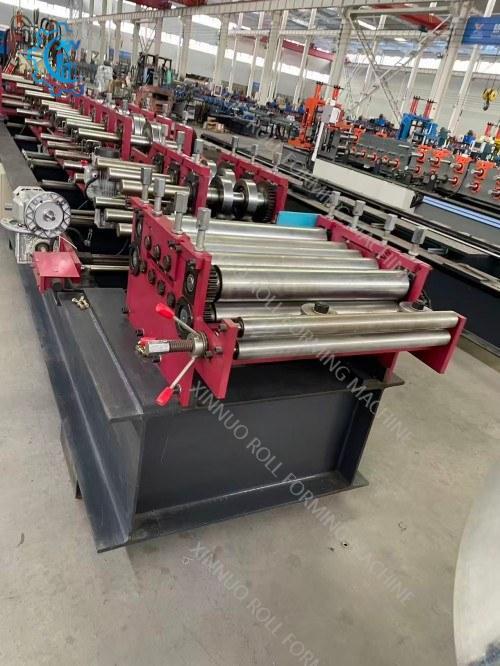

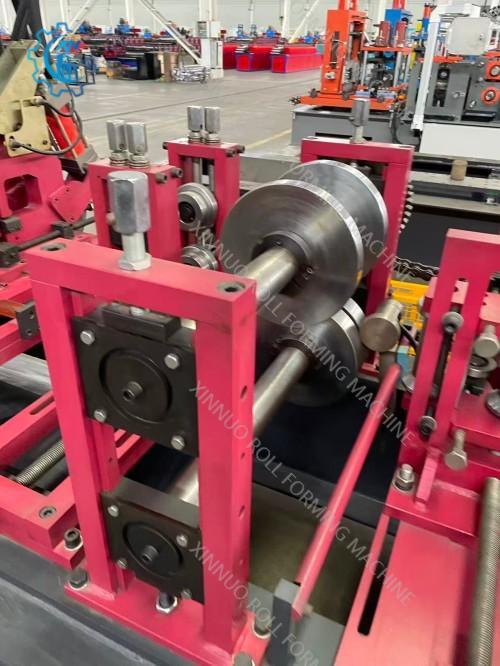

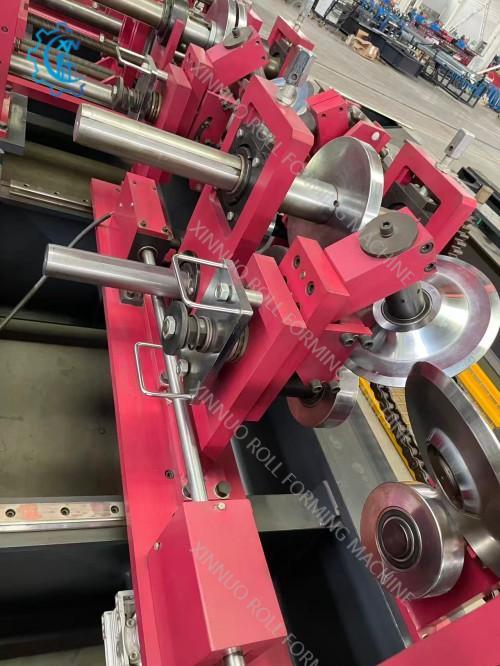

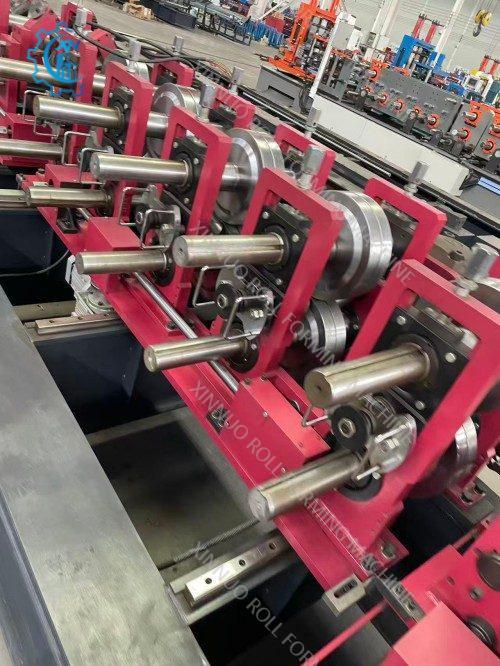

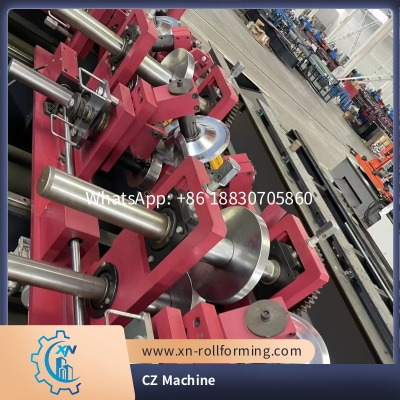

Equipped with 11-18 roller stations, and with the option for customization based on customer requirements, the CZ Machine ensures precise and uniform forming of both C and Z profiles. The rollers, crafted from high-quality 45# steel, offer exceptional wear resistance, ensuring long-term performance and maintaining the accuracy of the formed purlins even after prolonged use. Supported by shafts with a diameter of 70-80mm, the rollers operate smoothly with minimal vibration, further enhancing the precision of the forming process.
The machine can handle feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can be adjusted to meet specific needs, providing versatility for different material specifications. With a productivity rate of 15-20 m/min, it enables efficient mass production, helping manufacturers meet tight deadlines and increase their overall output without compromising on quality.
Structural durability is a key feature of the CZ Machine. The main forming machine features a wall thickness of 12-18mm steel plate, and its main body is constructed from 300-400mm H steel, ensuring exceptional rigidity and stability. With a weight of approximately 9.8T, the machine operates stably even at high speeds, reducing the risk of deformation and extending its service life. The 22kw motor provides ample power to drive the machine efficiently, ensuring smooth and consistent operation throughout the production process.
The machine operates on a standard voltage of 380V 50Hz 3phases, but it can be customized to suit different regional voltage requirements, making it suitable for use in various countries and regions worldwide. Furthermore, Xinnuo offers comprehensive customization services based on customer needs, covering all aspects of the machine to ensure it perfectly aligns with specific production requirements.
In conclusion, Xinnuo’s CZ Machine stands out for its flexibility, precision, efficiency, and durability, making it an ideal choice for manufacturers engaged in the production of automatic CZ purlins. It is more than just a machine; it is a reliable partner in creating high-quality structural components that form the foundation of strong and durable buildings.
