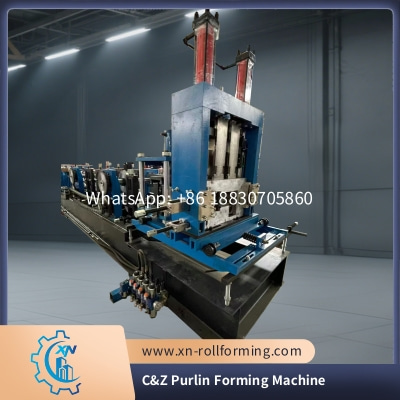

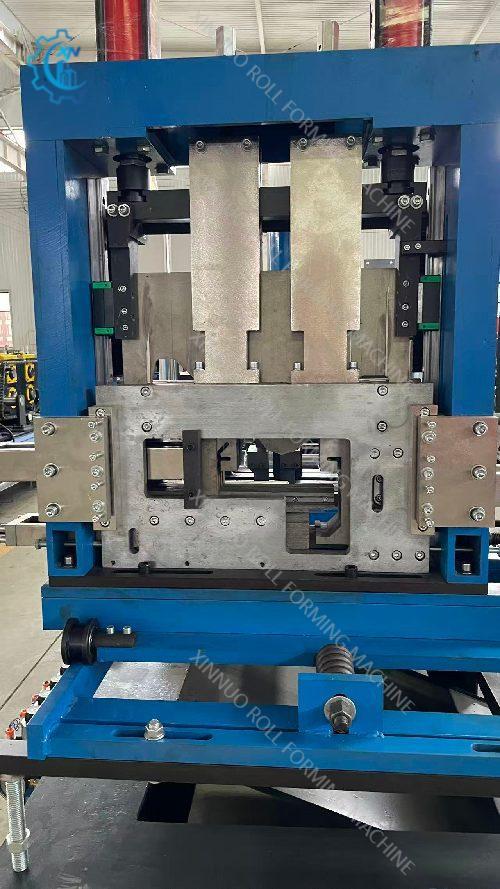

Xinnuo’s C&Z Purlin Forming Machine stands as a cornerstone in structural steel manufacturing, engineered to produce high-strength C and Z-shaped purlins—essential components for roofs, walls, and mezzanines in industrial, commercial, and agricultural buildings. This machine blends flexibility, speed, and durability to meet the diverse demands of modern construction projects.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Designed for adaptability, the machine accommodates feeding material widths tailored to your specific requirements, eliminating limitations on purlin size. It processes material thicknesses from 1.5mm to 3mm, with customization options to handle unique gauge needs, ensuring compatibility with light to heavy-duty structural designs. The 11-18 roller stations (adjustable to project demands) deliver gradual, precise forming, ensuring each purlin maintains consistent dimensions and structural integrity—critical for load-bearing applications.

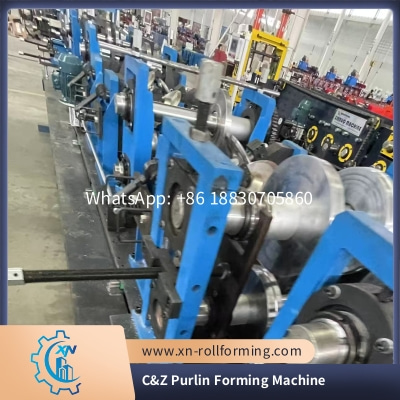

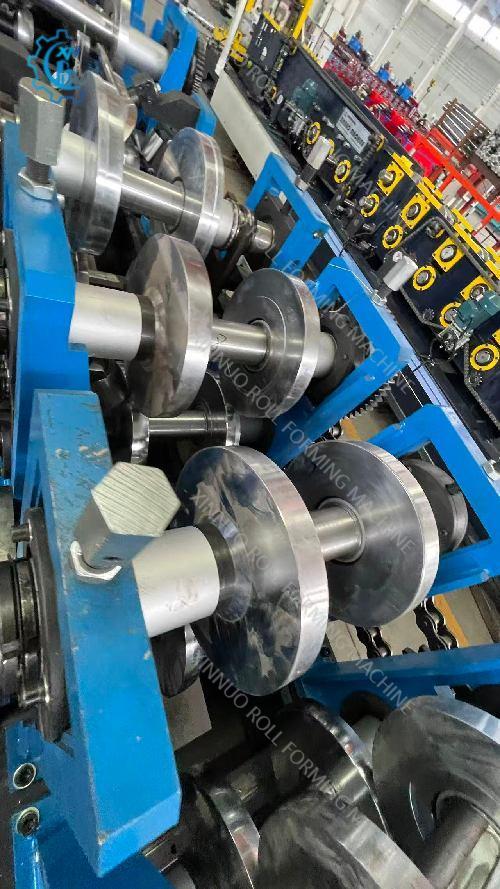

Productivity is a key strength, with a processing speed of 15-20 meters per minute, enabling high-volume production to meet tight construction deadlines. The rollers, crafted from 45# steel, offer exceptional wear resistance, preserving precision even after prolonged use. Supported by 70-80mm diameter shafts, they minimize vibration during operation, further enhancing forming accuracy.

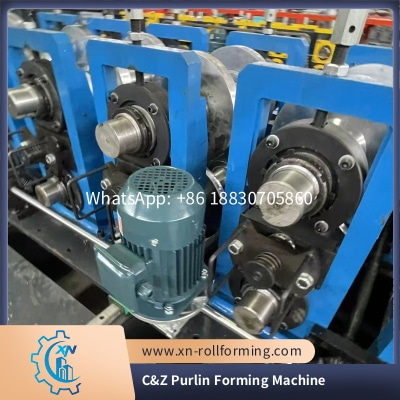

Built for longevity, the machine’s main frame features 12-18mm thick steel plates, while the core structure uses 300-400mm H-steel—materials chosen for rigidity and resistance to deformation under heavy loads. A 22kw motor provides robust power to handle thick-gauge materials effortlessly, complementing the machine’s 9.8-ton weight, which underscores its stability during high-speed operation.
Global usability is ensured with a standard 380V 50Hz 3-phase power system, customizable to regional voltage requirements, making it suitable for facilities worldwide. Xinnuo prioritizes customization, offering tailored roller configurations, material handling capacities, and power setups to align with unique production needs—whether for standard warehouse purlins or specialized architectural profiles.
Ideal for steel fabricators, prefab building manufacturers, and construction material suppliers, this machine streamlines purlin production while maintaining uncompromising quality. Xinnuo’s C&Z Purlin Forming Machine isn’t just equipment—it’s a reliable partner in constructing resilient, efficient structures that stand the test of time.
