Xinnuo Purlin Rolling Machine: Precision Rolling for CZ Purlins
Xinnuo’s Purlin Rolling Machine is a specialized industrial solution designed to produce high-quality C and Z purlins through advanced rolling technology. As a cornerstone of structural steel manufacturing, this machine combines robust engineering with flexible performance, making it indispensable for fabricators and construction material producers seeking efficient, consistent purlin production.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
At its core, the machine excels in versatility, accommodating feeding material widths tailored to your specific requirements. This adaptability ensures it can produce purlins of various sizes, from standard dimensions to custom profiles, meeting the unique needs of diverse construction projects. It processes material thicknesses ranging from 1.5mm to 3mm, with customization options available to handle specialized gauge requirements, ensuring compatibility with both light and heavy-duty structural designs.

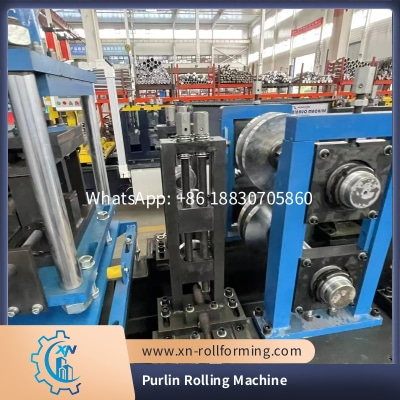

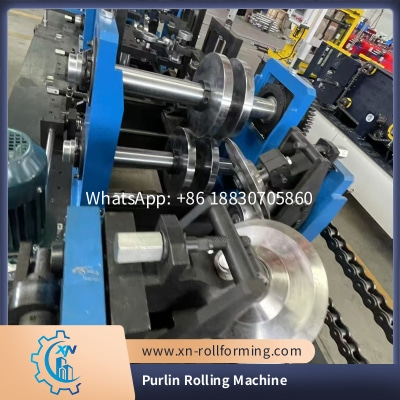

The rolling process is powered by 11-18 roller stations, a configuration that can be adjusted or expanded based on customer needs. This multi-stage rolling system ensures gradual, precise forming of C and Z shapes, eliminating stress concentrations and maintaining uniform dimensions across each purlin. The rollers themselves are crafted from 45# steel, chosen for its exceptional wear resistance and ability to retain shape under continuous operation, guaranteeing long-term precision. Supported by 70-80mm diameter shafts, the rollers minimize vibration during high-speed production, further enhancing forming accuracy.
Productivity is a standout feature, with the machine operating at a rate of 15-20 meters per minute. This high throughput allows manufacturers to meet large-volume orders without compromising quality, making it ideal for time-sensitive construction projects. A 22kw motor delivers reliable power to drive the rolling process, ensuring consistent performance even when handling thicker materials.
Durability is built into the machine’s structure. The main forming unit features 12-18mm thick steel plates, while the core framework uses 300-400mm H-steel, providing exceptional rigidity and resistance to deformation. With a total weight of approximately 9.8 tons, the machine remains stable during operation, preserving precision and extending service life.
Global usability is ensured by a standard 380V 50Hz 3-phase power system, which can be customized to match regional voltage requirements, allowing seamless integration into production facilities worldwide. Xinnuo prioritizes customization, offering tailored roller configurations, material handling capacities, and power setups to align with unique production demands.
Whether producing purlins for warehouses, industrial plants, or commercial buildings, Xinnuo’s Purlin Rolling Machine delivers the precision, efficiency, and reliability needed to elevate your structural steel production. It’s more than equipment—it’s a strategic investment in consistent quality and operational excellence.
