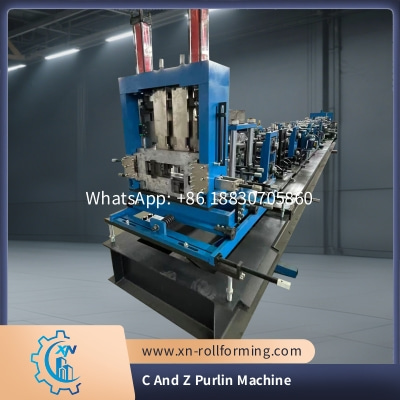

Xinnuo C And Z Purlin Machine: Reliable Equipment for Structural Purlins
Xinnuo’s C And Z Purlin Machine is a high-performance piece of equipment dedicated to manufacturing C-shaped and Z-shaped purlins, which are essential structural components in various construction projects. This machine integrates advanced technology and robust design to deliver efficient and precise production, meeting the strict requirements of modern building structures.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
One of the key advantages of this machine is its exceptional flexibility. The width of the feeding material can be adjusted according to your specific needs, allowing for the production of purlins of different sizes to diverse construction designs. The roller station configuration, with 11-18 rows as standard and customizable options, ensures that the forming process is tailored to the unique characteristics of C and Z purlins, resulting in accurate and consistent profiles.
In terms of processing capabilities, the machine handles feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can be further customized to accommodate special requirements. This versatility makes it suitable for producing purlins used in a wide spectrum of applications, from light-duty industrial sheds to heavy-duty commercial buildings. With a productivity of 15-20 m/min, it can efficiently meet large-volume production demands, helping to shorten project timelines.
The machine’s durability is guaranteed by its high-quality components. The rollers are made from 45# steel, known for its excellent strength and wear resistance, ensuring long-term stable operation even under continuous use. The shafts, with a diameter of 70-80mm, provide strong support to the rollers, minimizing deformation during the forming process and maintaining precision.
Structurally, the main forming machine features a wall thickness of 12-18mm steel plate, and its main body is constructed from 300-400mm H steel. This robust build ensures the machine’s stability and rigidity during high-speed operation, preventing vibrations that could affect the quality of the purlins. Powered by a 22kw motor, the machine delivers sufficient power to handle thick materials with ease, ensuring smooth and efficient production.
Adaptability to different working environments is another highlight. The standard voltage is 380V 50Hz 3phases, but it can be customized to meet specific regional or customer requirements, making it suitable for use in various countries and regions. With a weight of about 9.8T, the machine is solidly built to withstand the rigors of industrial production.
Moreover, Xinnuo offers extensive customization options based on customer needs. Whether it’s adjusting the roller station, modifying the material thickness range, or adapting to special voltage requirements, our team works closely with clients to ensure the machine perfectly fits their production processes.
In conclusion, Xinnuo’s C And Z Purlin Machine is a reliable and efficient choice for manufacturers looking to produce high-quality C and Z purlins. Its flexibility, precision, durability, and customization options make it an indispensable piece of equipment in the construction material production industry.
