Xinnuo Purlin Machine: Reliable Solution for Automatic CZ Purlin Production
Xinnuo’s Purlin Machine is a high-performance equipment engineered specifically for automatic CZ purlin roll forming, serving as a vital asset in the production of essential structural components for construction, industrial, and commercial projects. This machine integrates advanced technology with robust construction to deliver consistent, high-quality results, making it a top choice for manufacturers seeking efficiency and reliability.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
One of the key advantages of this machine is its remarkable flexibility. The width of the feeding material can be adjusted precisely according to your specific requirements, allowing for the production of purlins in a wide range of sizes to meet diverse project needs. Whether you’re working on small-scale constructions or large industrial complexes, this adaptability ensures the machine can cater to your unique demands.

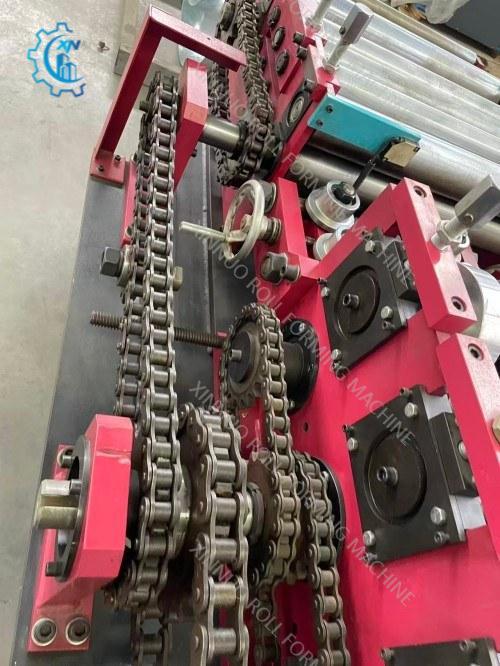

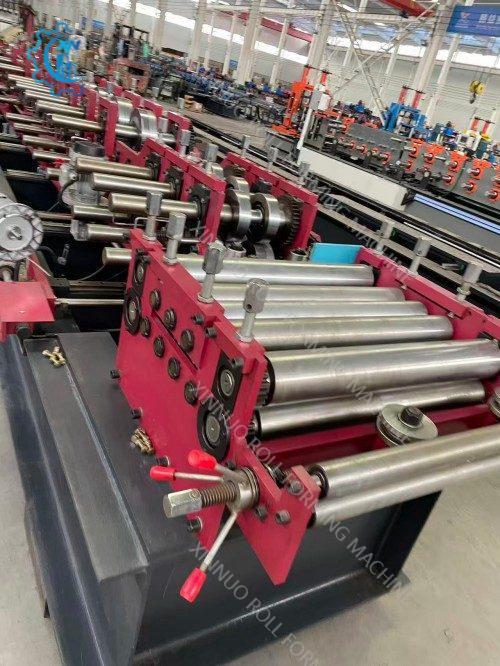

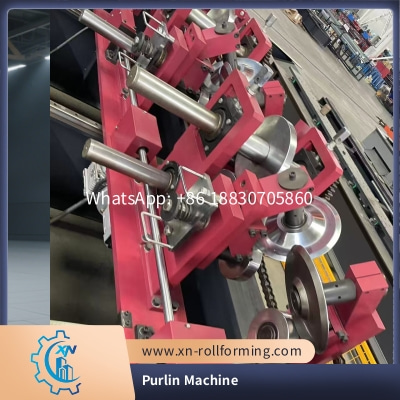

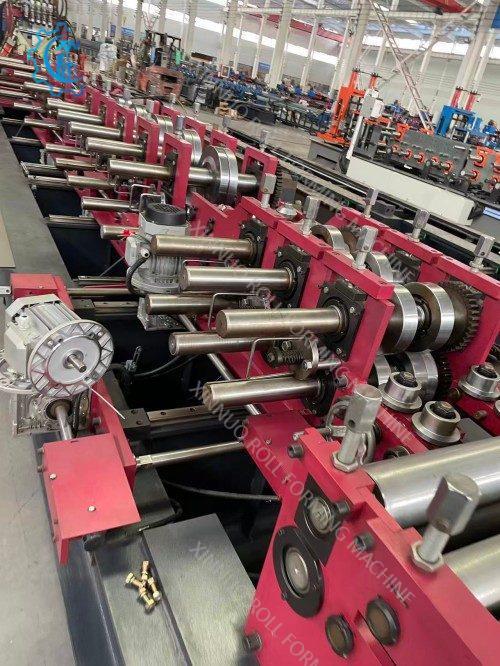

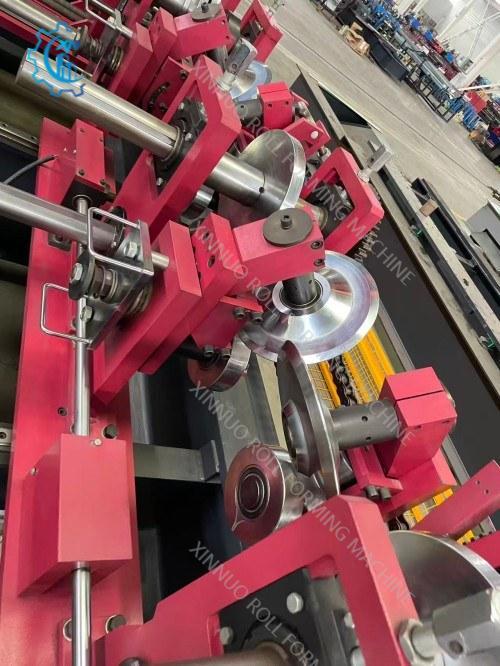

Equipped with 11-18 rows of roller stations, and with the option for customization based on customer requirements, the machine ensures precise and uniform forming of both C and Z purlins. This multi-stage rolling process guarantees that each product maintains accurate dimensions and structural integrity, which is crucial for ensuring the stability and safety of the final structures. The rollers are crafted from 45# steel, known for its exceptional durability and wear resistance, ensuring long-term performance even under continuous operation. Supported by shafts with a diameter of 70-80mm, the rollers operate smoothly and stably, minimizing vibrations and further enhancing forming precision.
The machine can handle feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can also be adjusted as per specific needs, providing versatility for different material specifications. With a productivity rate of 15-20 m/min, it enables efficient mass production, helping manufacturers meet tight deadlines and increase overall output without compromising on quality.
In terms of structural strength, the main forming machine boasts a wall thickness of 12-18mm steel plate, and its main body is constructed from 300-400mm H steel. This robust build, combined with a weight of approximately 9.8T, ensures the machine operates stably even at high speeds, reducing the risk of deformation and extending its service life. The 22kw motor provides ample power to drive the machine efficiently, ensuring smooth and consistent operation throughout the production process.
The machine operates on a voltage of 380V 50Hz 3phases as standard, but it can be customized to suit different regional voltage requirements, making it suitable for use in various countries and regions worldwide. Furthermore, Xinnuo offers comprehensive customization services based on customer needs, covering all aspects of the machine to ensure it perfectly aligns with specific production requirements.
In summary, Xinnuo’s Purlin Machine stands out for its flexibility, precision, efficiency, and durability, making it an indispensable asset for manufacturers engaged in the production of automatic CZ purlins. It is more than just a machine; it is a reliable partner in creating high-quality structural components that form the backbone of modern constructions.
