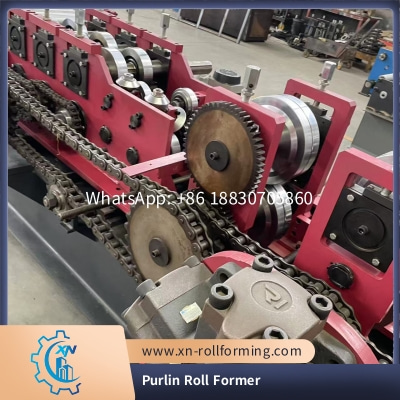

Xinnuo Purlin Roll Former: Automatic Excellence for CZ Purlin Production
Xinnuo’s Purlin Roll Former is a specialized equipment engineered for automatic CZ purlin roll forming, serving as a pivotal asset for manufacturers in the steel structure, construction, and prefabricated building sectors. This machine merges advanced rolling technology with robust design, delivering consistent, high-quality C and Z-shaped purlins—essential load-bearing components that reinforce roofs, walls, and frameworks in residential, commercial, and industrial projects globally.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is a core strength, starting with its customizable feeding material width. Tailored exactly to your project’s unique needs, this feature eliminates size constraints, enabling production of CZ purlins in diverse dimensions—from compact profiles for small-scale builds to larger options for industrial warehouses. It also handles feeding material thicknesses ranging from 1.5mm to 3mm, with further customization available to accommodate non-standard gauges, supporting both light and medium-duty structural applications.

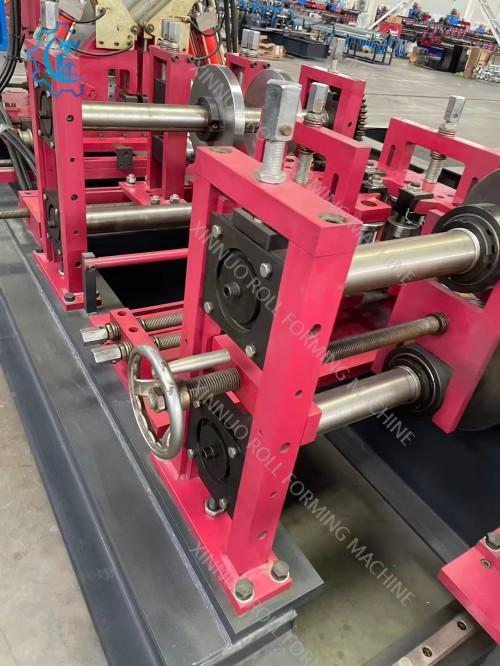

Precision in forming is guaranteed by its 11-18 roller stations, which can be expanded or adjusted based on customer requirements. This multi-stage rolling system ensures gradual, uniform shaping of CZ purlins, maintaining consistent dimensions and structural integrity that meet strict industry standards. The rollers, crafted from wear-resistant 45# steel, retain their precision even after prolonged high-volume operation, while 70-80mm diameter shafts minimize vibration during production—further enhancing accuracy and reducing material waste.
Efficiency stands out with a productivity rate of 15-20 meters per minute, allowing manufacturers to meet tight deadlines without compromising quality, whether handling batch orders or large-scale projects. Powering this performance is a 22kw main motor, which delivers stable, robust torque to handle thick-gauge materials smoothly, minimizing downtime and optimizing overall production workflows.
Structural durability ensures long-term reliability. The main forming unit features 12-18mm thick steel plates for enhanced rigidity, while the machine’s main body is constructed from 300-400mm H steel—materials chosen for their resistance to deformation under heavy loads. Weighing approximately 9.8 tons, the equipment maintains exceptional stability during high-speed operation, preventing shifts that could affect forming precision and extending its service life.
To adapt to global operations, the roll former runs on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical systems. Beyond power and dimensions, Xinnuo offers comprehensive customization across all parameters—from roller configurations to control settings—ensuring the machine fits seamlessly into your unique production setup.
Ideal for steel fabricators, construction material suppliers, and prefab manufacturers, Xinnuo’s Purlin Roll Former is more than equipment: it’s a partner in delivering consistent, high-quality CZ purlins. Its blend of flexibility, precision, efficiency, and durability makes it a smart investment for businesses aiming to elevate their production capabilities and stay competitive in the construction industry.
