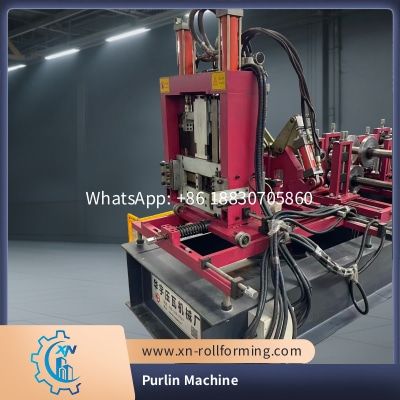

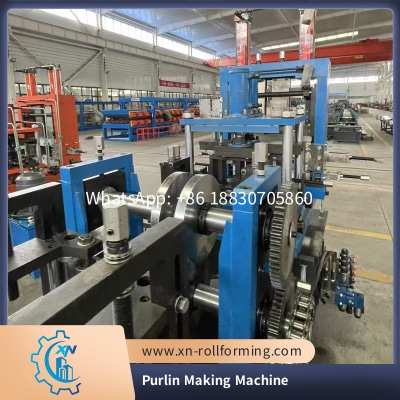

Xinnuo Purlin Making Machine: Crafting High-Quality Structural Purlins
Xinnuo’s Purlin Making Machine is a specialized piece of equipment designed to produce high-quality automatic CZ purlins, which are essential structural components in various construction projects. This machine combines advanced technology with robust construction to deliver efficient and precise purlin production, meeting the diverse needs of the building industry.
|
1
|
Suitable to process
|

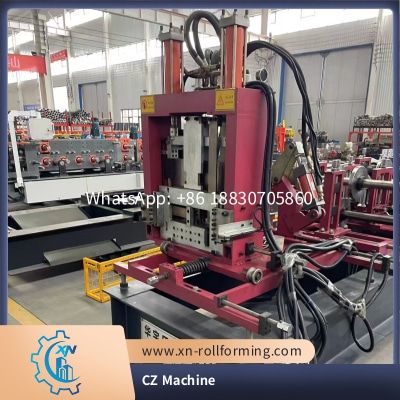

Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
One of the key advantages of this Purlin Making Machine is its exceptional flexibility. The width of the feeding material can be adjusted according to your specific requirements, allowing for the production of purlins in a wide range of sizes. This flexibility ensures that the machine can cater to different construction designs and project specifications, making it a versatile choice for manufacturers.
The machine is equipped with 11-18 rows of roller stations, and this configuration can be customized based on customer needs. This roller system plays a crucial role in shaping the material into the desired CZ purlin profiles with high precision. The rollers are made from 45# steel, a material known for its durability and wear resistance, ensuring long-term reliable performance even with continuous use. The shafts supporting the rollers have a diameter of 70-80mm, providing strong stability during the forming process and contributing to the overall accuracy of the purlins produced.
In terms of performance, the Purlin Making Machine can handle feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can also be adjusted to meet specific requirements. This capability allows for the production of purlins with varying levels of strength, suitable for different load-bearing applications. The machine operates at a productivity rate of 15-20 m/min, ensuring efficient production and the ability to meet tight project deadlines.
The main forming machine boasts a sturdy construction, with a wall thickness of 12-18mm steel plate and a main body made from 300-400mm H steel. This robust structure provides the necessary stability and rigidity to withstand the pressures of the forming process, ensuring consistent and accurate results. The machine is powered by a 22kw motor, delivering sufficient power to drive the forming operations smoothly and efficiently. With a weight of approximately 9.8T, the machine stands firmly in place during operation, minimizing vibrations and further enhancing production precision.
The Purlin Making Machine operates on a voltage of 380V 50Hz 3phases, but this can be modified to suit different regional power requirements, making it suitable for use in various countries and regions. Additionally, Xinnuo offers extensive customization options for this machine, allowing it to be tailored according to specific customer requirements. Whether it's adjusting the roller configuration, modifying the material thickness range, or adapting the voltage settings, the machine can be personalized to meet unique production needs.
In conclusion, Xinnuo’s Purlin Making Machine is a reliable and efficient solution for the production of high-quality CZ purlins. Its flexibility, precision, durability, and customizable features make it an ideal choice for manufacturers looking to meet the demands of the construction industry. With this machine, you can produce purlins that meet strict quality standards, ensuring the structural integrity and safety of the buildings they are used in.
