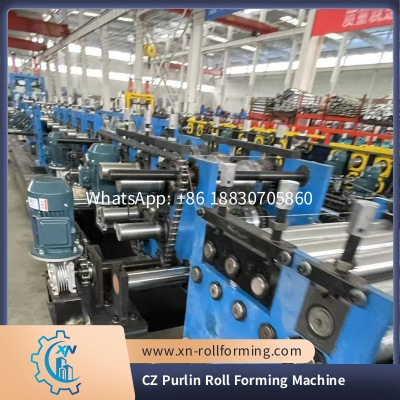

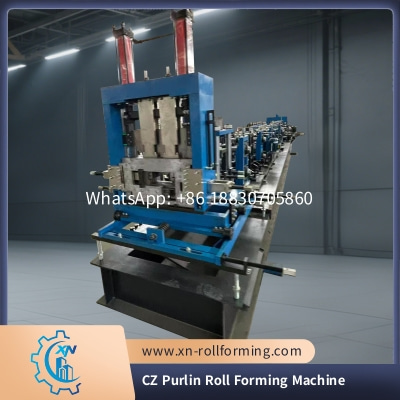

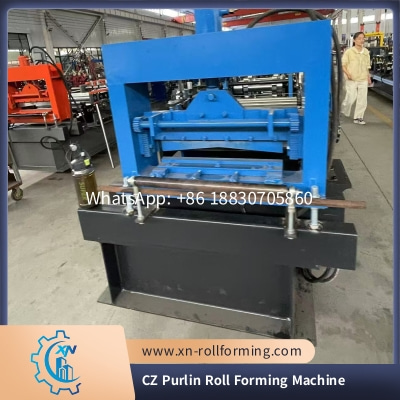

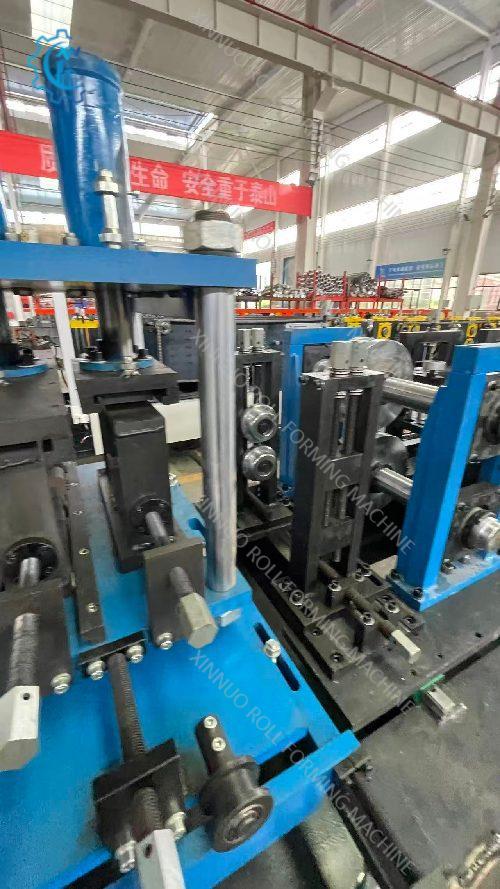

Xinnuo’s CZ Purlin Roll Forming Machine is a specialized solution engineered to produce high-quality C and Z purlins—critical structural components in industrial, commercial, and residential construction. Designed for efficiency and adaptability, this machine transforms metal sheets into precisely shaped purlins, ensuring durability and consistency in every production run.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
At its core, the machine excels in versatility. It accommodates feeding material widths tailored to your exact requirements, making it suitable for producing purlins of various sizes to match project specifications. The thickness of the material processed ranges from 1.5mm to 3mm, with customization options available to handle unique thickness needs—ideal for crafting purlins that balance strength and weight for different structural loads.
Performance is a key strength. Equipped with 11-18 roller stations (customizable to your production demands), the machine ensures gradual, precise forming of C and Z profiles, eliminating deformities and ensuring uniform dimensions. This precision, paired with a productivity rate of 15-20 meters per minute, guarantees high-volume output without compromising quality—perfect for meeting tight construction deadlines.

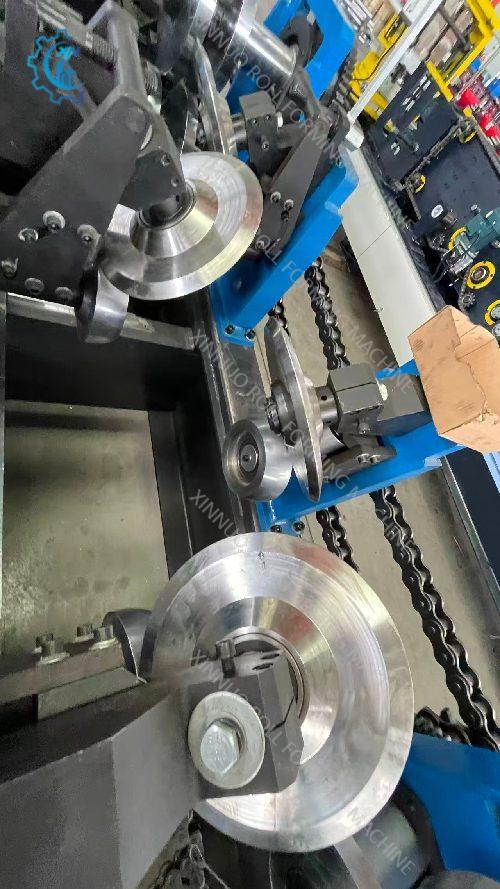

Durability is built into every component. Rollers are crafted from 45# steel, a material chosen for its wear resistance and ability to maintain shape even after prolonged use. The 70-80mm diameter shafts provide robust support, minimizing vibration during operation and enhancing forming accuracy. This combination of quality materials ensures the machine withstands the rigors of continuous industrial use.
Structural integrity defines the machine’s design. The main forming unit features 12-18mm thick steel plates for the walls, while the main body is constructed from 300-400mm H-steel—materials selected for their rigidity and load-bearing capacity. This sturdy framework prevents deflection during high-speed operation, preserving forming precision. Powered by a 22kw motor, the machine delivers consistent torque to handle thick-gauge materials effortlessly, while its 9.8-ton weight underscores its solid build.
Adaptability extends to global usability. Operating on 380V 50Hz 3-phase power as standard, it can be customized to match regional voltage requirements, ensuring seamless integration into production lines worldwide. Whether you’re based in Europe, Asia, or the Americas, the machine adapts to your facility’s power setup.
Customization is at the heart of its design. From adjusting roller stations to modifying material thickness ranges, Xinnuo works closely with you to tailor the machine to your specific needs—whether producing standard purlins for warehouses or specialized profiles for unique architectural projects.
Ideal for steel structure manufacturers, prefabricated building suppliers, and construction material producers, Xinnuo’s CZ Purlin Roll Forming Machine combines precision, durability, and flexibility to elevate your purlin production. It’s not just a machine—it’s a reliable partner in building structures that stand the test of time.
