Ibr Roof Sheet Making Machine Price

IBR Roof Sheet Making Machine Price

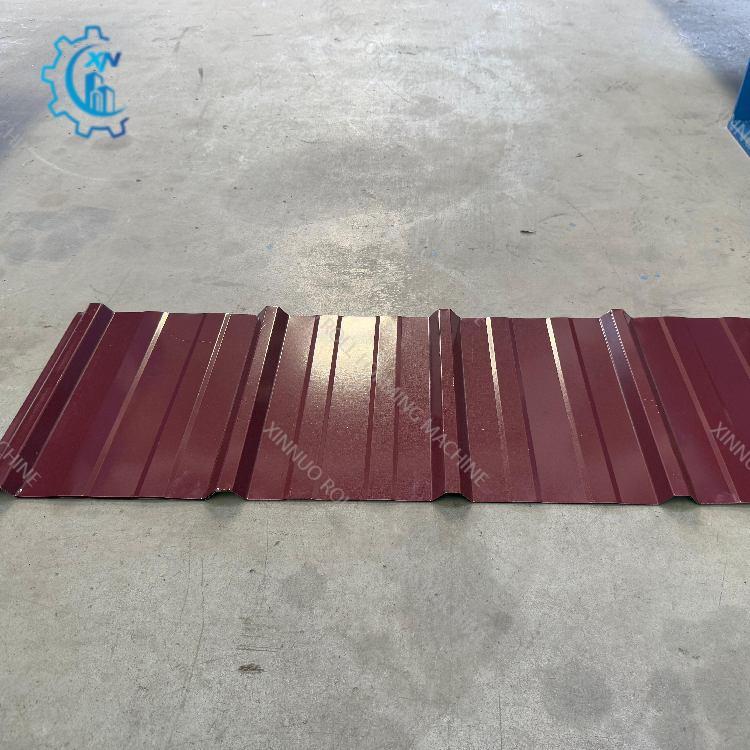

The IBR Roof Sheet Making Machine is a highly efficient, fully automatic production line designed for forming IBR and trapezoidal roofing panels from galvanized, pre-painted, or color-coated steel coils. Unlike ordinary corrugated machines, this system emphasizes precision forming, durability, and a flexible pricing structure that makes it ideal for both emerging and established roofing material producers. Built with advanced roll forming technology, it ensures consistent profiles, smooth cutting edges, and long-term performance with minimal maintenance.

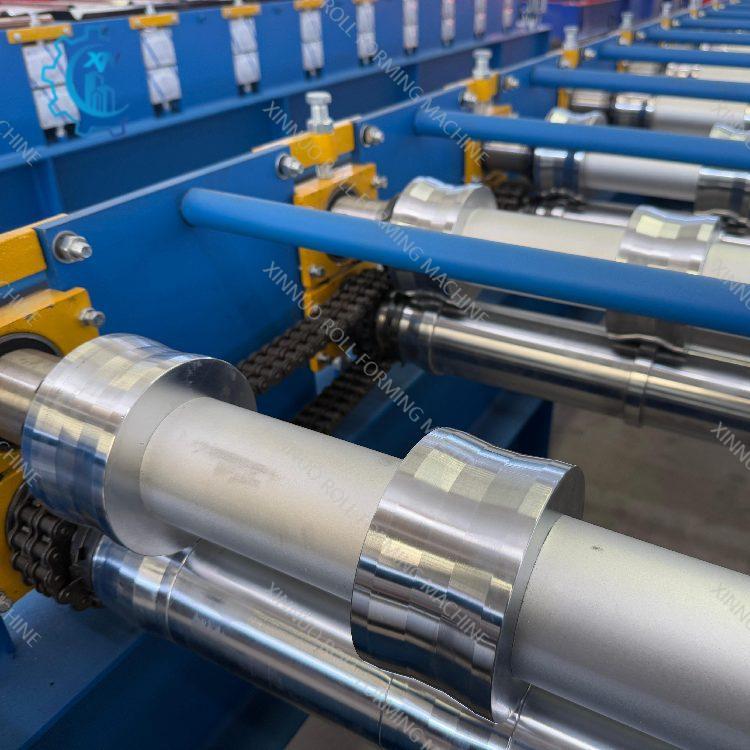

At the core of this machine’s design is its ability to handle diverse materials — including color steel plates, galvanized sheets, and aluminum coils — with exceptional accuracy. The feeding width, generally around 1000 mm, can be customized according to customer needs, while the processing thickness range of 0.3–0.8 mm allows for broad application in roofing, wall cladding, and structural panel production. The roll forming section, equipped with multiple precisely aligned roller stations made from 45# high-grade steel, ensures stable shaping and excellent surface finish without damaging the paint layer.

The structural frame of the IBR Roof Sheet Making Machine is manufactured from 350H steel and a wall thickness of 16 mm, providing rigidity and long-term stability even under continuous operation. The shafts, with a standard diameter of 70 mm, are supported by bearings that reduce friction and enhance rolling accuracy. Driven by a dual 3 kW motor system and controlled via a PLC automation unit, the machine achieves production speeds of 10–16 meters per minute — a significant advantage for manufacturers seeking high throughput with low operational costs.

One of the major strengths of the IBR Roof Sheet Making Machine lies in its cost-efficiency and customizable configuration. Depending on the level of automation, profile type, and included accessories such as decoiler, hydraulic cutter, or stacker, the machine price can vary significantly. This flexible pricing allows buyers to choose the right balance between functionality and investment.

Beyond affordability, the machine is engineered for long service life and easy maintenance. Its cutting blade, made of high-quality Cr12 mold steel after heat treatment, ensures precise cutting and extended durability. The modular design simplifies part replacement and adjustment, enabling operators to switch profiles or modify sheet lengths with minimal downtime. Furthermore, the PLC control system can be customized for different languages and operational preferences, making it user-friendly for global markets.

In summary, the IBR Roof Sheet Making Machine is not just a cost-effective roofing panel production solution — it is a smart investment in modern construction manufacturing. It combines accuracy, speed, and flexibility under a strong mechanical framework. Whether you are starting a new roofing sheet production line or upgrading an existing facility, this machine provides dependable performance and a competitive price advantage that helps you expand your business in a highly demanding market.
