Corrugated Roofing Machine

Corrugated Roofing Machine

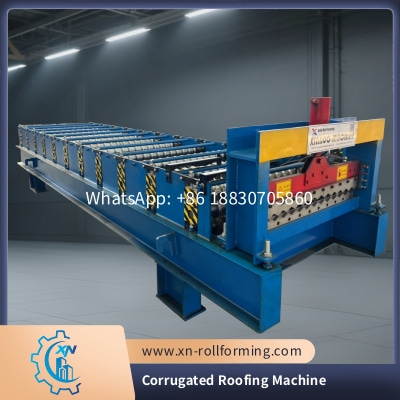

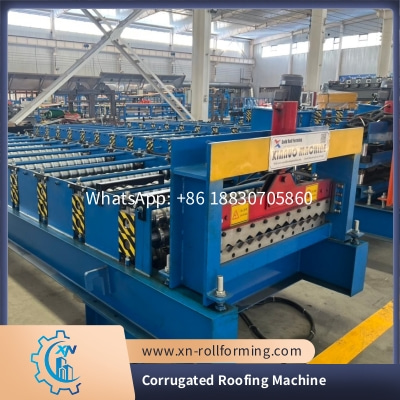

The Corrugated Roofing Machine is an advanced and efficient roll forming system designed specifically for manufacturing corrugated metal roofing sheets. With its high precision forming technology, robust construction, and automatic operation, this machine is ideal for producing large volumes of roofing sheets used in residential, commercial, and industrial buildings worldwide.

Advanced Design and Reliable Structure

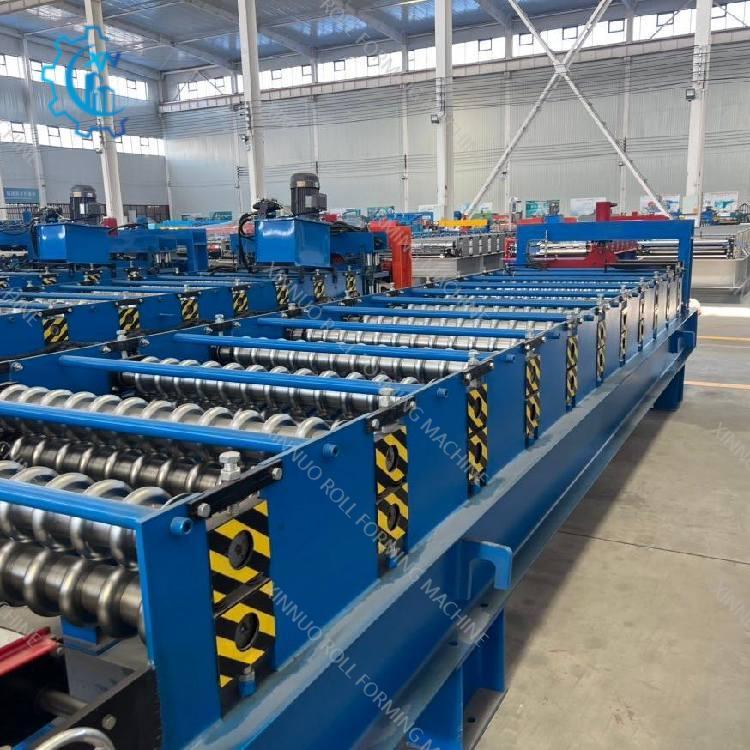

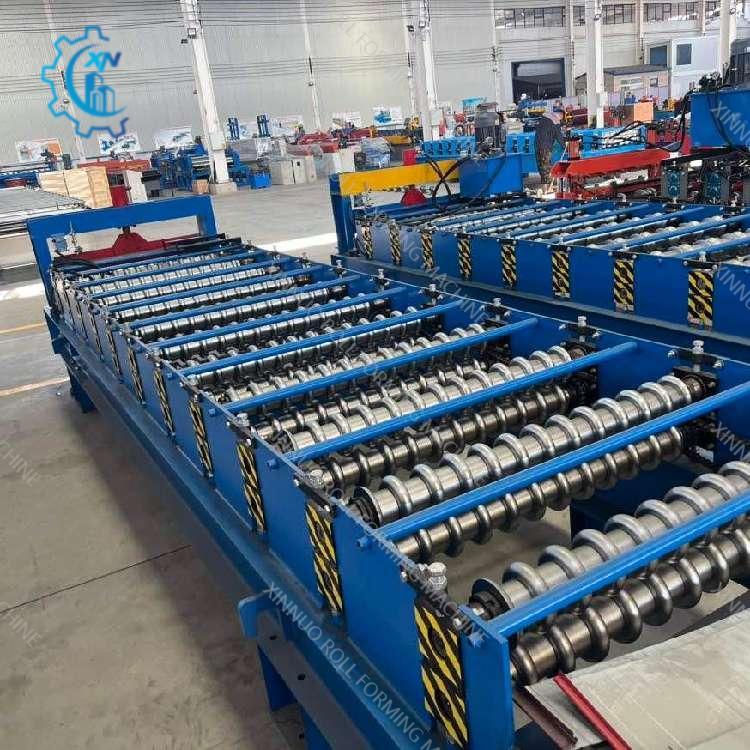

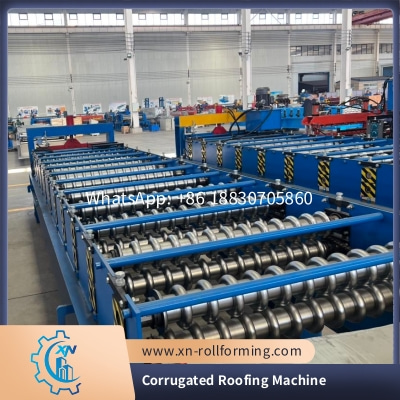

Engineered with heavy-duty 350H steel as its main frame and a 16 mm thick forming wall, the machine ensures excellent stability during continuous production. The rollers are made from high-strength 45# steel, precisely polished and plated with hard chrome for superior wear resistance and forming accuracy.

The 70 mm solid shafts provide perfect alignment and mechanical balance, allowing the system to run smoothly even at high speeds. It can process materials such as galvanized sheets, color steel coils, and aluminum, with thicknesses ranging from 0.3 mm to 0.8 mm and widths up to 1250 mm.

With a production speed of 10–18 meters per minute, the Corrugated Roofing Machine achieves an ideal balance of speed, precision, and energy efficiency.

Fully Automatic Control System

Equipped with a PLC control system and touch-screen operation panel, the machine allows users to set parameters such as sheet length, batch quantity, and cutting precision with just a few touches. The entire process—from coil feeding to forming and cutting—is fully automated, significantly reducing manual labor and improving efficiency.

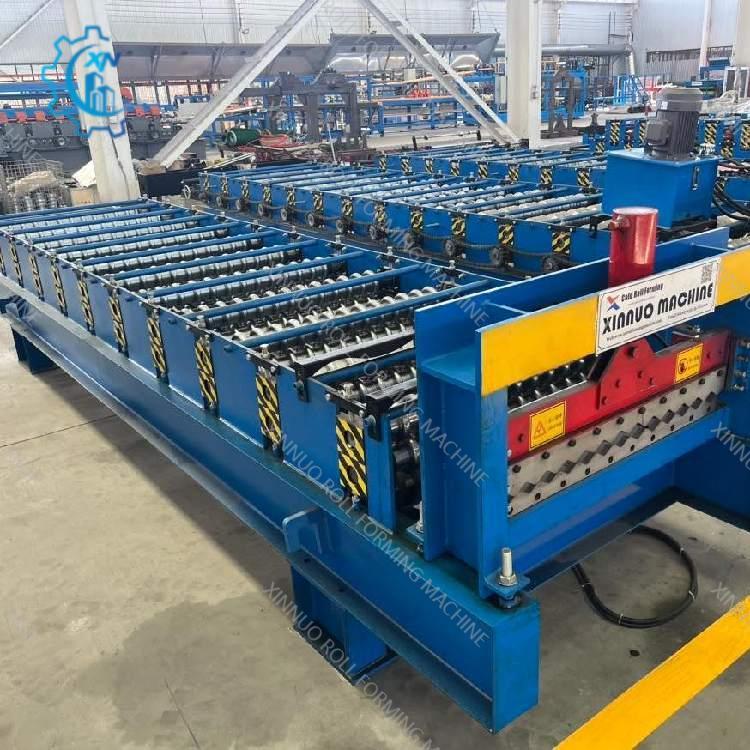

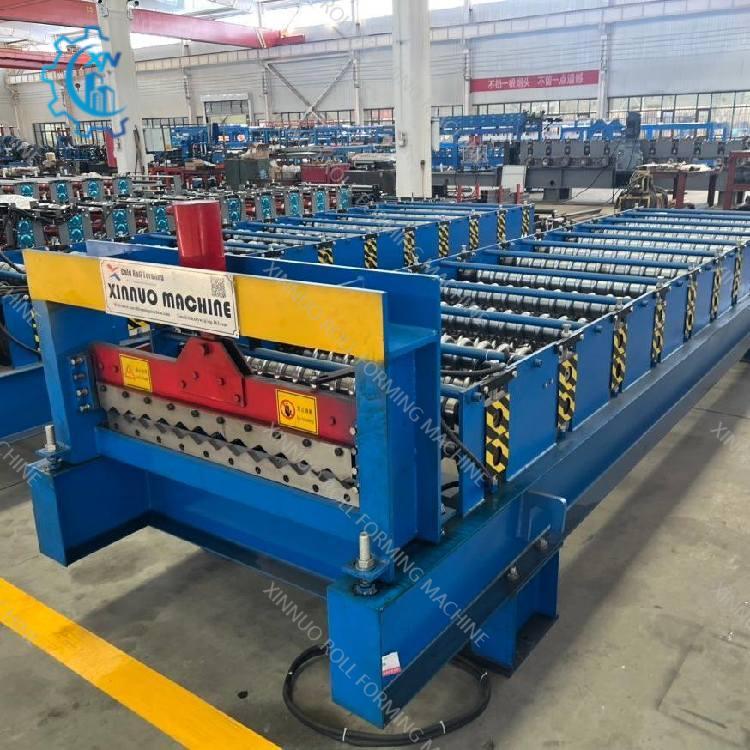

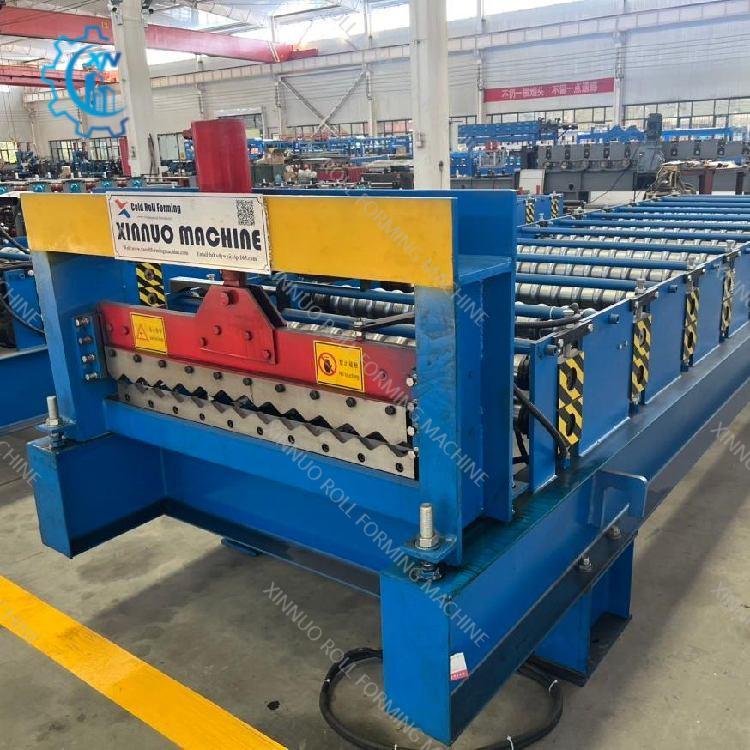

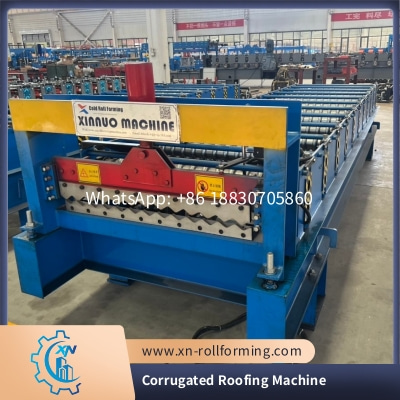

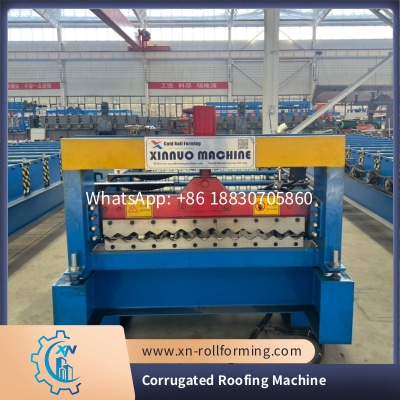

The hydraulic cutting system ensures clean, burr-free edges and maintains sheet integrity without any deformation. Optional devices like an automatic stacker or decoiler can be added to create a complete, continuous roofing sheet production line.

Superior Corrugated Roofing Sheets

The sheets produced by the Corrugated Roofing Machine are recognized for their smooth curves, uniform waves, and excellent strength. These corrugated profiles enhance water drainage, load resistance, and wind protection, making them ideal for both tropical and cold climate regions.

Available in galvanized, color-coated, or aluminum-zinc coated finishes, the sheets can be customized in length and profile shape to meet specific architectural requirements. The final product is widely used for residential roofs, warehouses, workshops, and agricultural shelters.

Key Advantages

• High accuracy forming rollers for consistent sheet profiles

• Strong steel frame ensures stable performance and long service life

• Energy-efficient operation with low noise and minimal waste

• Customizable sheet width, thickness, and design

• Easy maintenance and quick mold change for different profiles

• Full automatic control for continuous and safe production

Trusted Solution for Roofing Sheet Production

The Corrugated Roofing Machine is a preferred choice among metal roofing manufacturers seeking reliable performance and high productivity. Its precision forming technology, durable construction, and intelligent automation make it an excellent investment for modern sheet production lines.

Manufactured and supplied by Xinnuo Roll Forming Machine Co., Ltd., this equipment has been exported to Asia, Africa, South America, and the Middle East, where it has earned a strong reputation for quality, efficiency, and after-sales service.

With professional installation guidance, training, and lifetime technical support, Xinnuo ensures each customer can achieve stable and profitable production with minimal downtime.

Conclusion

Combining strength, precision, and innovation, the Corrugated Roofing Machine stands as a dependable solution for manufacturing high-quality roofing sheets that meet international standards. It is the perfect choice for enterprises that value long-term reliability, operational efficiency, and superior product finish in the roofing industry.
