Corrugated Iron Sheet Making Machine

Corrugated Iron Sheet Making Machine

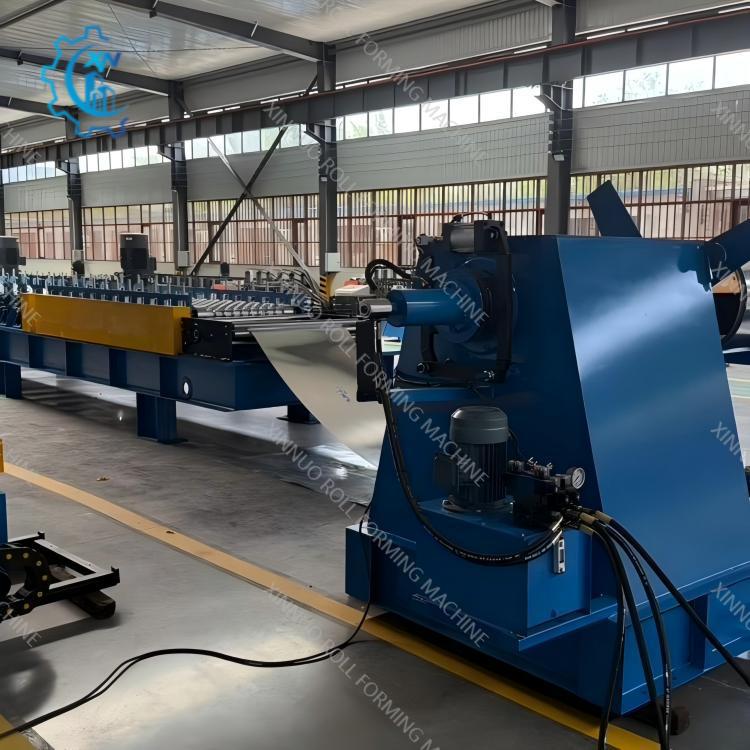

The Corrugated Iron Sheet Making Machine is an advanced roll forming system specially engineered for producing high-strength corrugated iron sheets used in roofing, cladding, and wall panels. Designed with precision, durability, and automation in mind, this machine converts metal coils—such as galvanized iron, color steel, and aluminum—into perfectly shaped corrugated sheets ready for construction and industrial applications.

Strong Structure, Stable Performance

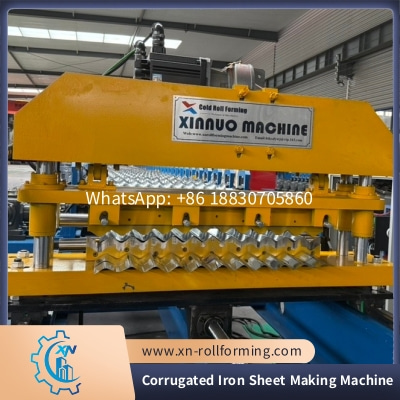

Built from a heavy-duty steel frame, the machine guarantees long-lasting stability even under continuous operation. Its roller system, made of high-grade 45# forged steel with hard chrome plating, ensures accurate forming and long service life. The 70 mm solid shafts provide excellent alignment and rigidity during high-speed production.

Capable of handling coil widths between 914 mm and 1250 mm and material thickness from 0.3 to 0.8 mm, it offers versatility for different sheet sizes and profiles. With a production speed of 10–18 meters per minute, the Corrugated Iron Sheet Making Machine provides both efficiency and precision in large-scale manufacturing.

Fully Automatic and User-Friendly

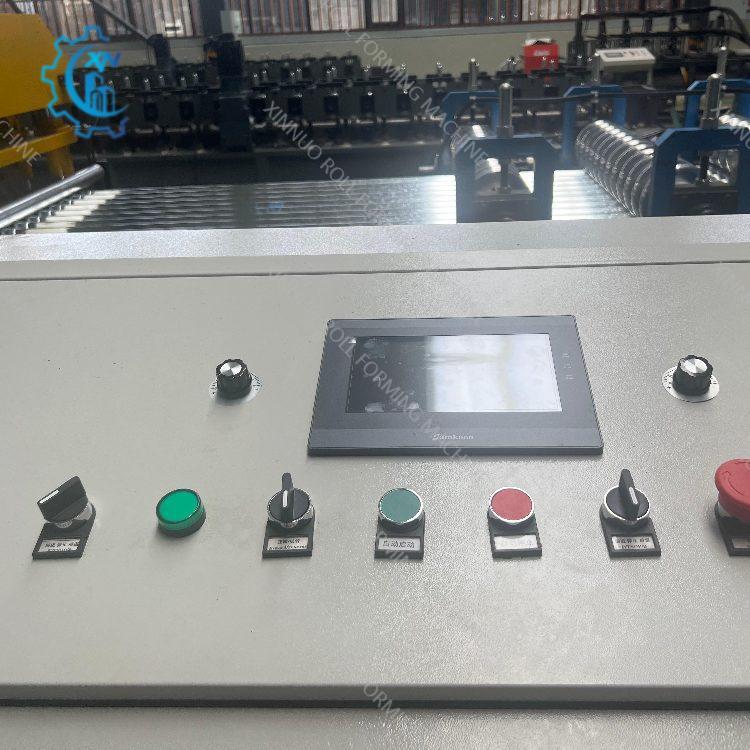

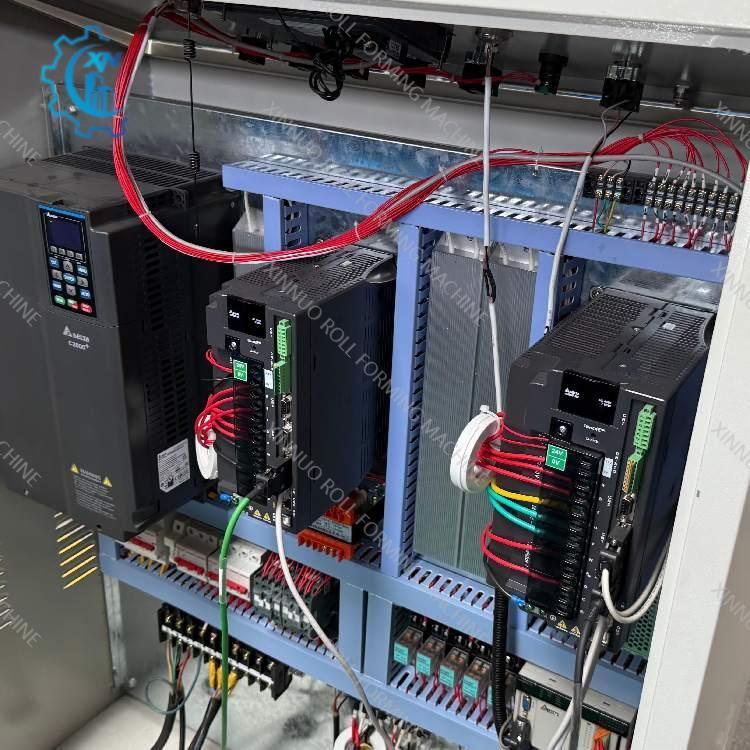

The system features a PLC automatic control panel with a touch-screen interface, allowing operators to easily set parameters such as cutting length, sheet quantity, and forming speed. The automatic feeding and cutting units ensure continuous, smooth operation, while the hydraulic cutting device guarantees clean edges without material distortion.

For improved productivity, an auto stacker can be integrated to neatly collect finished sheets, minimizing manual work and enhancing overall efficiency. Every stage—from coil loading to finished product stacking—can be automated to achieve truly intelligent production.

Superior Corrugated Iron Sheets

The sheets produced by this equipment are known for their consistent corrugation, excellent flatness, and high tensile strength. The distinctive wavy profile improves load-bearing capacity, corrosion resistance, and water drainage—making it an ideal choice for roofing, wall panels, and agricultural or industrial buildings.

Available in various corrugated profiles, these sheets can be produced in both galvanized and pre-painted finishes, ensuring versatility for different climate conditions and architectural styles.

Key Advantages

• Precision forming with minimal material waste

• High-speed, stable production suitable for continuous operation

• Long lifespan with strong structural components

• Energy-efficient and low maintenance design

• Flexible customization for profile shape, sheet width, and thickness

• Compatible with GI, PPGI, and aluminum coils

Reliable Partner for Roofing Sheet Production

The Corrugated Iron Sheet Making Machine from Xinnuo Roll Forming Machine Co., Ltd. is trusted by manufacturers across Asia, Africa, and South America for its durability and performance. Whether for a new factory setup or upgrading an existing production line, this equipment provides an efficient and cost-effective solution for mass corrugated sheet manufacturing.

With global installation support, on-site training, and lifetime technical service, Xinnuo ensures customers get stable production, accurate profiles, and long-term returns on investment.

Conclusion

Combining heavy-duty construction, smart control, and precision engineering, the Corrugated Iron Sheet Making Machine delivers exceptional corrugated sheets that meet international standards. It is the ideal choice for manufacturers who seek high performance, consistent quality, and efficient production in the roofing and construction materials industry.
