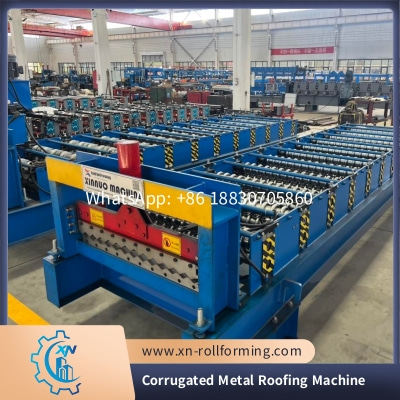

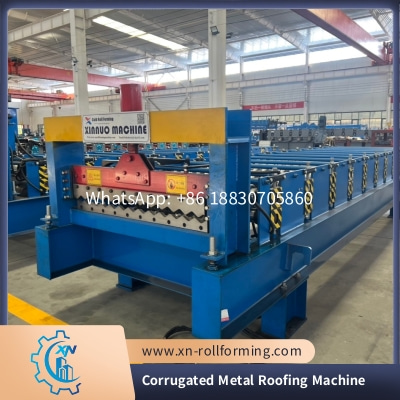

Xinnuo Corrugated Metal Roofing Machine: Precision for Durable Roof Panel Production
Xinnuo’s Corrugated Metal Roofing Machine is a specialized core equipment engineered for manufacturing high-quality corrugated metal roof panels, serving as a vital asset for construction, prefabricated building, and roofing material industries worldwide. This machine integrates advanced forming technology with robust structural design, delivering consistent, weather-resistant corrugated panels that excel in residential, commercial, and industrial roofing applications—from small family homes to large-scale factory warehouses.
A key advantage lies in its flexible material compatibility. The machine efficiently processes various metal sheets, including galvanized steel, color-coated steel, and aluminum plates, with a thickness range of 0.3-0.8mm—ideal for balancing panel durability and installation convenience. It supports feeding widths from 900mm to 1250mm, adapting to common raw material sizes and minimizing waste, while also accommodating custom width needs for specialized roofing designs.

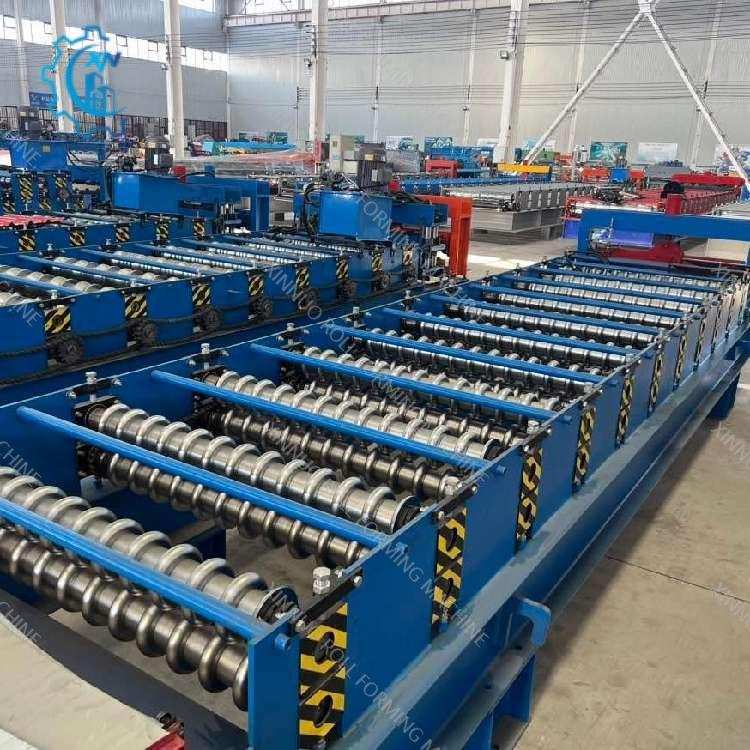

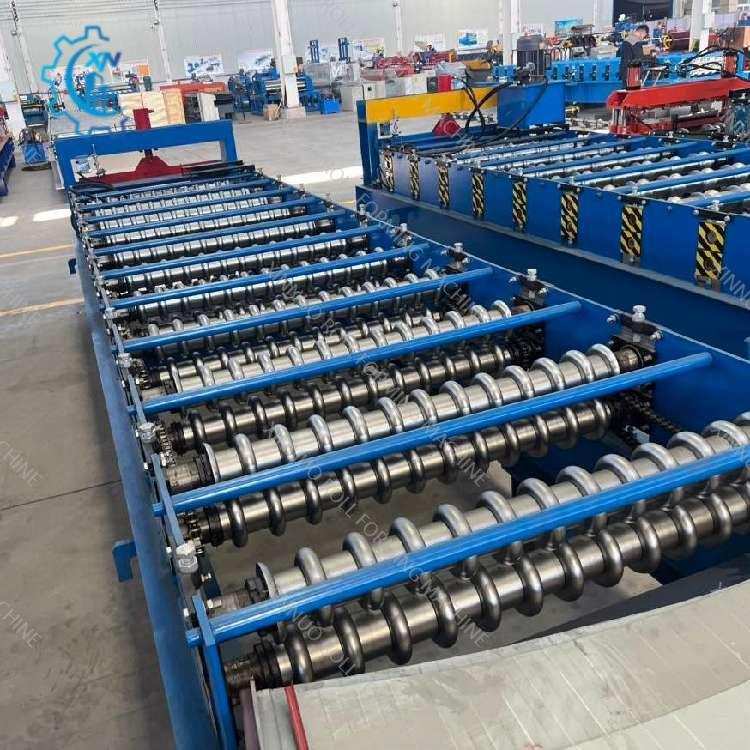

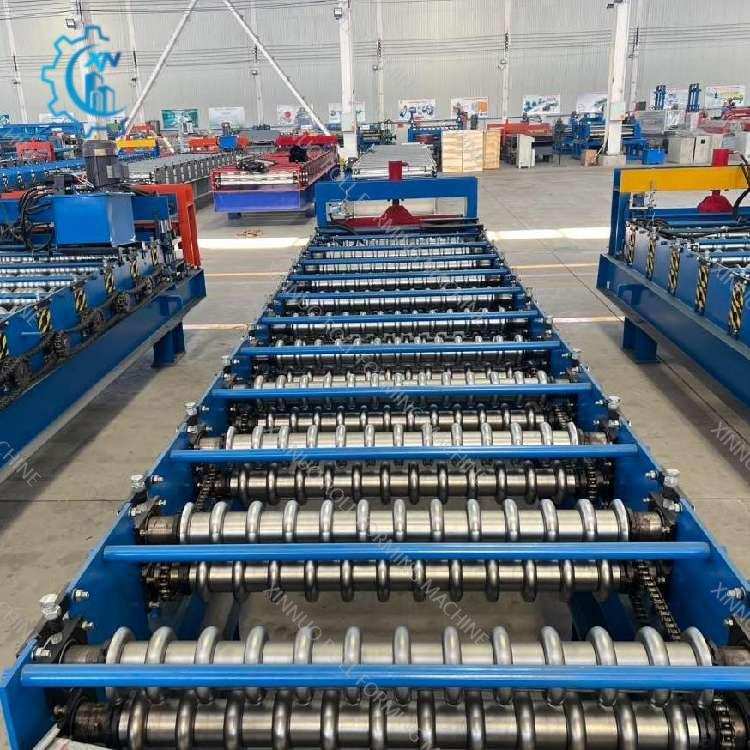

Precision in corrugated forming is guaranteed by its 12-16 rows of forming rollers. Each roller, crafted from high-wear 45# steel with a diameter of 75mm, ensures uniform shaping (wave height error ≤±0.5mm) and maintains performance even after prolonged high-volume operation. The multi-stage rolling process avoids material cracking or deformation, preserving the metal sheet’s surface finish—critical for color-coated panels that rely on aesthetic appeal.

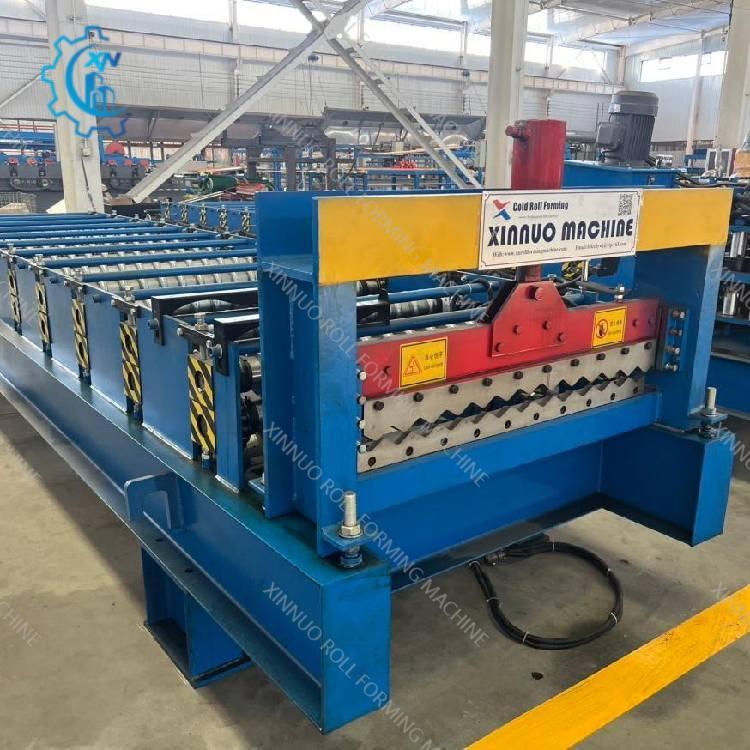

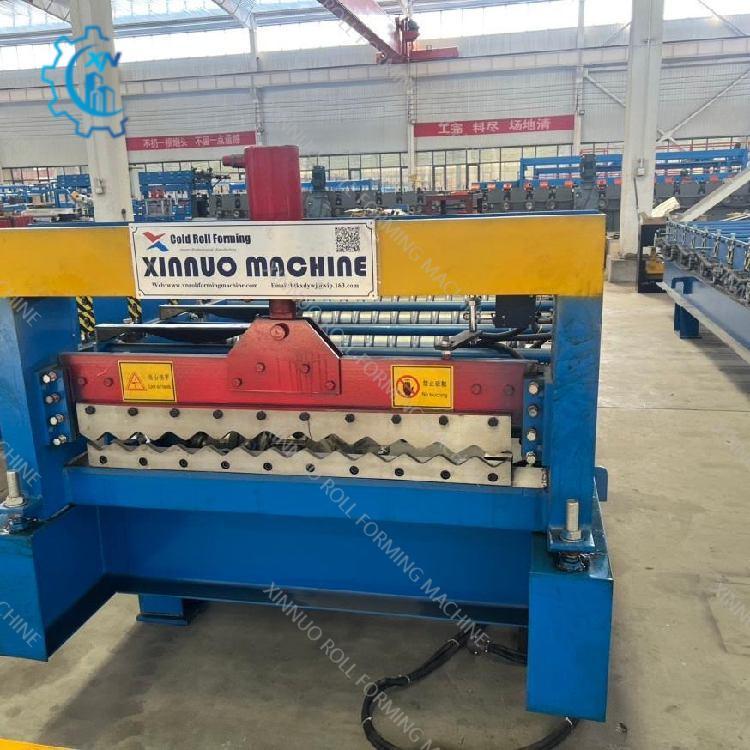

Production efficiency is optimized to meet industry demands. With a output rate of 15-20 meters per minute, the machine handles large orders efficiently, while an automatic decoiler (5-ton load capacity) reduces downtime for raw material replacement. Its integrated hydraulic cutting system, equipped with Cr12MoV alloy blades, delivers clean, precise cuts (length error ≤±1mm) without burring, eliminating the need for secondary processing.
Structural stability ensures long-term reliability. The machine’s main frame is built with 300mm H steel, providing strong load-bearing capacity, while 14mm-thick side panels enhance rigidity. Weighing 4.5-6 tons, it operates stably at high speeds, preventing vibrations that could affect forming accuracy. The control system adopts a user-friendly PLC (e.g., Delta or Siemens), enabling automated parameter adjustment—reducing manual error and simplifying operation for workers of varying skill levels.
To adapt to global markets, the machine runs on a standard 380V 3-phase 50Hz power supply, with voltage customization available for regions using 220V or 480V systems. It also holds CE and ISO certifications, verifying compliance with international quality and safety standards. Beyond standard configurations, Xinnuo offers tailored solutions—such as customizing wave height (15-35mm) and wave pitch (50-100mm)—to match specific architectural requirements, from high-wind coastal areas to thermal-insulated industrial roofs.
Ideal for roofing manufacturers, construction firms, and prefab builders, Xinnuo’s Corrugated Metal Roofing Machine blends efficiency, precision, and flexibility. It is more than equipment: it’s a reliable partner in producing durable, weather-resistant corrugated roof panels that enhance the longevity and functionality of any structure.
