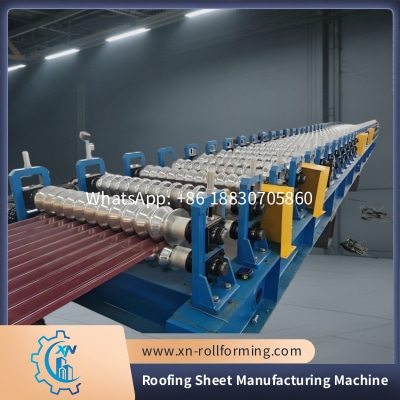

Xinnuo Roofing Sheet Manufacturing Machine: Precision for Color Steel Roofing Production

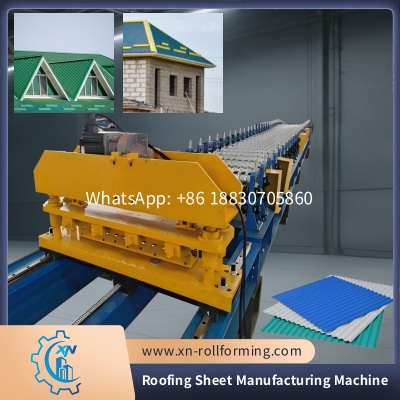

Xinnuo’s Roofing Sheet Manufacturing Machine is a specialized equipment engineered exclusively for processing color steel plates, designed to meet the high standards of the construction, prefabricated building, and roofing material industries. This machine integrates advanced forming technology with robust structural design, delivering consistent, high-quality roofing sheets that cater to residential, commercial, and industrial roofing needs.
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
914mm/1000mm/1200mm/1220mm/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one,can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 5T
|
|
16
|
Dimensions
|
8.5+1.6+1.6m
|
|
17
|
Voltage
|
380V 50hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer’s requirements
|
Flexibility in material handling is a key advantage. The machine supports color steel plates with multiple width options—914mm, 1000mm, 1200mm, 1220mm, and 1250mm—and a thickness range of 0.3-0.8mm, enabling production of diverse roofing sheet sizes to match project-specific requirements. It is equipped with a manual decoiler capable of loading 5 tons of raw material, ensuring continuous feeding during high-volume production and reducing downtime for material replacement.

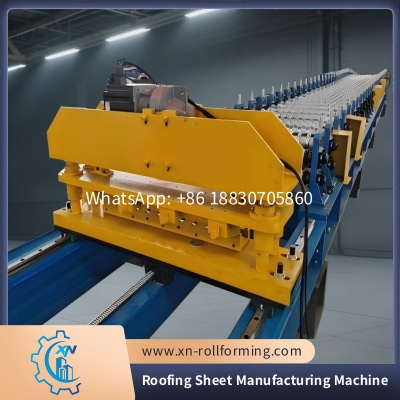

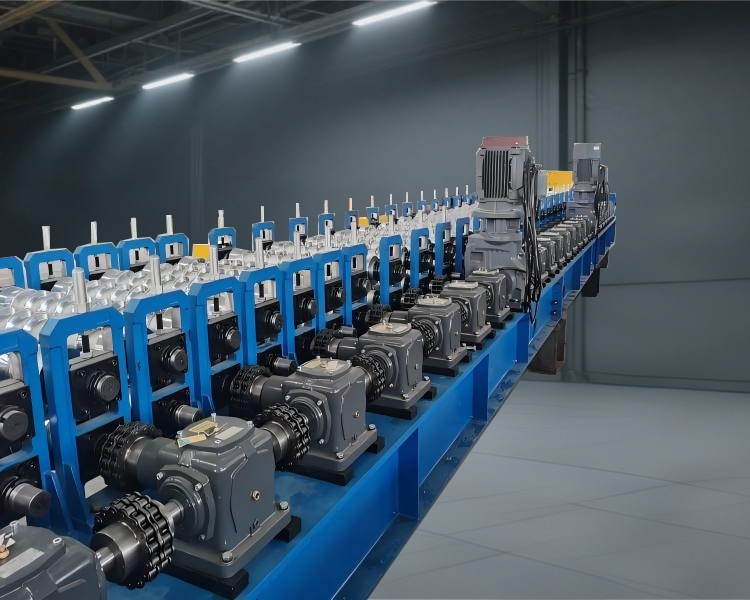

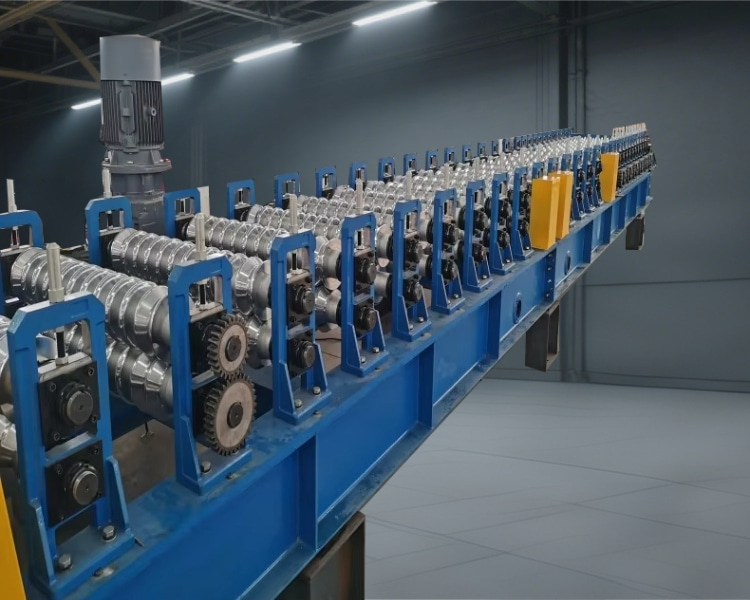

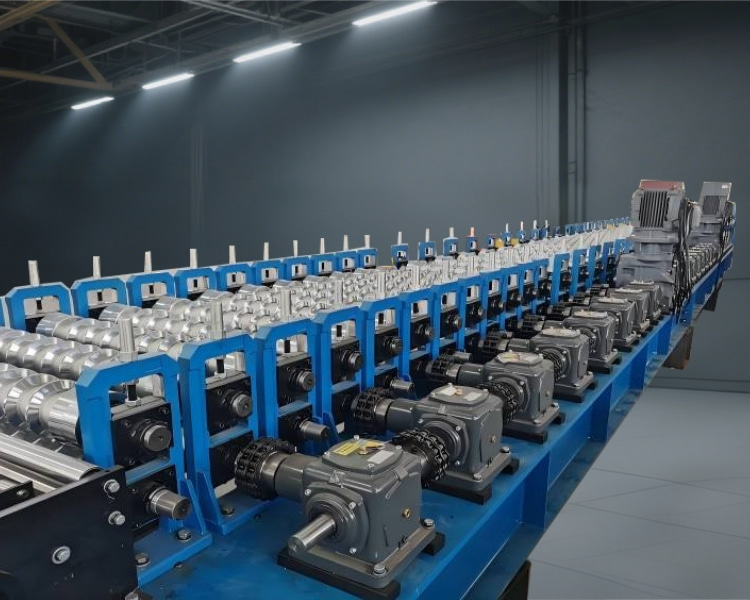

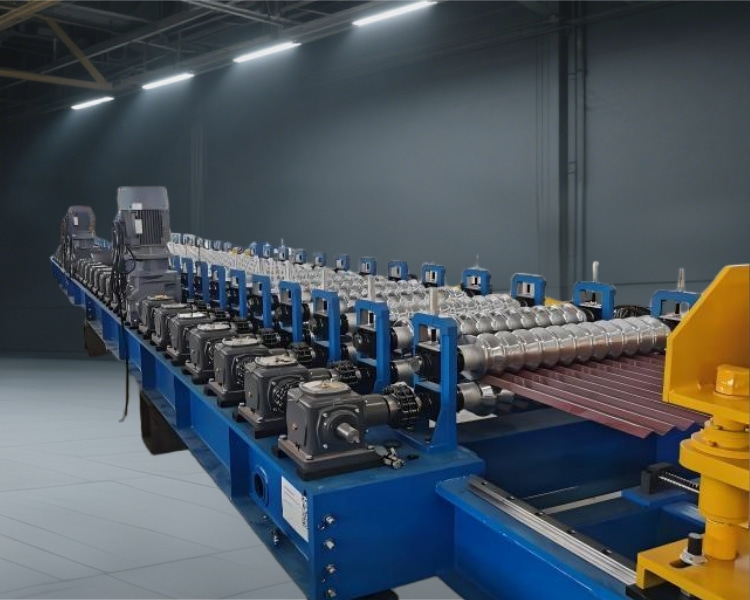

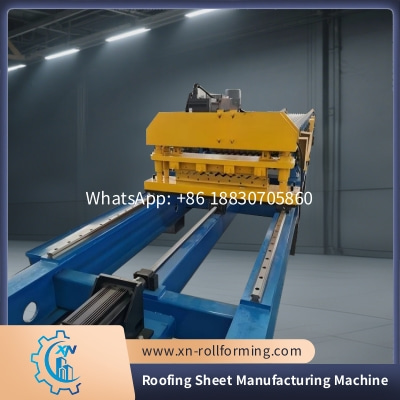

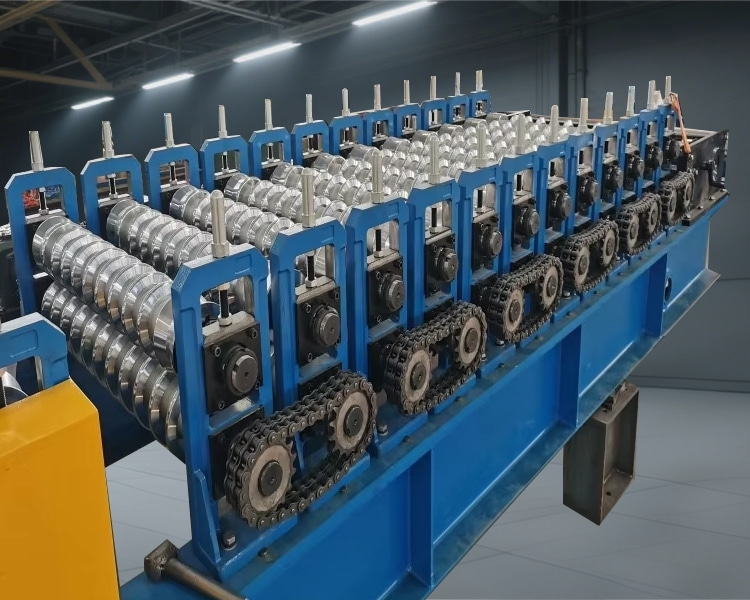

Precision in forming is guaranteed by its 16 rows of forming rollers. Each roller, with an 80mm diameter and crafted from carbon steel 45#, offers exceptional wear resistance and rigidity, maintaining consistent shaping even after prolonged operation. The forming process is complemented by a high-performance cutting system: a Cr12 mov cutting blade (known for superior hardness and durability) powered by a 4kw hydraulic system, ensuring clean, precise cuts without damaging the color steel surface.
Efficiency and accuracy are enhanced by its technical configuration. A 5.5kw main motor provides stable power for the forming process, while the Delta PLC control system enables automated parameter adjustment, minimizing manual intervention and ensuring processing precision within 1.00mm—critical for meeting strict roofing installation standards.
Structural durability ensures long-term reliability. The machine’s side panels are 16mm thick, and its main structure is built with 350 H steel, offering strong load-bearing capacity and resistance to deformation. Weighing approximately 5 tons and measuring 8.5m×1.6m×1.6m, it balances stability during operation with space efficiency for factory layouts.
To adapt to global operations, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical systems. It also holds CE and ISO certifications, verifying compliance with international quality and safety standards. Beyond standard configurations, Xinnuo offers comprehensive customization services based on customer needs, covering aspects like roller configurations, cutting specifications, and control system settings.
Ideal for roofing material manufacturers, construction companies, and prefab builders, Xinnuo’s Roofing Sheet Manufacturing Machine blends flexibility, precision, and durability. It is more than equipment—it’s a reliable partner in producing high-quality color steel roofing sheets that enhance the longevity and aesthetics of any structure.
