Corrugated Sheet Manufacturing Machine

Corrugated Sheet Manufacturing Machine

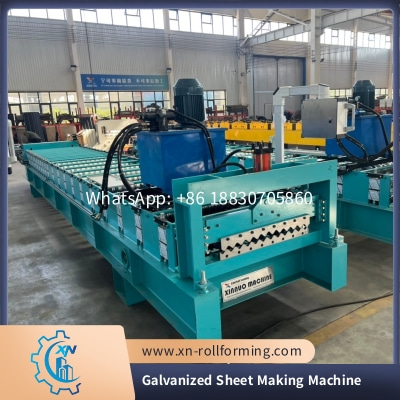

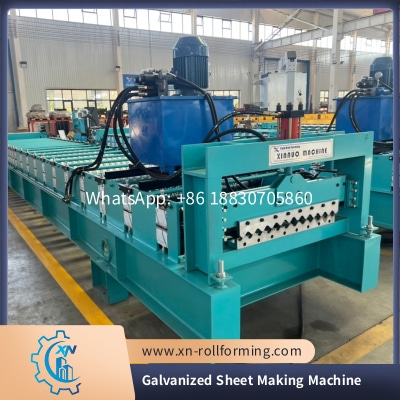

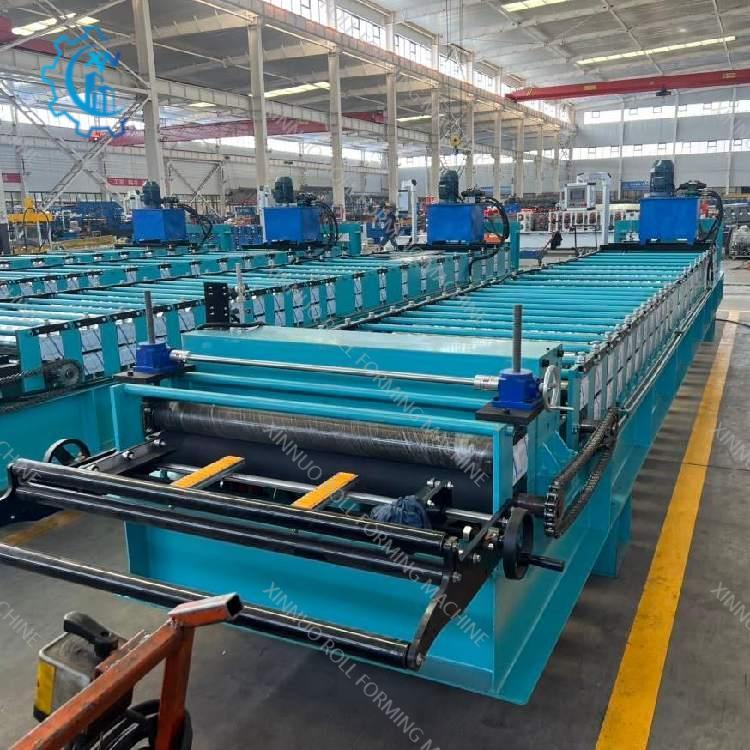

The Corrugated Sheet Manufacturing Machine is an advanced roll forming system engineered for the continuous production of high-quality corrugated roofing and cladding sheets. Designed to transform galvanized steel, color-coated coils, or aluminum materials into uniform, high-strength corrugated panels, this machine stands out for its precision, speed, and long-term reliability. It’s the perfect choice for construction material suppliers aiming to meet the growing global demand for durable, aesthetic, and weather-resistant roofing solutions.

Precision Engineering for Consistent Quality

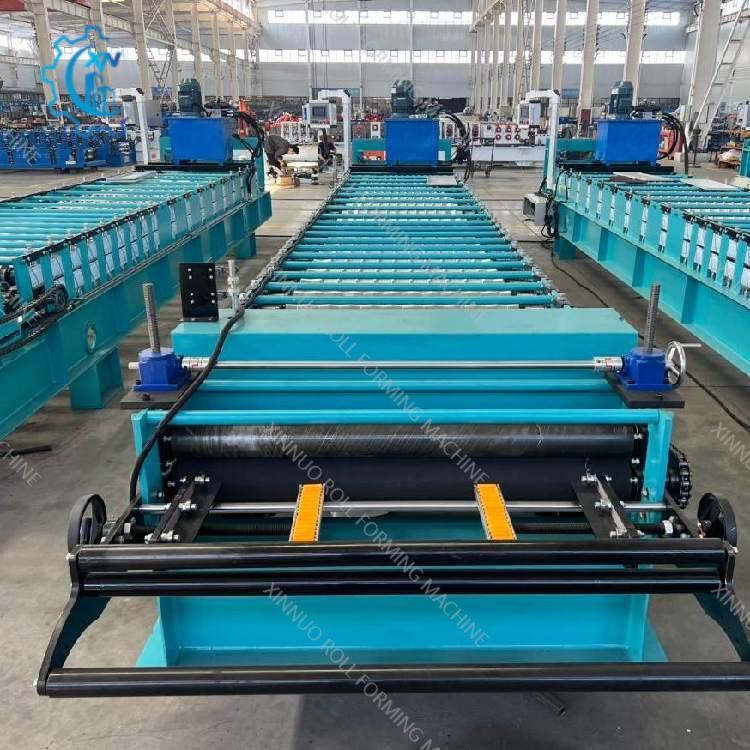

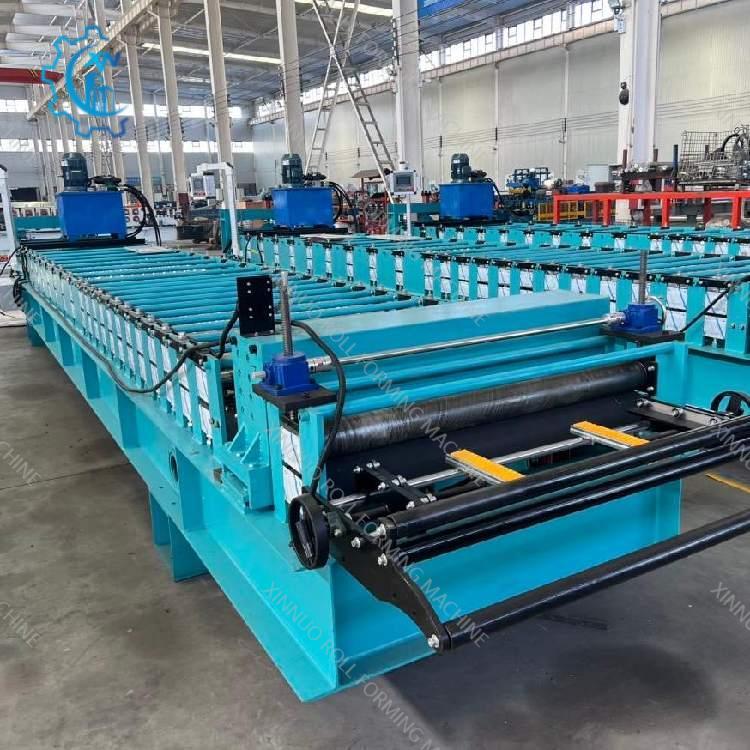

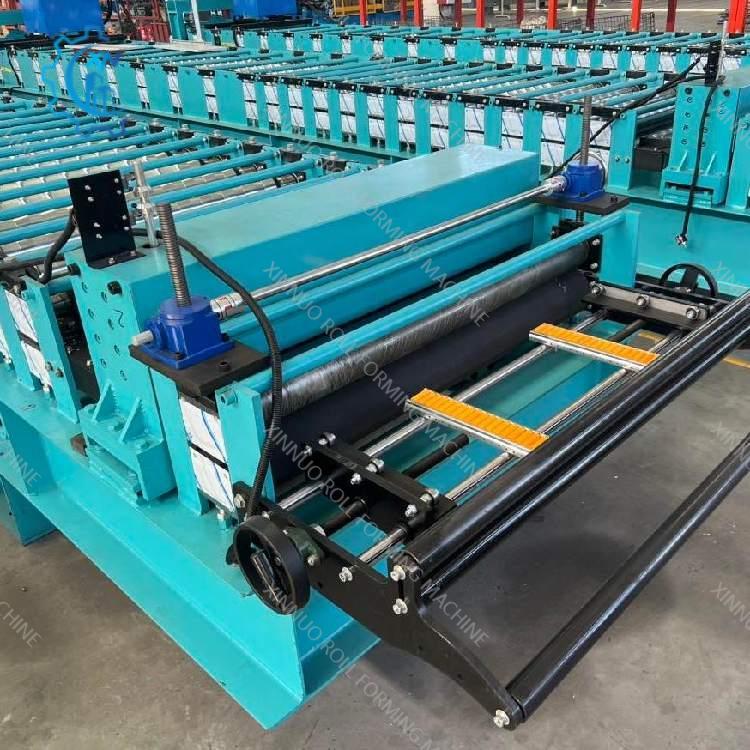

At the heart of the Corrugated Sheet Manufacturing Machine lies a robust forming structure made from heavy-duty 350H steel and a 16 mm-thick wall frame to ensure operational stability. Each roller is crafted from 45# high-grade steel, precision-machined, and hard chrome-plated for maximum durability and resistance against corrosion and surface wear. The 70 mm solid steel shafts deliver smooth, vibration-free forming, ensuring each corrugated profile is consistent in shape and dimension.

The machine is compatible with a wide range of materials — including galvanized, galvalume, and pre-painted steel — and supports sheet thicknesses from 0.3 mm to 0.8 mm and widths around 1000 mm or customized upon request.

Automated Control and Efficient Operation

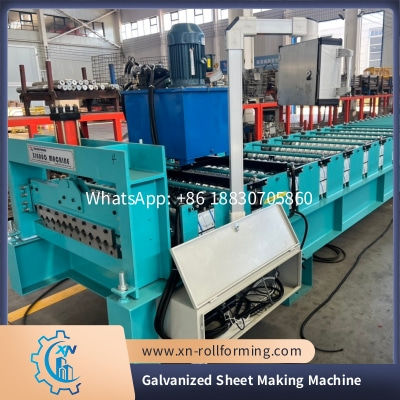

The entire production process is driven by an intelligent PLC control system, allowing automatic synchronization between decoiling, roll forming, cutting, and stacking. Operators can easily set sheet length, cutting count, and forming speed through a touchscreen control panel, ensuring both convenience and accuracy.

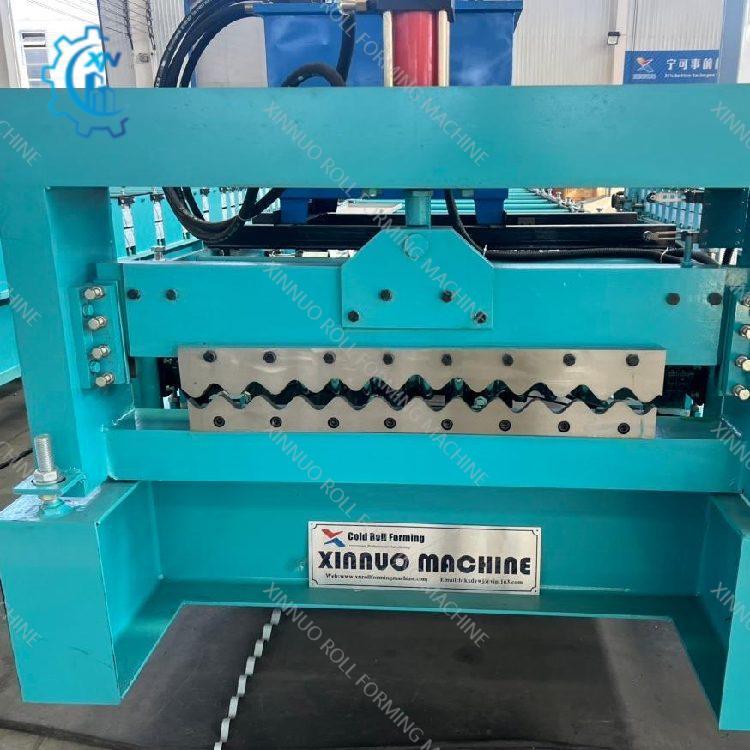

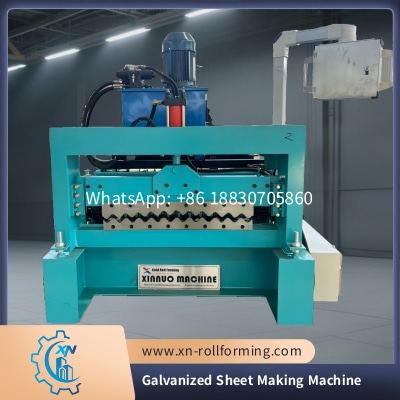

With a working speed of 10–16 meters per minute, this machine combines high output capacity with exceptional forming precision. The hydraulic cutting system ensures clean edges and accurate lengths without damaging the zinc or paint coating — maintaining the corrosion resistance and aesthetic quality of the finished sheets.

Excellent Corrugated Output

The finished corrugated sheets produced by this machine feature uniform wave patterns, smooth edges, and a bright surface finish. These sheets are lightweight yet strong, providing excellent structural integrity, load-bearing performance, and weather resistance. Whether used for industrial warehouses, residential housing, or agricultural buildings, they deliver long-lasting protection and modern visual appeal.

Key Advantages

• Heavy-duty, vibration-free main frame for stable performance

• Precision roller alignment for consistent sheet profiles

• Fully automatic PLC and touchscreen operation

• Hydraulic cutting for accurate, burr-free results

• Adaptable to various metal materials and profile designs

• Energy-efficient drive system for reduced power consumption

• Low maintenance and long service life

A Reliable Solution for Global Roofing Production

Manufactured by Xinnuo Roll Forming Machine Co., Ltd., a leader in metal forming technology, the Corrugated Sheet Manufacturing Machine represents a perfect balance between engineering precision and operational efficiency. It has earned trust in more than 60 countries across Asia, Africa, and South America for its stability, high productivity, and simple maintenance.

Each unit comes with comprehensive after-sales support, including remote operation guidance, installation assistance, and technician training — enabling clients to start production quickly and confidently.

Conclusion

The Corrugated Sheet Manufacturing Machine is not just a forming tool — it’s a complete, automated solution for producing premium corrugated roofing sheets that meet international standards of strength, appearance, and durability.

For manufacturers looking to upgrade their facilities, expand product lines, or capture new markets, this machine provides a high-value investment that combines efficiency, flexibility, and proven reliability in every corrugated panel it produces.
