Xinnuo Roofing Sheet Machine: Precision Crafted for Superior Roofing Solutions

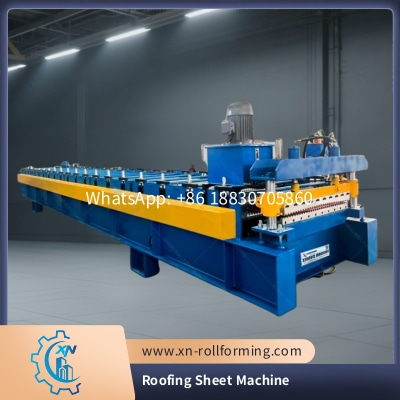

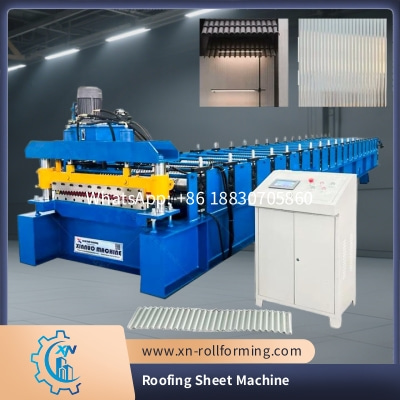

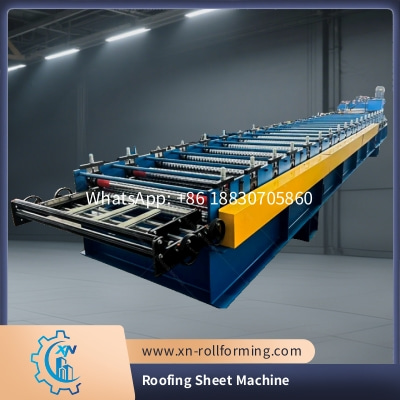

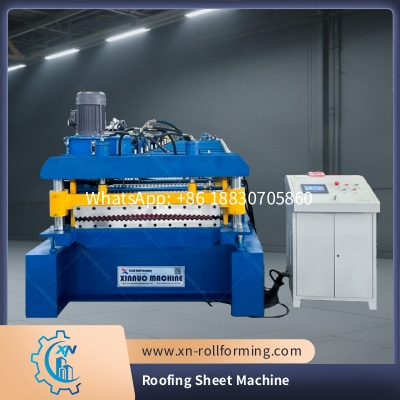

Xinnuo’s Roofing Sheet Machine is a specialized solution engineered to transform color steel plates into high-quality roofing sheets with exceptional precision and efficiency. Designed to meet diverse construction needs, this machine combines robust build quality with advanced controls, ensuring consistent performance for both small-scale projects and large-volume production.
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
914mm/1000mm/1200mm/1220mm/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one,can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 5T
|
|
16
|
Dimensions
|
8.5+1.6+1.6m
|
|
17
|
Voltage
|
380V 50hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer’s requirements
|

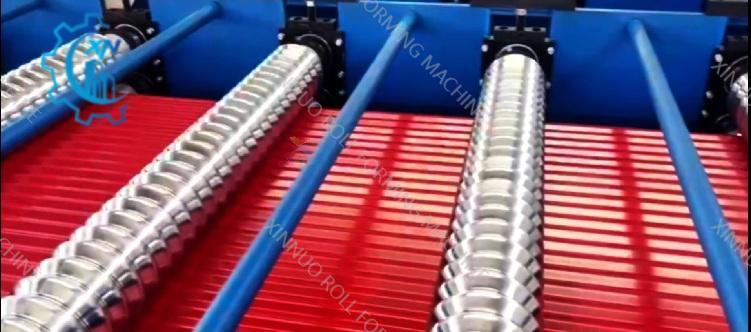

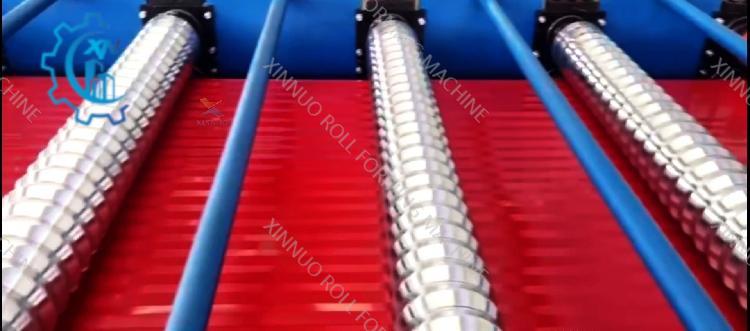

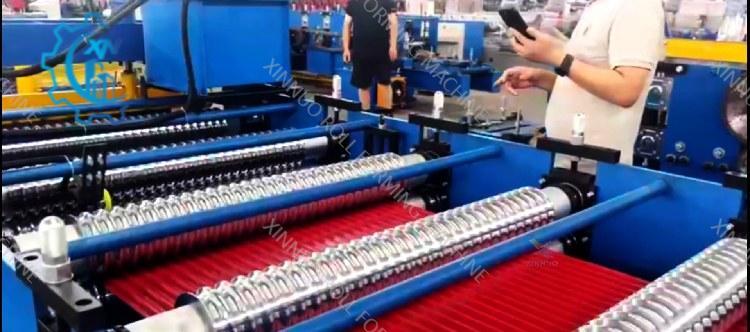

Ideal for processing color steel plates, the machine accommodates a range of plate widths: 914mm, 1000mm, 1200mm, 1220mm, and 1250mm, with thicknesses spanning 0.3mm to 0.8mm. Its manual de-coiler efficiently handles raw material loads up to 5 tons, providing a steady feed for uninterrupted operation. The forming process relies on 16 rows of rollers, each with an 80mm diameter and crafted from Carbon Steel 45#—a material chosen for its durability and resistance to wear, ensuring long-term precision in shaping.

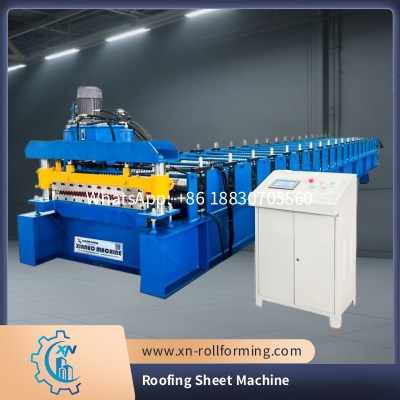

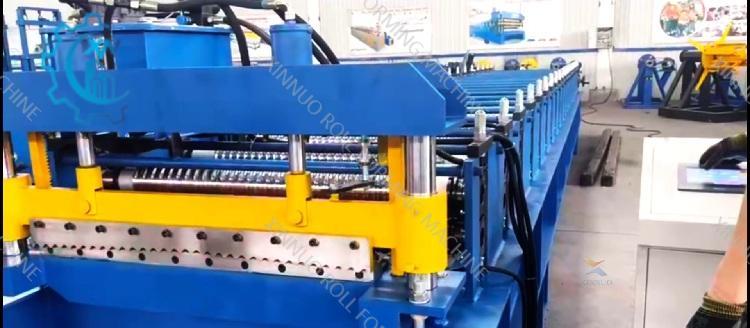

Powered by a 5.5kw main motor, the machine delivers reliable performance, while a 4kw hydraulic cutting system equipped with Cr12 mov blades ensures clean, accurate cuts. This combination guarantees processing precision within 1.00mm, critical for achieving tight fits and professional finishes in roofing installations. The Delta PLC control system simplifies operation, allowing operators to set parameters with ease and maintain consistent output.
Built to last, the machine features a 16mm side panel and a main structure constructed from 350 H steel, providing exceptional stability during high-speed operation. Weighing approximately 5 tons and measuring 8.5m × 1.6m × 1.6m, it balances a compact footprint with industrial-grade robustness. Operating on 380V 50Hz three-phase power (customizable to meet regional needs), it adheres to global standards, holding CE and ISO certifications for quality and safety.
Xinnuo prioritizes flexibility, offering customization options tailored to specific customer requirements—whether adjusting dimensions, integrating additional features, or modifying power specifications. Backed by our commitment to reliability, this Roofing Sheet Machine is an investment in efficiency, delivering consistent, high-quality roofing sheets for residential, commercial, and industrial projects alike.
