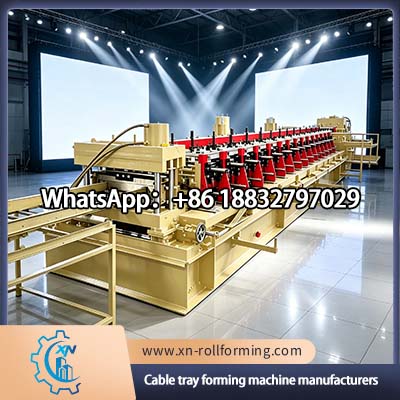

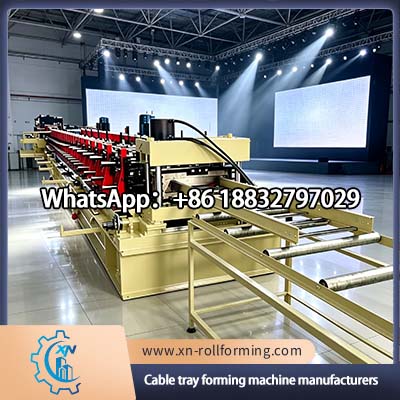

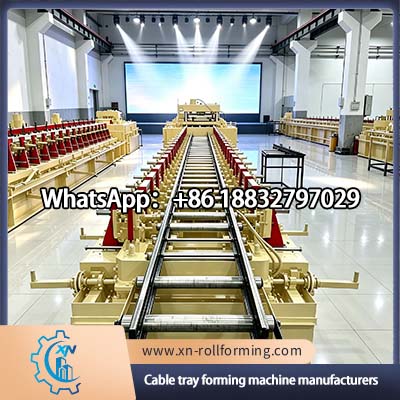

Automatic Cable Tray Roll Forming Machine

The Cable Tray Roll Forming Machine is an advanced manufacturing solution designed for the continuous production of high-quality cable trays used in electrical, industrial, commercial, and infrastructure projects. As modern construction and power distribution systems become increasingly complex, the demand for reliable cable management products continues to grow. This machine enables manufacturers to produce cable trays efficiently while maintaining excellent dimensional accuracy, structural strength, and consistent product quality.

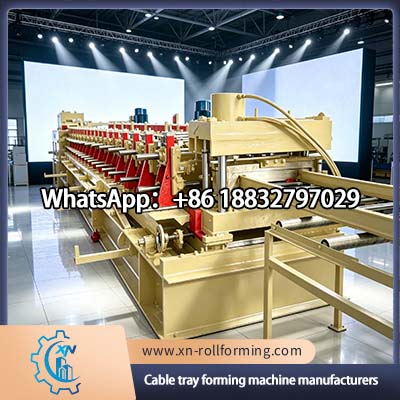

Designed with modern roll forming technology, the machine integrates decoiling, leveling, servo feeding, hydraulic punching, roll forming, cutting, and automatic discharge into a complete production line. The automated production process significantly improves manufacturing efficiency while reducing labor costs and material waste. It is suitable for producing a wide range of cable tray products including perforated cable trays, ladder cable trays, solid-bottom cable trays, cable trunking systems, and customized cable management profiles.

The production line can process various metal materials such as galvanized steel, pre-galvanized steel, stainless steel, aluminum, and mild steel. Depending on customer requirements, the machine can be customized to accommodate different material thicknesses, tray widths, tray heights, and punching patterns. This flexibility allows manufacturers to serve diverse industries and project specifications with a single production solution.

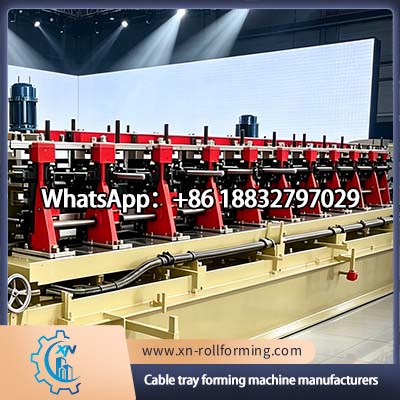

A servo feeding system ensures accurate material positioning before punching operations. The hydraulic punching unit can create slots, holes, and customized patterns according to engineering drawings. After punching, the material enters the roll forming section where multiple precision-machined rollers gradually shape the metal into the final cable tray profile. The finished product is then cut to the required length using a hydraulic cutting system without interrupting the production process.

The machine is equipped with an intelligent PLC control system and user-friendly touchscreen interface. Operators can easily adjust production parameters, monitor machine performance, and manage different product specifications. Automated control not only improves operational efficiency but also minimizes production errors and downtime.

Cable trays manufactured by this machine are widely used in commercial buildings, industrial plants, power stations, solar energy projects, data centers, airports, hospitals, telecommunication facilities, and transportation infrastructure. These products provide organized cable routing, protection, and easy maintenance for electrical systems.

Compared with traditional fabrication methods, roll forming technology offers higher production speeds, greater consistency, lower production costs, and superior product quality. The robust machine structure, premium components, and precision engineering ensure stable operation and long service life even under demanding production conditions.

Whether you are establishing a new cable tray manufacturing facility or expanding an existing production line, our Cable Tray Roll Forming Machine provides a reliable and cost-effective solution for modern cable tray production. Customized machine configurations and technical support are available to meet specific manufacturing requirements and market demands.
