Xinnuo C Purlin Forming Machine: Precision in C-Shaped Purlin Production
Xinnuo’s C Purlin Forming Machine is a state-of-the-art equipment engineered for automatic C purlin roll forming, playing a crucial role in manufacturing high-quality C-shaped purlins—vital components in steel structures for roofs, walls, and industrial frameworks. This machine integrates advanced technology with robust design to deliver consistent performance, making it a top choice for fabricators aiming to enhance production efficiency and quality.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is a standout feature of this machine. The width of the feeding material can be adjusted according to specific requirements, allowing for the production of C purlins in various sizes to meet diverse project needs. Whether for small-scale residential buildings or large industrial complexes, it adapts seamlessly to different dimensional demands, ensuring versatility in application.

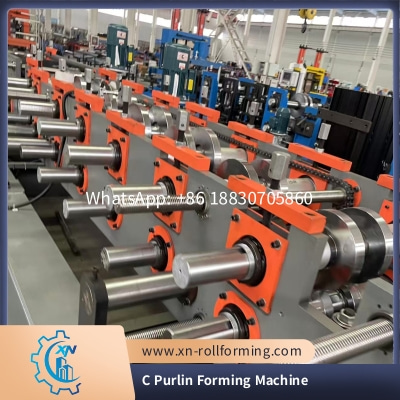

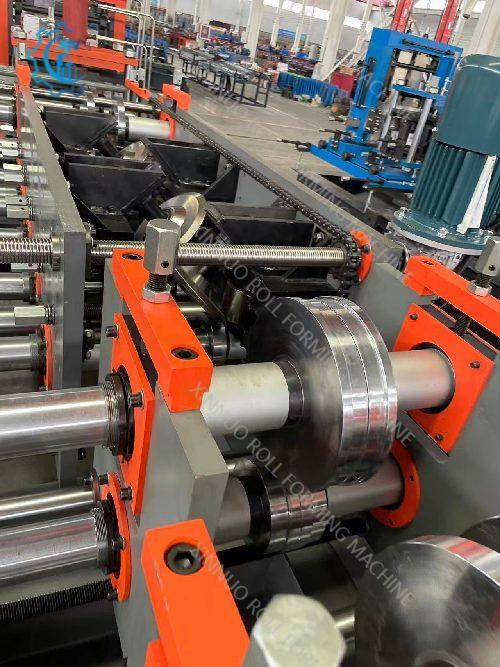

Equipped with 11-18 roller stations (with customization options based on customer needs), the machine ensures precise and uniform forming of C purlins. The multi-stage rolling process guarantees that each purlin maintains accurate dimensions and structural integrity, which is essential for ensuring the stability and safety of the final structures. The rollers, made from 45# steel, offer excellent wear resistance, ensuring long-term precision even under continuous operation. Supported by shafts with a diameter of 70-80mm, they operate smoothly with minimal vibration, further enhancing forming accuracy.
The machine can process feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can be adjusted as per specific requirements, providing versatility for different material specifications. With a productivity rate of 18-20 m/min, it enables efficient mass production, helping manufacturers meet tight deadlines and increase overall output without compromising on quality.
Structural durability is a key aspect of this machine. The main forming machine features a wall thickness of 12-18mm steel plate, and its main body is constructed from 300-400mm H steel, ensuring exceptional rigidity and stability. With a weight of approximately 9.8T, the machine operates stably even at high speeds, reducing the risk of deformation and extending its service life. The 22kw motor provides ample power to drive the machine efficiently, ensuring smooth and consistent operation throughout the production process.
The machine operates on a standard voltage of 380V 50Hz 3phases, but it can be customized to suit different regional voltage requirements, making it suitable for use in various countries and regions worldwide. Additionally, Xinnuo offers comprehensive customization services based on customer needs, covering all aspects of the machine to ensure it perfectly aligns with specific production requirements.
In summary, Xinnuo’s C Purlin Forming Machine stands out for its flexibility, precision, efficiency, and durability, making it an ideal investment for manufacturers engaged in the production of high-quality C-shaped purlins. It is more than just a machine; it is a reliable partner in creating strong and durable structures that form the backbone of modern construction.
