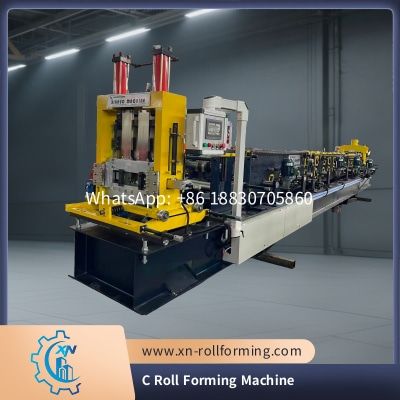

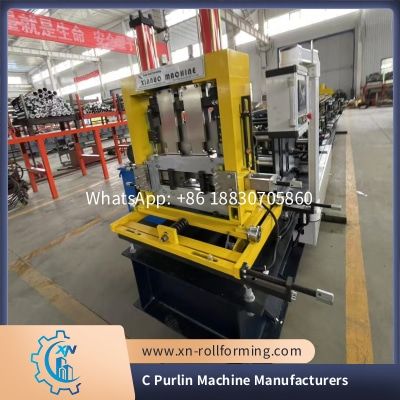

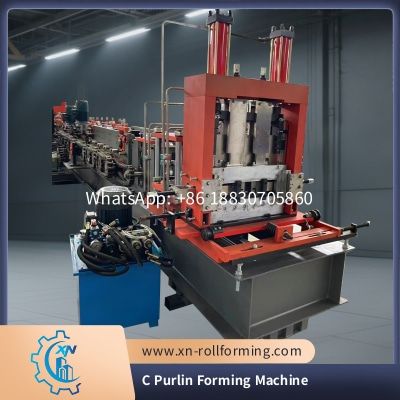

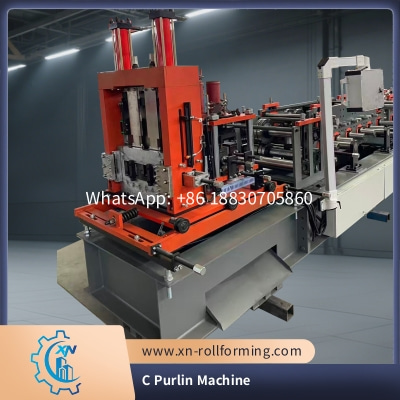

Xinnuo C Purlin Machine: Reliable Equipment for C Purlin Production
Xinnuo’s C Purlin Machine is a specialized device engineered for manufacturing automatic C purlins, which are vital structural components in various construction projects. This machine combines advanced technology with robust design to meet the diverse needs of the steel structure industry, ensuring efficient and high-quality production.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
One of the key advantages of this machine is its flexibility in handling feeding materials. The width of the feeding material can be adjusted according to specific requirements, allowing for the production of C purlins in different sizes to 适配 various architectural designs. Whether for industrial workshops, commercial buildings, or agricultural facilities, it can cater to diverse dimensional needs.

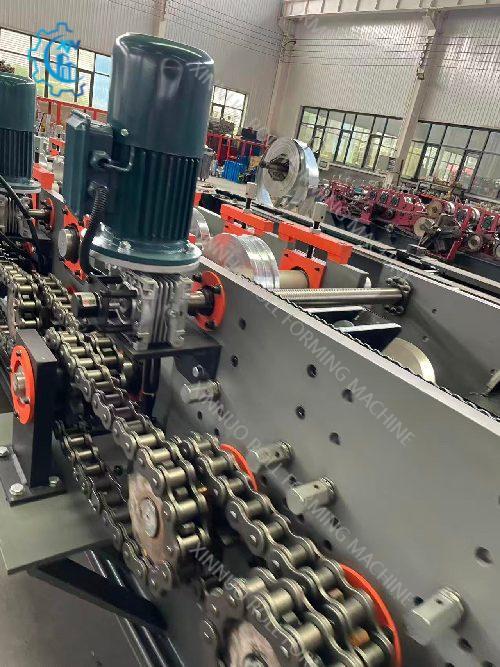

Equipped with 11-18 rows of roller stations, and customizable based on customer demands, the machine ensures precise forming of C purlins. This multi-stage rolling process guarantees that each purlin maintains consistent dimensions and structural integrity, which is crucial for ensuring the stability of the overall building structure. The rollers, made from 45# steel, offer excellent wear resistance, ensuring long-term precision in forming. Supported by shafts with a diameter of 70-80mm, they operate stably even during prolonged use.
The machine can process feeding materials with a thickness ranging from 1.5mm to 3mm, and this range can be further adjusted as per requirements. This versatility enables it to handle both light and medium-duty C purlin production, making it suitable for a wide range of applications. With a productivity of 18-20 m/min, it significantly boosts production efficiency, allowing manufacturers to meet tight deadlines and large-order requirements.
In terms of structural durability, the main forming machine features a wall thickness of 12-18mm steel plate, and its main body is constructed from 300-400mm H steel. This robust build, combined with an approximate weight of 9.8T, ensures stable operation even at high speeds, minimizing vibrations and maintaining forming accuracy. The 22kw motor provides sufficient power to drive the machine smoothly, ensuring consistent performance throughout the production process.
The machine operates on 380V 50Hz 3phases voltage, but it can be customized to adapt to different regional voltage requirements, enhancing its global applicability. Moreover, Xinnuo offers comprehensive customization services based on customer needs, covering aspects such as roller station configuration, material thickness range, and other specific requirements. This ensures that the machine perfectly aligns with each customer’s unique production demands.
In summary, Xinnuo’s C Purlin Machine stands out for its flexibility, precision, efficiency, and durability, making it an ideal choice for manufacturers seeking reliable equipment to produce high-quality C purlins for various construction projects.
