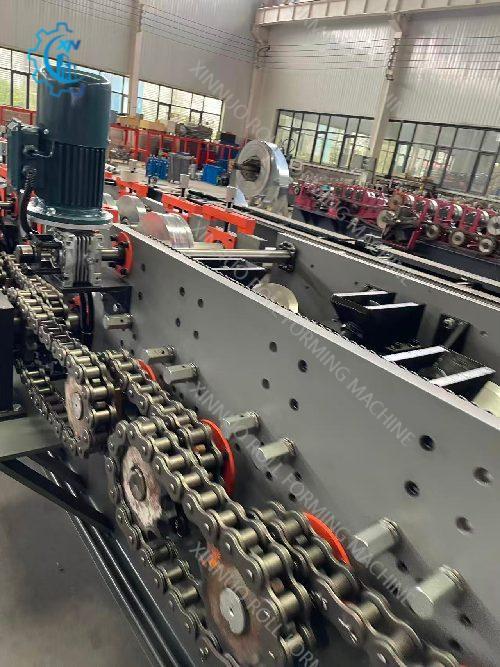

Xinnuo C Channel Forming Machine: Precision in C-Section Production
Xinnuo’s C Channel Forming Machine is a cutting-edge solution designed for automatic C purlin roll forming, specializing in the production of high-quality C-shaped channels—essential components in construction, machinery, and structural engineering. This machine blends efficiency, versatility, and durability to meet the diverse demands of modern manufacturing, making it a cornerstone for businesses seeking reliable C-section production.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
A key highlight of this machine is its exceptional flexibility in handling materials. The width of the feeding material can be tailored to your exact requirements, eliminating constraints on channel size. This allows for the production of C-channels in various dimensions, from standard profiles to custom designs for specialized projects, ensuring compatibility with a wide range of applications, from building frameworks to industrial supports.
Equipped with 11-18 roller stations (with customization options to match specific needs), the machine delivers precise, gradual forming of C-channels. This multi-stage rolling process guarantees uniform dimensions and consistent structural integrity, which is critical for load-bearing performance. The rollers, crafted from 45# steel, boast superior wear resistance, maintaining precision even after prolonged operation. Supported by 70-80mm diameter shafts, they minimize vibration during high-speed forming, further enhancing accuracy.
The machine processes materials with a thickness of 1.5-3mm, with options to adjust this range based on requirements, making it suitable for both light and heavy-duty C-channels. Its productivity of 18-20 meters per minute ensures high-volume output, ideal for meeting tight production deadlines without compromising quality. A 22kw motor provides robust power, ensuring smooth operation even when handling thicker materials.
Structural durability is a defining feature. The main forming machine features 12-18mm thick steel plate walls, while the main body uses 300-400mm H steel—materials chosen for their rigidity and resistance to deformation. This robust construction, combined with a weight of approximately 9.8 tons, ensures stability during high-speed operation, extending equipment lifespan and reducing maintenance needs.
Adaptable to global operations, the machine operates on 380V 50Hz 3-phase power as standard, with customization available for regional voltage requirements. Xinnuo prioritizes tailored solutions, offering adjustments to roller configurations, material thickness ranges, and other specifications to align with unique production goals. Whether producing channels for residential construction or industrial machinery, this machine adapts to your needs.
Ideal for steel fabricators, construction material suppliers, and industrial manufacturers, Xinnuo’s C Channel Forming Machine combines precision, efficiency, and flexibility to elevate C-section production. It’s more than equipment—it’s a partner in building strong, reliable structures that stand the test of time.
