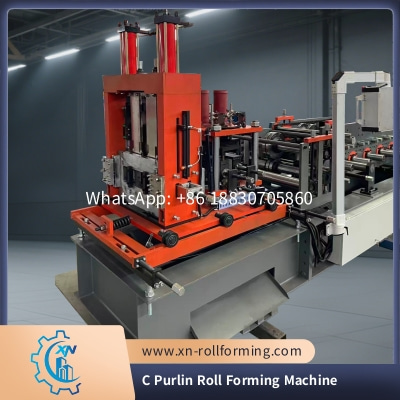

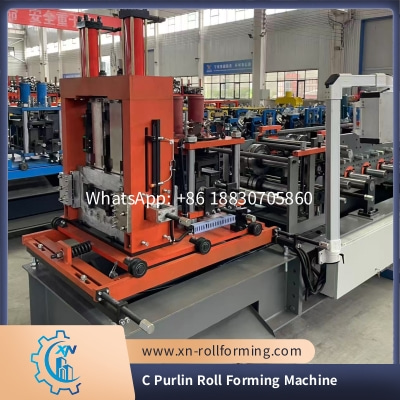

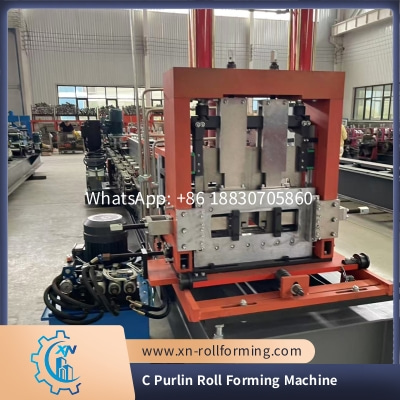

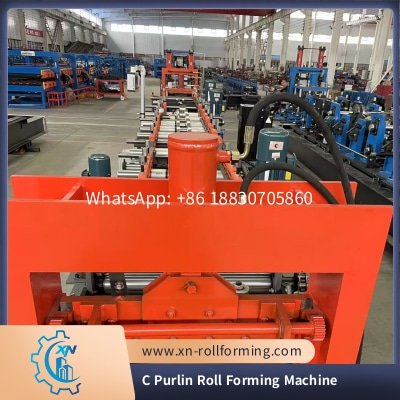

Xinnuo C Purlin Roll Forming Machine: Precision Engineering for Structural C Purlins
Xinnuo’s C Purlin Roll Forming Machine is a high-performance solution designed to produce top-quality C-shaped purlins, essential components in steel structures for roofs, walls, and mezzanines across industrial, commercial, and agricultural buildings. This machine merges flexibility, speed, and durability to meet the rigorous demands of modern construction manufacturing.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
At its core, the machine offers exceptional adaptability. The width of the feeding material can be tailored to your specific needs, eliminating restrictions on purlin dimensions. It processes material thicknesses ranging from 1.5mm to 3mm, with customization options available to handle unique gauge requirements, ensuring compatibility with both light and heavy-duty structural designs. This versatility makes it suitable for producing C purlins of various sizes to match diverse project specifications.

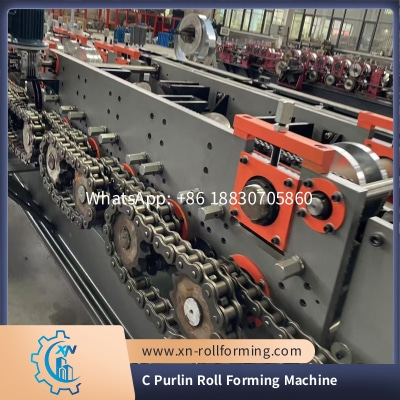

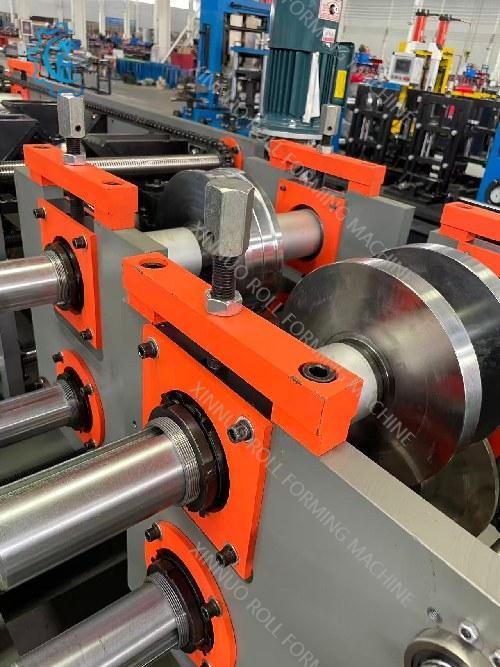

Equipped with 11-18 roller stations (customizable based on customer demands), the machine ensures gradual and precise forming of C-shaped profiles. This multi-stage rolling process eliminates deformities, guaranteeing uniform dimensions and consistent structural integrity—critical for load-bearing applications. The rollers, crafted from 45# steel, are chosen for their excellent wear resistance, maintaining precision even after extended use. Supported by shafts with a diameter of 70-80mm, they minimize vibration during operation, further enhancing forming accuracy.
Productivity is a standout feature, with a processing speed of 18-20 meters per minute. This high throughput enables large-volume production, making it ideal for meeting tight construction deadlines without compromising on quality. The machine is powered by a 22kw motor, delivering robust and consistent torque to handle thick-gauge materials effortlessly, ensuring smooth operation even under heavy workloads.
Built for long-term reliability, the main forming machine features a wall thickness of 12-18mm steel plate, while the main body is constructed from 300-400mm H-steel. These materials provide exceptional rigidity and resistance to deformation, preserving forming precision during high-speed operation. With a weight of approximately 9.8 tons, the machine offers superior stability, reducing operational vibrations and extending component lifespan.
The machine operates on a standard 380V 50Hz 3-phase power supply, but can be customized to match regional voltage requirements, ensuring seamless integration into production facilities worldwide. Xinnuo prioritizes customization, working closely with customers to adjust roller configurations, material handling capacities, and power setups to align with unique production needs—whether for standard industrial purlins or specialized architectural profiles.
Ideal for steel fabricators, prefabricated building manufacturers, and construction material suppliers, Xinnuo’s C Purlin Roll Forming Machine streamlines production processes while upholding the highest quality standards. It is more than just equipment; it is a reliable partner in creating strong, durable structures that stand the test of time.
