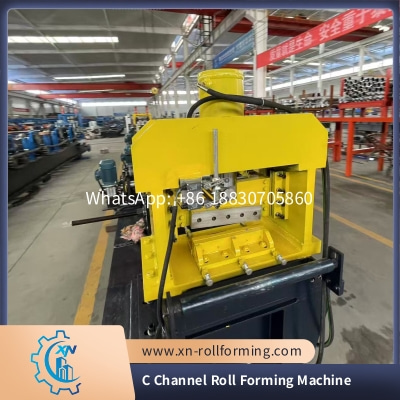

Xinnuo C Channel Roll Forming Machine: Precision for C-Shaped Steel Production
Xinnuo’s C Channel Roll Forming Machine is a specialized piece of equipment engineered exclusively for automatic C purlin roll forming, serving as a cornerstone for manufacturers in the steel structure, construction, and industrial machinery sectors. This machine combines advanced rolling technology with robust design, delivering consistent, high-quality C-shaped channels—essential components for reinforcing frameworks, supporting roofs, and assembling industrial equipment across residential, commercial, and industrial projects.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is a defining advantage, starting with its customizable feeding material width. Tailored exactly to your project’s unique specifications, this feature eliminates size limitations, enabling production of C channels in diverse dimensions—from compact profiles for light-duty frameworks to larger, heavy-duty options for industrial supports. It also handles feeding material thicknesses ranging from 1.5mm to 3mm, with further customization available to accommodate non-standard gauge demands, ensuring compatibility with both light and medium-duty structural applications.

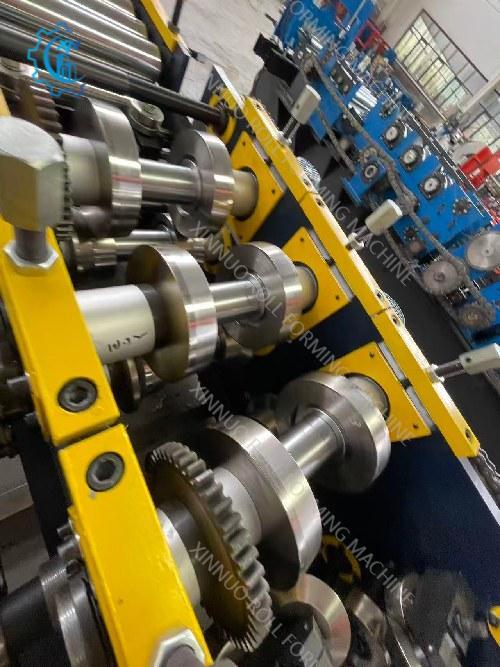

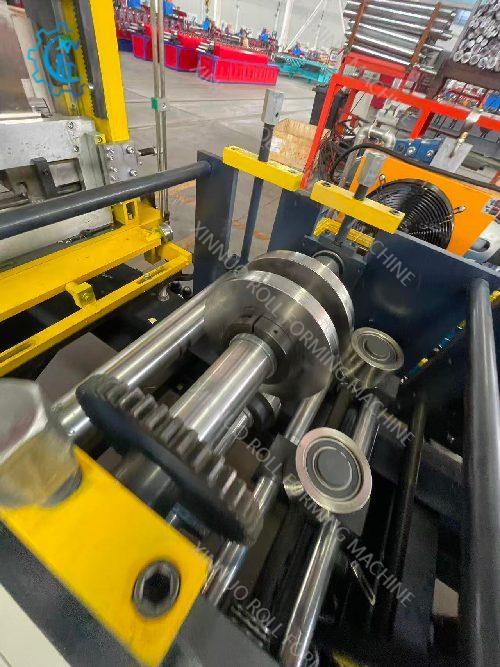

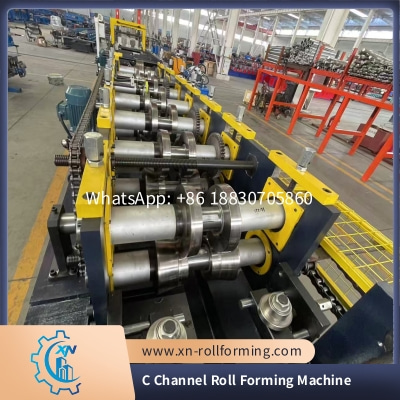

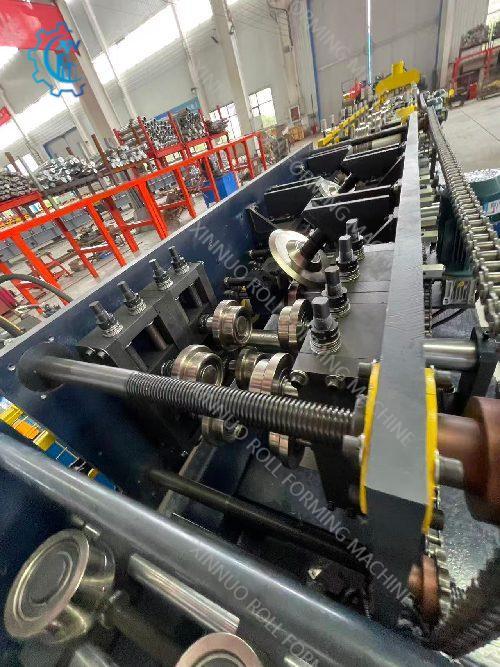

Precision in forming is guaranteed by its 11-18 roller stations, which can be fully adjusted or expanded based on customer needs. This multi-stage rolling system ensures gradual, uniform shaping of C channels, maintaining consistent dimensions and structural integrity that meet strict industry standards. The rollers, crafted from high-wear 45# steel, retain their precision even after prolonged high-volume operation, while 70-80mm diameter shafts minimize vibration during production—further enhancing the accuracy of each finished channel and reducing material waste.
Efficiency is a standout feature, with a productivity rate of 18-20 meters per minute. This high throughput allows manufacturers to meet tight project deadlines without compromising quality, making it ideal for large-scale orders or time-sensitive construction schedules. Powering this performance is a 22kw motor, which delivers stable, robust torque to handle thick-gauge materials smoothly, reducing downtime and optimizing overall production workflows.
Structural durability ensures long-term reliability. The main forming unit features 12-18mm thick steel plates for enhanced rigidity, while the machine’s main body is constructed from 300-400mm H steel—materials selected for their resistance to deformation under heavy loads. Weighing approximately 9.8 tons, the equipment maintains exceptional stability during high-speed operation, preventing shifts that could affect forming precision and extending its service life.
To adapt to global production environments, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical systems. Beyond power and dimensions, Xinnuo offers comprehensive customization services covering all parameters—from roller station configurations to control system settings—ensuring the machine aligns perfectly with your unique production needs.
Ideal for steel fabricators, construction material suppliers, and industrial equipment manufacturers, Xinnuo’s C Channel Roll Forming Machine is more than equipment: it’s a reliable partner in delivering consistent, high-quality C channels. Its blend of flexibility, precision, efficiency, and durability makes it a smart investment for businesses aiming to elevate their production capabilities and stay competitive in the fast-paced manufacturing and construction industries.
