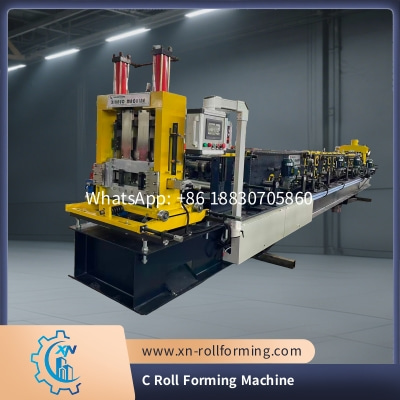

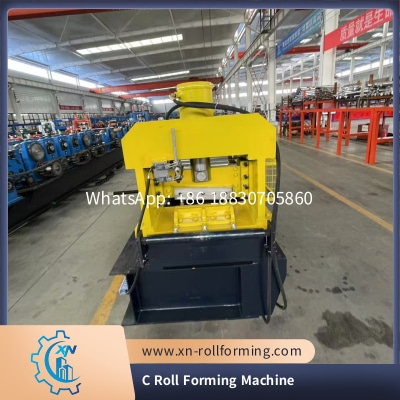

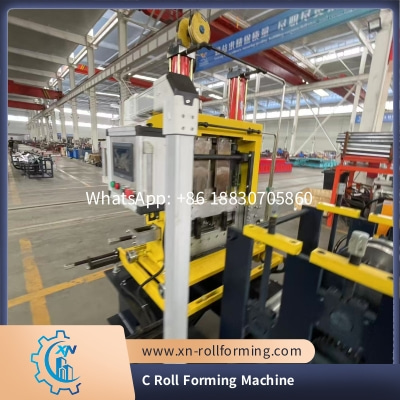

Xinnuo C Roll Forming Machine: Precision for Automatic C Purlin Production
Xinnuo’s C Roll Forming Machine is a specialized piece of equipment engineered exclusively for automatic C purlin roll forming, serving as a cornerstone for manufacturers in the steel structure, construction, and prefabricated building sectors. This machine merges advanced rolling technology with robust design to deliver consistent, high-quality C-shaped purlins—critical components for reinforcing roofs, walls, and frameworks in diverse architectural projects.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is at the heart of this machine’s design. The width of the feeding material can be tailored precisely to your requirements, eliminating constraints on purlin size and enabling production of custom dimensions that align with specific project needs. Whether you’re fabricating C purlins for small residential buildings or large industrial warehouses, this adaptability ensures seamless compatibility with varied design specifications. Additionally, the machine handles feeding material thicknesses ranging from 1.5mm to 3mm, with customization options available to accommodate unique gauge demands—making it suitable for both light and medium-duty structural applications.

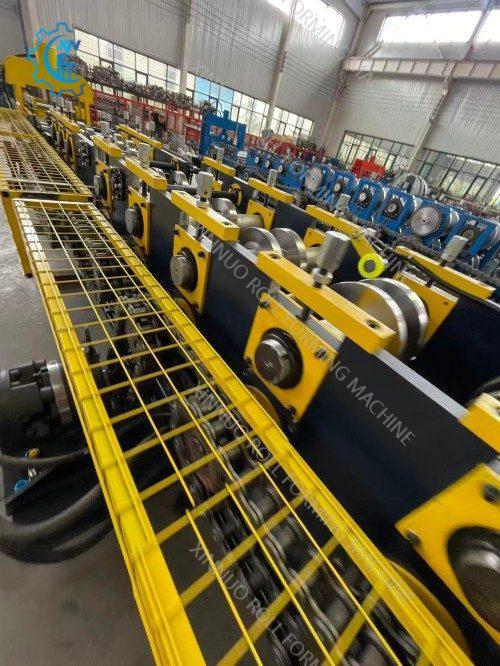

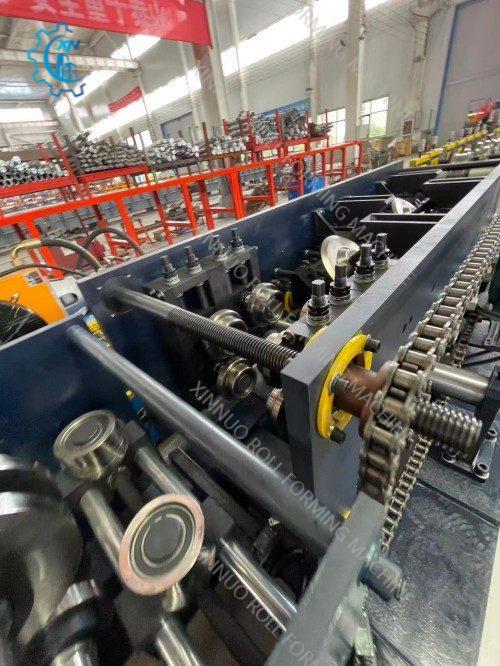

Precision and efficiency are defining features, supported by its 11-18 roller stations (with full customization per customer requests). This multi-stage rolling system ensures gradual, uniform forming of C purlins, guaranteeing consistent dimensions and structural integrity that meet industry standards. The rollers, crafted from 45# steel, offer exceptional wear resistance, maintaining precision even after prolonged high-volume operation. Complemented by 70-80mm diameter shafts, the rolling system minimizes vibration during production, further enhancing the accuracy of each finished purlin.

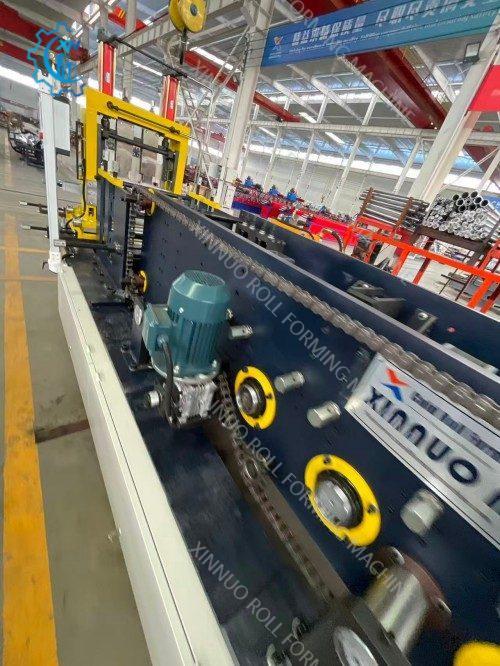

With a productivity rate of 18-20 meters per minute, the machine delivers high-volume output to meet tight project deadlines without compromising quality. This efficiency is powered by a 22kw motor, which provides stable, robust torque to handle thick-gauge materials smoothly—reducing downtime and optimizing overall production workflows.
Structural durability ensures long-term reliability. The main forming unit features 12-18mm thick steel plates, while the machine’s main body is constructed from 300-400mm H steel—materials selected for their rigidity and resistance to deformation. Weighing approximately 9.8 tons, the machine maintains exceptional stability during high-speed operation, preventing shifts that could affect forming precision and extending the equipment’s service life.
To adapt to global production needs, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical requirements. Beyond power and dimensions, Xinnuo offers comprehensive customization services covering all parameters—from roller station configurations to material handling capacities—ensuring the machine aligns perfectly with your unique production workflows.
Ideal for steel fabricators, construction material suppliers, and prefab manufacturers, Xinnuo’s C Roll Forming Machine is more than equipment: it’s a reliable partner in delivering consistent, high-quality C purlins that form the backbone of durable, safe structures. Its blend of flexibility, precision, and durability makes it a smart investment for businesses aiming to elevate their production capabilities.
