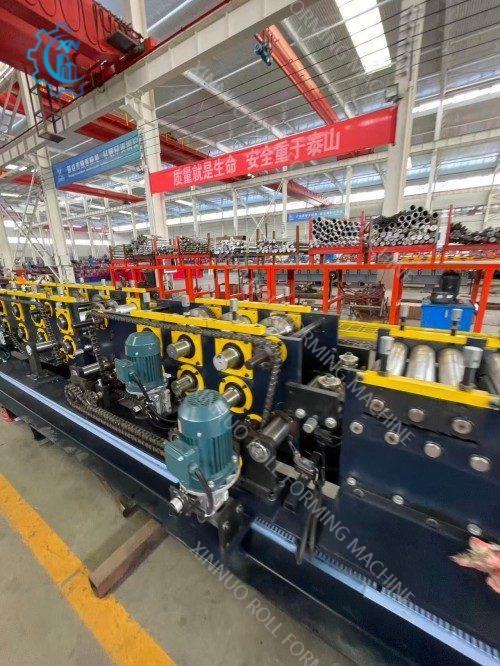

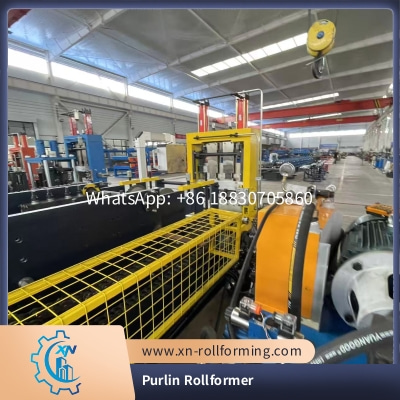

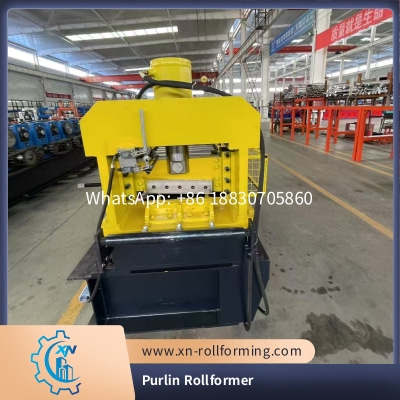

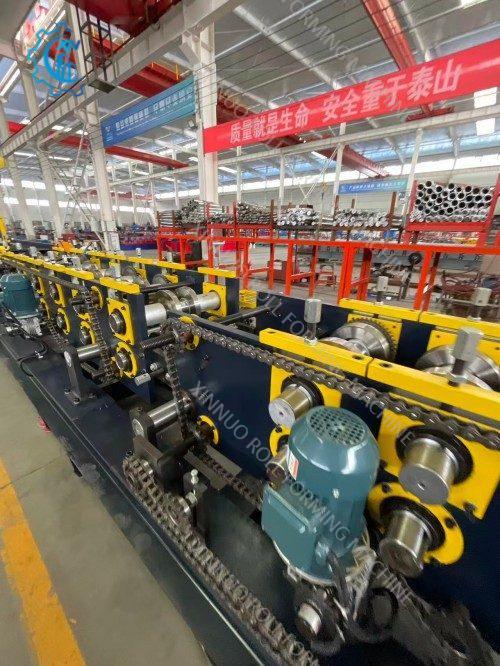

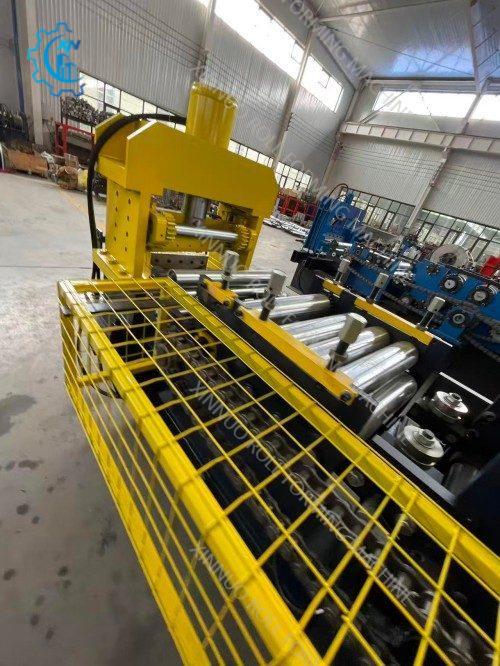

Xinnuo Purlin Rollformer: Precision Equipment for Automatic C Purlin Production
Xinnuo’s Purlin Rollformer is a specialized device engineered exclusively for automatic C purlin roll forming, serving as a cornerstone for manufacturers in the steel structure, construction, and prefabricated building sectors. This rollformer combines advanced rolling technology with robust craftsmanship, delivering consistent, high-quality C-shaped purlins—essential load-bearing components for roofs, walls, and frameworks in residential, commercial, and industrial projects.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is a core strength, starting with its customizable feeding material width. Tailored exactly to your project requirements, this feature eliminates size limitations, enabling production of C purlins in diverse dimensions—whether for compact residential structures or large-scale industrial warehouses. It also handles feeding material thicknesses ranging from 1.5mm to 3mm, with customization options available to accommodate unique gauge demands, ensuring compatibility with both light and medium-duty structural applications.

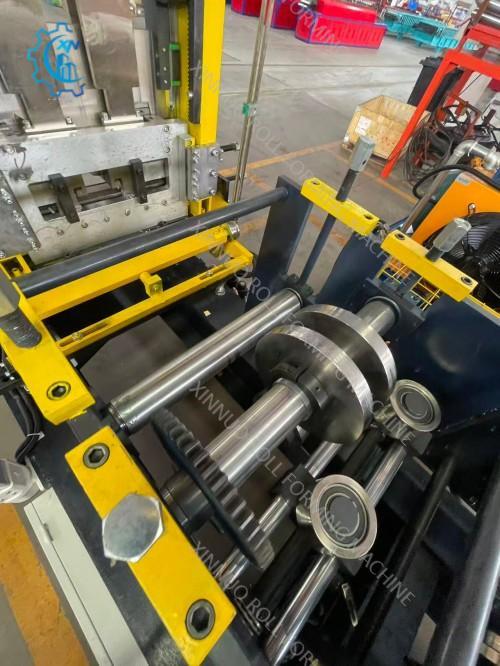

Precision in forming is guaranteed by its 11-18 roller stations, with full customization permitted based on customer needs. This multi-stage rolling system ensures gradual, uniform shaping of C purlins, maintaining consistent dimensions and structural integrity that meet strict industry standards. The rollers, crafted from 45# steel, offer exceptional wear resistance, preserving precision even after prolonged high-volume operation. Complemented by 70-80mm diameter shafts, the rolling unit minimizes vibration during production, further enhancing the accuracy of each finished purlin.

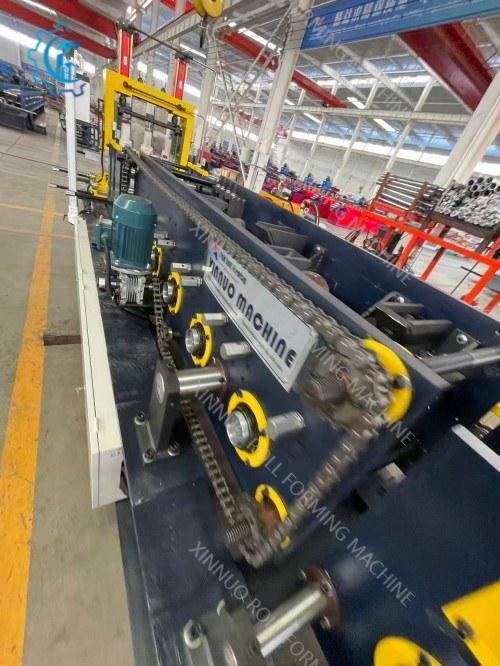

Efficiency is a standout feature, with a productivity rate of 18-20 meters per minute—enabling high-volume output to meet tight project deadlines without compromising quality. This performance is powered by a 22kw motor, which delivers stable, robust torque to handle thick-gauge materials smoothly, reducing downtime and optimizing overall production workflows.
Structural durability ensures long-term reliability. The main forming unit features 12-18mm thick steel plates, while the rollformer’s main body is constructed from 300-400mm H steel—materials selected for their rigidity and resistance to deformation. Weighing approximately 9.8 tons, the equipment maintains exceptional stability during high-speed operation, preventing shifts that could affect forming precision and extending its service life.
To adapt to global production environments, the rollformer operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical requirements. Beyond power and dimensions, Xinnuo offers comprehensive customization services covering all parameters—from roller station configurations to material handling capacities—ensuring the equipment aligns perfectly with your unique production needs.
Ideal for steel fabricators, construction material suppliers, and prefab manufacturers, Xinnuo’s Purlin Rollformer is more than equipment: it’s a reliable partner in delivering consistent, high-quality C purlins. Its blend of flexibility, precision, efficiency, and durability makes it a smart investment for businesses aiming to elevate their C purlin production capabilities.
