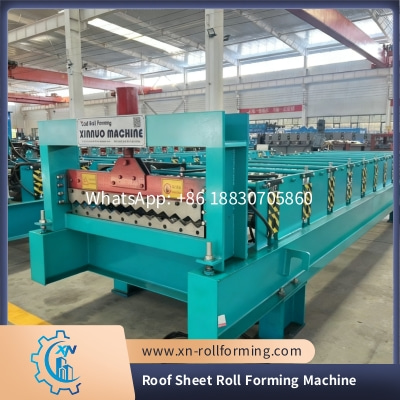

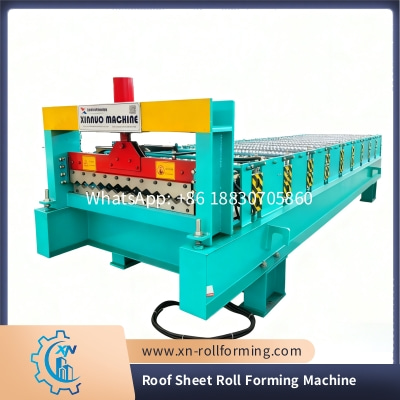

Xinnuo Roof Sheet Roll Forming Machine: Precision Roll-Forming for Color Steel Roofs
Xinnuo’s Roof Sheet Roll Forming Machine is a specialized equipment engineered for roll-forming color steel plates into high-quality roof sheets, designed to serve construction, prefabricated housing, and industrial roofing sectors. This machine leverages advanced roll-forming technology to deliver consistent, durable roof panels—blending aesthetic appeal with weather resistance, ideal for residential buildings, commercial warehouses, and temporary construction shelters.
Flexibility in material handling is a key strength. The machine supports color steel plates with five common width options (914mm, 1000mm, 1200mm, 1220mm, 1250mm) and a thickness range of 0.3-0.8mm, enabling production of roof sheets tailored to diverse project sizes. This adaptability minimizes raw material waste and eliminates the need for multiple machines, streamlining production workflows. It is equipped with a manual decoiler capable of loading 5 tons of raw material, ensuring continuous feeding during high-volume roll-forming and reducing downtime for material replacement.

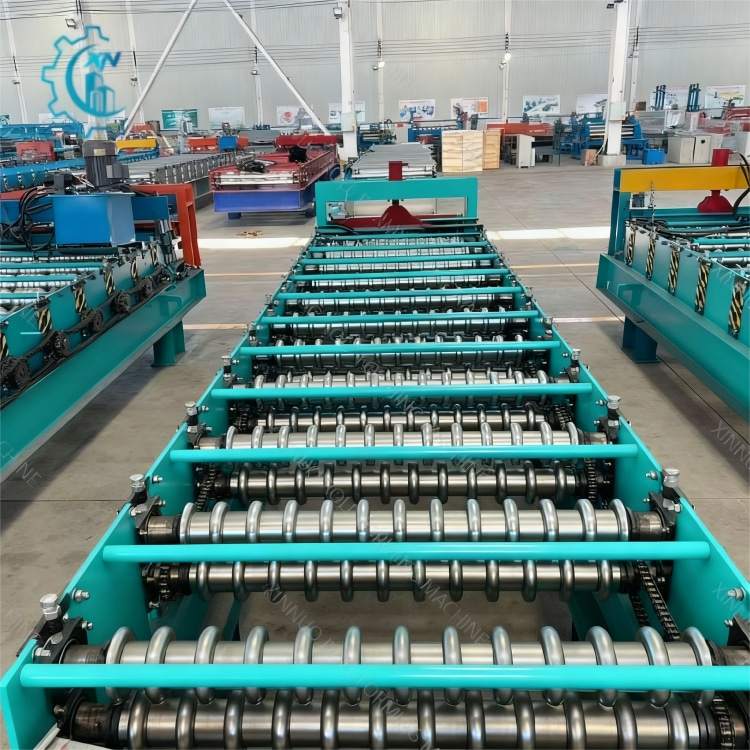

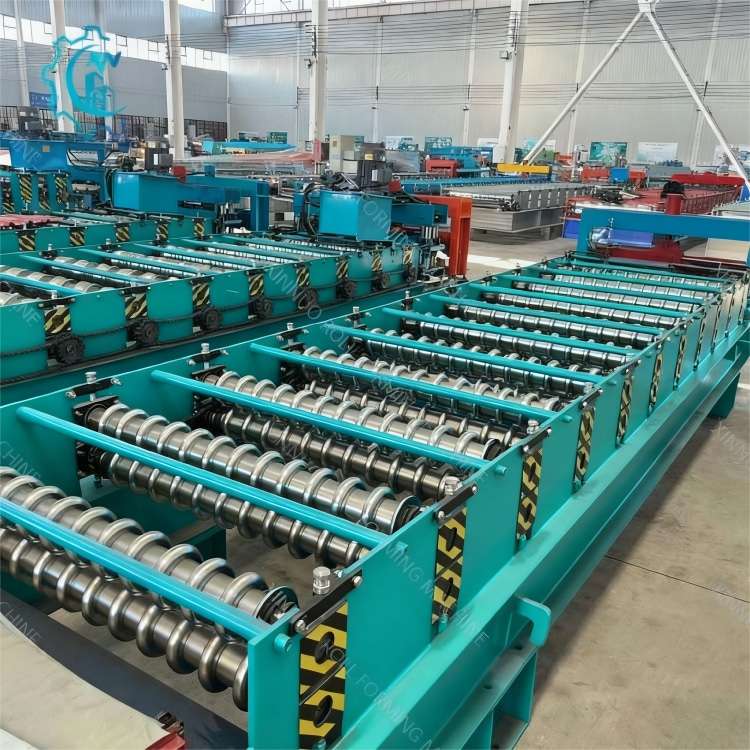

Precision in roll-forming is guaranteed by its 16 rows of forming rollers. Each roller—with an 80mm diameter and crafted from Carbon Steel 45#—offers exceptional wear resistance and rigidity, maintaining uniform roof sheet shapes and preserving the color steel’s surface coating even after prolonged operation. The multi-stage roll-forming process avoids material deformation, ensuring each roof panel meets strict dimensional standards.

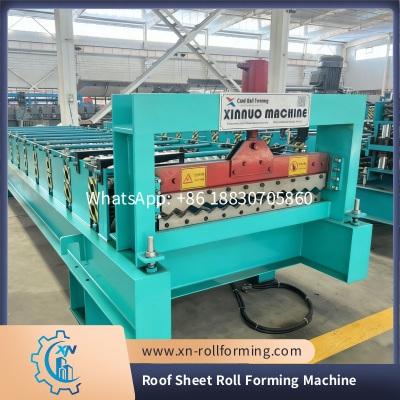

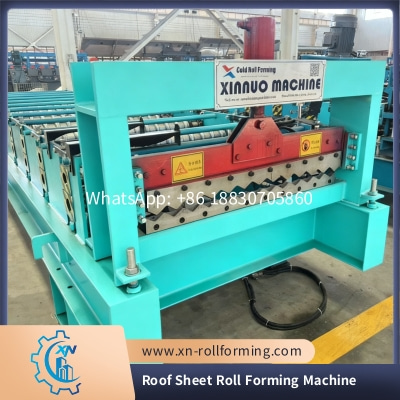

Efficiency and accuracy are further enhanced by integrated systems. A 5.5kw main motor provides stable power for smooth roll-forming, while the Delta PLC control system enables automated parameter adjustment—simplifying operation and ensuring processing precision within 1.00mm. The machine’s cutting system complements its performance: powered by a 4kw hydraulic unit and fitted with a Cr12 mov blade (known for superior hardness), it delivers clean, burr-free cuts that avoid damaging the roof sheet’s structural integrity.
Structural durability ensures long-term reliability. The machine’s side panels are 16mm thick, and its main structure is built with 350 H steel—materials selected for strong load-bearing capacity and resistance to vibration during roll-forming. Weighing approximately 5 tons and measuring 8.5m×1.6m×1.6m, it balances stability at high speeds with space efficiency, fitting easily into standard factory layouts without extensive facility adjustments.
To adapt to global operations, the machine operates on a standard 380V 50Hz 3-phase power supply (voltage customizable for regional needs) and holds CE/ISO certifications, verifying compliance with international quality and safety standards. Beyond standard configurations, Xinnuo offers comprehensive customization—from adjusting roller patterns to modifying cutting lengths—tailoring the machine to unique roof sheet design requirements.
Ideal for roofing material manufacturers, construction firms, and prefab builders, Xinnuo’s Roof Sheet Roll Forming Machine blends flexibility, precision, and durability. It is more than equipment: it’s a reliable partner in producing high-quality roof sheets that enhance the longevity and functionality of any roofing structure.
