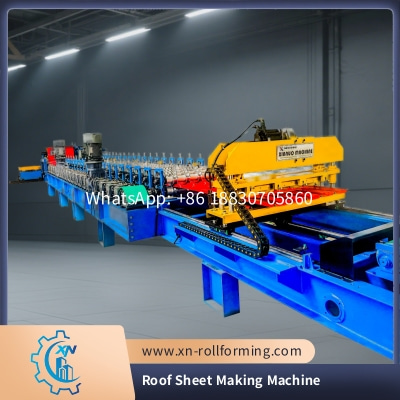

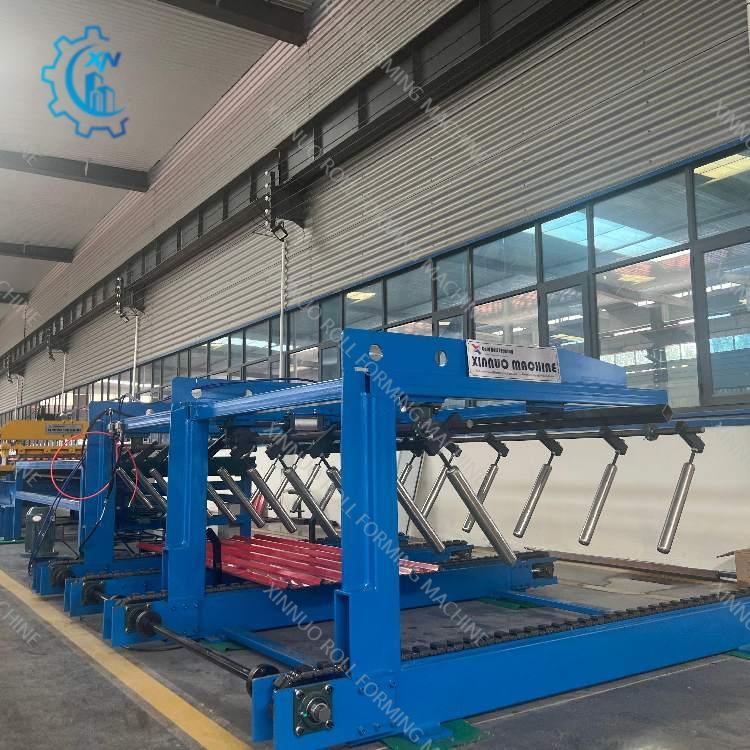

Xinnuo Roof Sheet Making Machine: Precision for Color Steel Roof Production
Xinnuo’s Roof Sheet Making Machine is a specialized equipment engineered exclusively for processing color steel plates into high-quality roof sheets, designed to serve the construction, prefabricated housing, and industrial roofing sectors. This machine integrates advanced forming technology with robust craftsmanship, delivering consistent, durable roof sheets that balance weather resistance, aesthetic appeal, and easy installation—ideal for residential buildings, commercial warehouses, and temporary construction shelters.
Flexibility in material handling is a key advantage. The machine supports color steel plates with five common width options: 914mm, 1000mm, 1200mm, 1220mm, and 1250mm, and a thickness range of 0.3-0.8mm. This adaptability allows production of roof sheets tailored to diverse project sizes, minimizing raw material waste and meeting varied architectural requirements. It is equipped with a manual decoiler capable of loading 5 tons of raw material, ensuring continuous feeding during high-volume production and reducing downtime for material replacement.

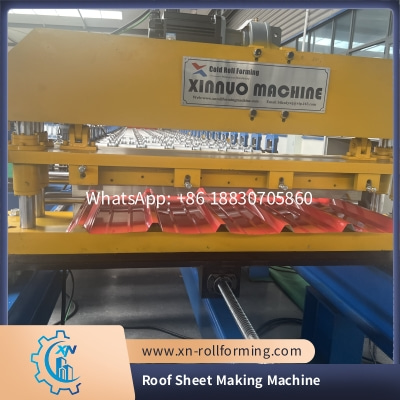

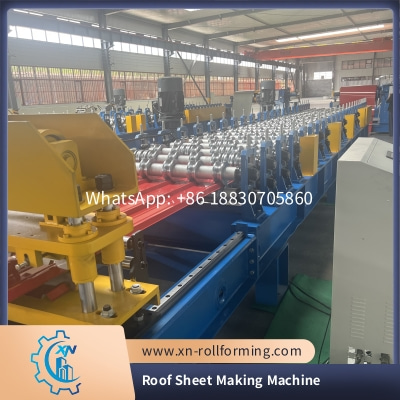

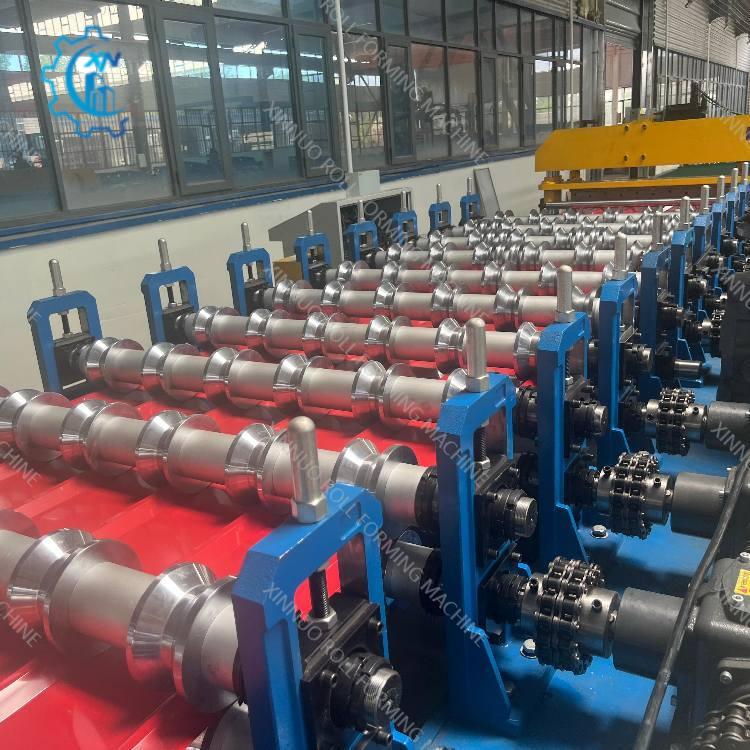

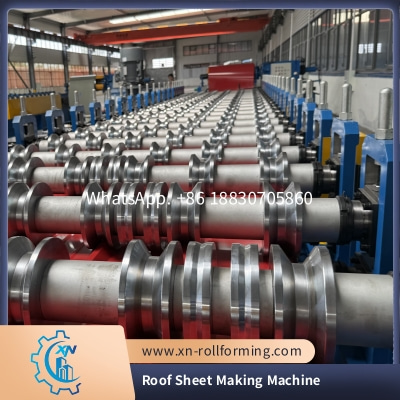

Precision in forming is guaranteed by its 16 rows of forming rollers. Each roller, with an 80mm diameter and crafted from carbon steel 45#, offers exceptional wear resistance and rigidity—maintaining uniform roof sheet shapes and preserving the color steel’s surface coating even after prolonged operation. The integrated cutting system enhances efficiency: powered by a 4kw hydraulic unit and fitted with a Cr12 mov blade (known for superior hardness), it delivers clean, burr-free cuts that avoid damage to the roof sheet’s structure.

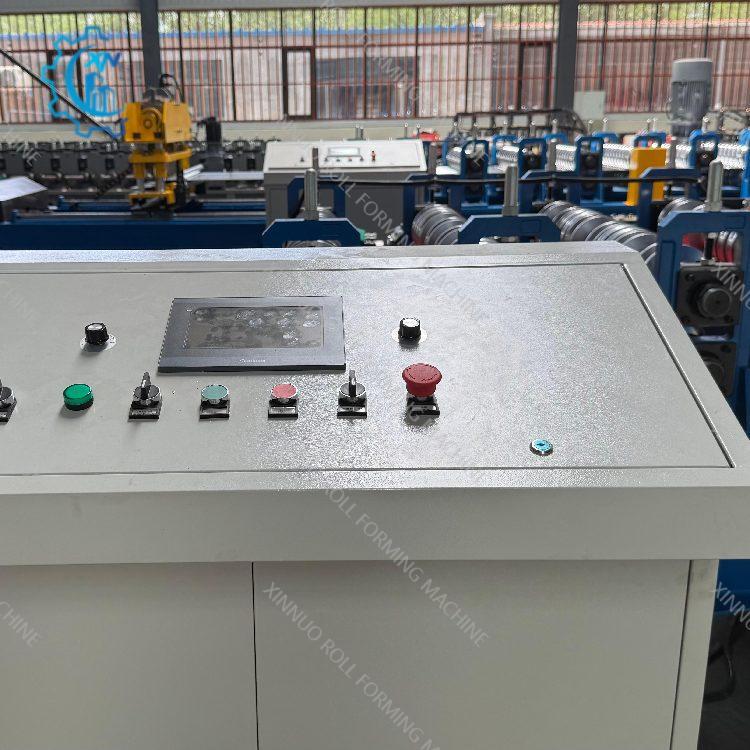

Efficiency and accuracy are further boosted by its technical configuration. A 5.5kw main motor provides stable power for the forming process, while the Delta PLC control system enables automated parameter adjustment—minimizing manual intervention and ensuring processing precision within 1.00mm. This level of accuracy is critical for seamless on-site installation, reducing the need for on-site modifications and improving construction efficiency.

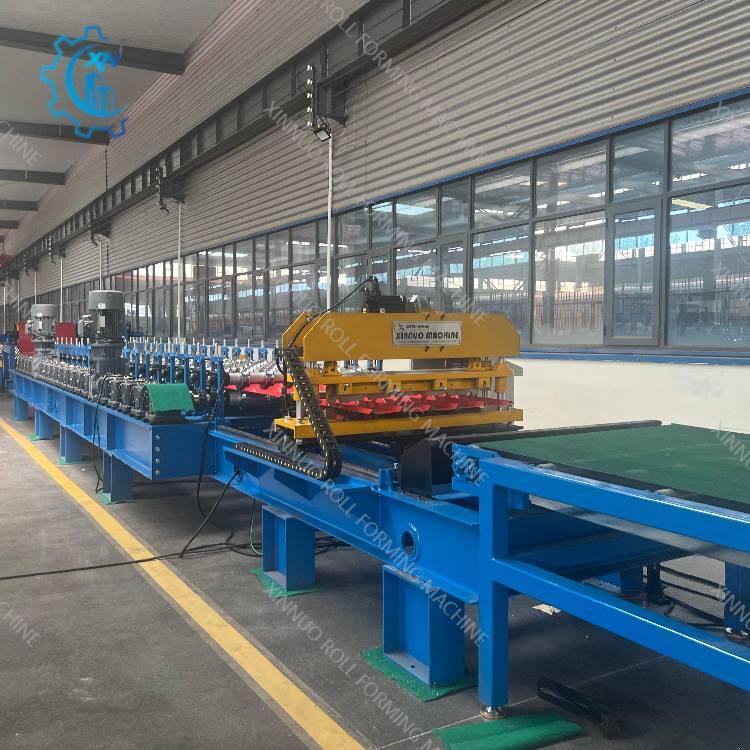

Structural durability ensures long-term reliability. The machine’s side panels are 16mm thick, and its main structure is built with 350 H steel—materials selected for strong load-bearing capacity and resistance to vibration. Weighing approximately 5 tons and measuring 8.5m×1.6m×1.6m, it balances stability during high-speed operation with space efficiency, fitting easily into standard factory layouts without requiring extensive facility adjustments.
To adapt to global operations, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical systems. It also holds CE and ISO certifications, verifying compliance with international quality and safety standards. Beyond standard configurations, Xinnuo offers comprehensive customization services—covering roller patterns, cutting lengths, and control settings—to meet unique roof sheet design demands.
Ideal for roofing material manufacturers, construction firms, and prefab builders, Xinnuo’s Roof Sheet Making Machine blends flexibility, precision, and durability. It is more than equipment: it’s a reliable partner in producing high-quality roof sheets that enhance the longevity and functionality of any roofing structure.
