| Item | Specification |
|---|---|
| Profile Type | IBR Trapezoidal Roof Sheet |
| Material Thickness | 0.3 – 0.8 mm |
| Forming Speed | 12 – 20 m/min |
| Roller Stations | 16 – 20 stations |
| Main Motor Power | 7.5 – 15 kW |
This IBR roof sheeting machine is designed for stable, high-precision production of trapezoidal roof sheets widely used in European and African roofing systems, offering consistent profile accuracy and long service life.
| Item | Specification |
|---|---|
| Applicable Material | Galvanized steel, PPGI, PPGL |
| Yield Strength | 235 – 350 MPa |
| Material Thickness | 0.3 – 0.8 mm |
| Effective Width | Customized according to IBR profile |
| Roller Material | High-grade 45# steel, heat treated |
| Roller Stations | 16 – 20 |
| Shaft Diameter | 70 – 90 mm |
| Main Motor Power | 7.5 – 15 kW |
| Cutting Type | Hydraulic post-cutting |
| Cutting Tolerance | ±1.0 mm |
| Control System | PLC with touchscreen |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |

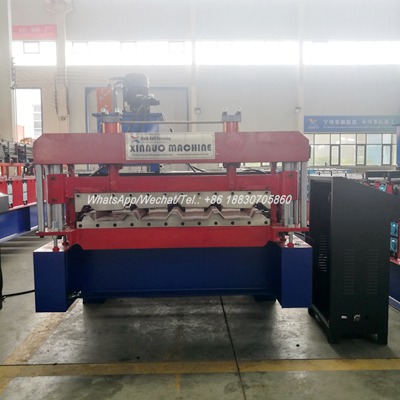

The IBR roof sheet making machine is a professional trapezoidal roll forming machine developed for continuous production of IBR roof sheeting used in industrial, commercial, and agricultural roofing systems. This type of profile is widely adopted in French-speaking markets due to its structural strength, water drainage performance, and compatibility with standard steel building systems

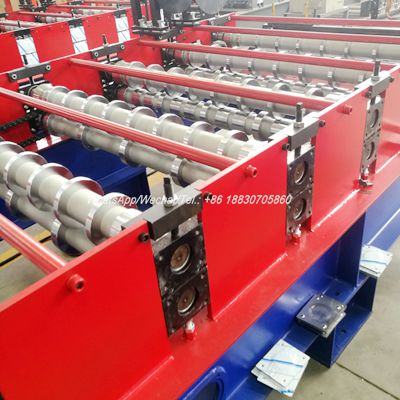

Designed with a rigid forming structure, the IBR roll forming machine ensures stable operation even under long production cycles. High-precision rollers and shafts maintain consistent profile geometry, reducing material waste and ensuring uniform sheet quality. The machine supports a wide range of material thicknesses, making it suitable for different project requirements and roofing specifications

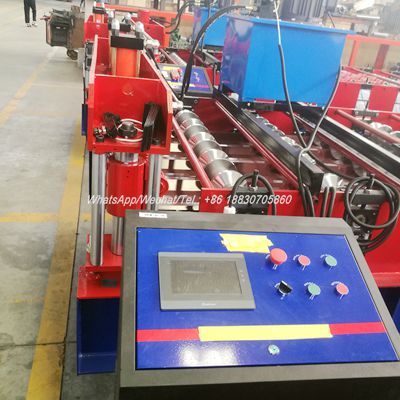

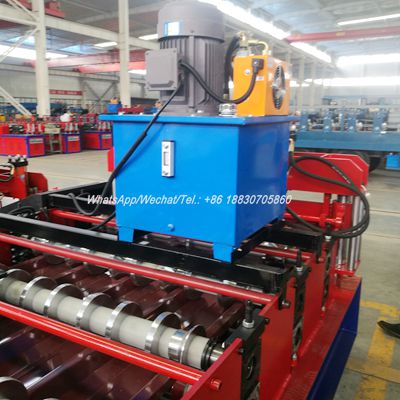

The integrated PLC control system allows operators to easily adjust production length, cutting accuracy, and forming speed. Hydraulic post-cutting guarantees clean edges and minimizes deformation, which is essential for roof installation and panel alignment. This ibr roof sheeting machine for sale is engineered to meet the expectations of professional roofing manufacturers in Europe and Africa
Compared with conventional machines, this trapezoidal roll forming machine offers improved durability, simplified maintenance, and stable output quality. Customers seeking a competitive ibr roof sheet making machine price will benefit from a balanced combination of performance, reliability, and long-term operational value
