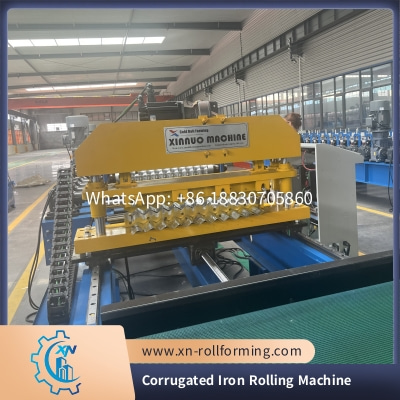

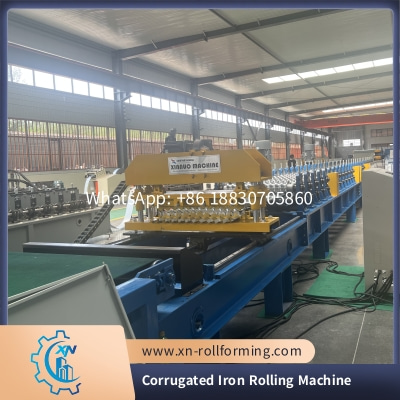

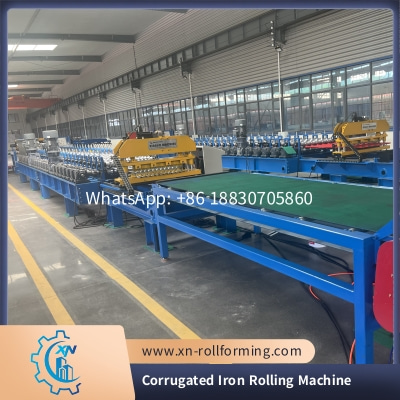

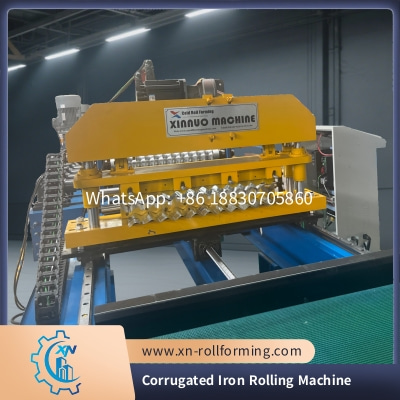

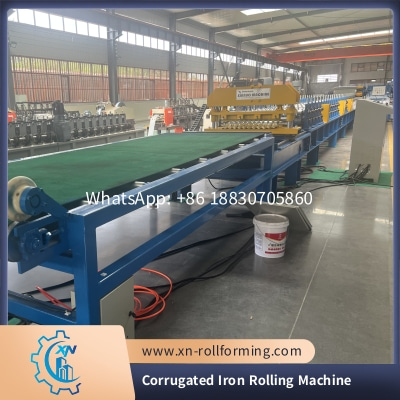

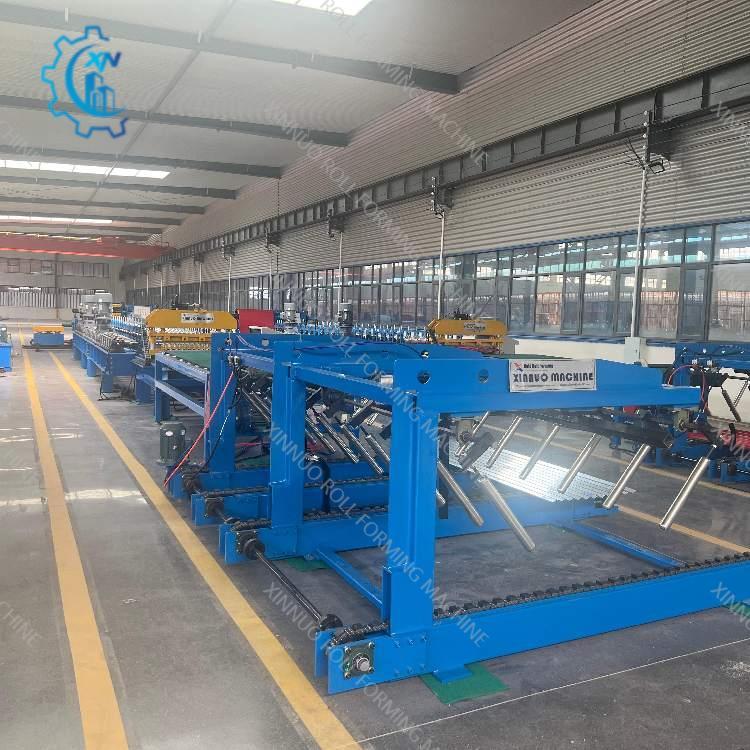

Xinnuo Corrugated Iron Rolling Machine: Precision for Color Steel Corrugation
Xinnuo’s Corrugated Iron Rolling Machine is a specialized equipment engineered for processing color steel plates into high-quality corrugated iron, designed to serve construction, prefabricated housing, and industrial roofing sectors. This machine combines advanced rolling technology with robust craftsmanship, delivering consistent, durable corrugated iron that balances weather resistance and aesthetic appeal—ideal for residential roofs, warehouse coverings, and temporary construction shelters.
Flexibility in material handling stands out as a key strength. The machine supports color steel plates with five width options: 914mm, 1000mm, 1200mm, 1220mm, and 1250mm, and a thickness range of 0.3-0.8mm, enabling production of diverse corrugated iron sizes to match project-specific requirements. It is equipped with a manual decoiler capable of loading 5 tons of raw material, ensuring continuous feeding during high-volume production and reducing downtime for material replacement.

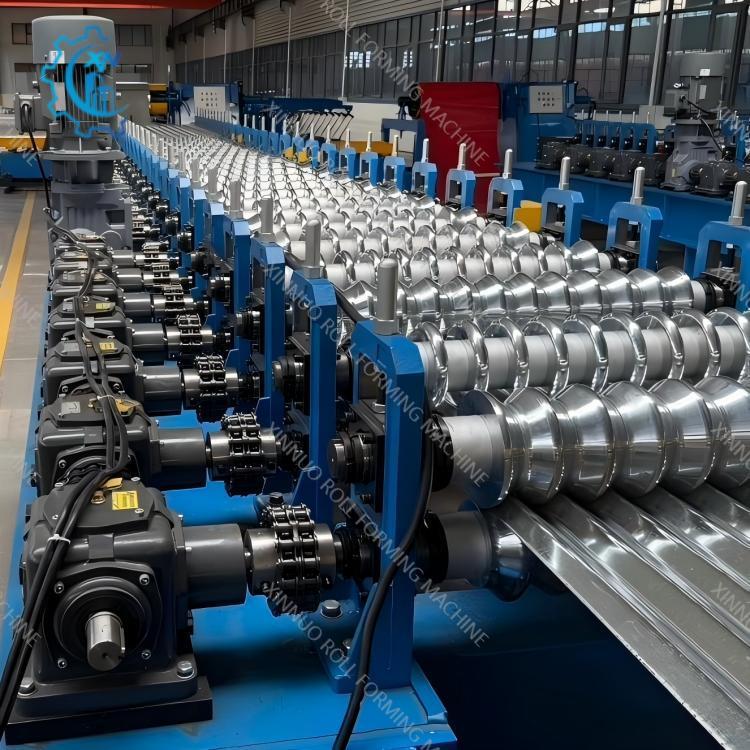

Precision in rolling forming is guaranteed by its 16 rows of forming rollers. Each roller, with an 80mm diameter and crafted from carbon steel 45#, offers exceptional wear resistance and rigidity—maintaining uniform corrugation shapes even after prolonged operation. This multi-stage rolling process avoids material deformation or surface damage, preserving the color steel’s coating integrity.
Efficiency and accuracy are enhanced by its integrated systems. A 5.5kw main motor provides stable power for the rolling process, while a 4kw hydraulic cutting system—equipped with a Cr12 mov blade (known for superior hardness)—delivers clean, burr-free cuts. The Delta PLC control system enables automated parameter adjustment, minimizing manual intervention and ensuring processing precision within 1.00mm—critical for seamless on-site installation of corrugated iron.
Structural durability ensures long-term reliability. The machine’s side panels are 16mm thick, and its main structure is built with 350 H steel—materials selected for strong load-bearing capacity and resistance to vibration. Weighing approximately 5 tons and measuring 8.5m×1.6m×1.6m, it balances stability during high-speed rolling with space efficiency, fitting easily into standard factory layouts.
To adapt to global operations, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available for regional electrical needs. It also holds CE and ISO certifications, verifying compliance with international quality and safety standards. Beyond standard configurations, Xinnuo offers comprehensive customization services—covering roller patterns, cutting lengths, and control settings—to meet unique corrugated iron design demands.
Ideal for roofing material manufacturers, construction firms, and prefab builders, Xinnuo’s Corrugated Iron Rolling Machine blends flexibility, precision, and durability. It is more than equipment: it’s a reliable partner in producing high-quality corrugated iron that enhances the longevity and functionality of any roofing structure.
