| Item | Specification |
|---|---|
| Material Thickness | 0.4 – 1.2 mm |
| Material Type | GI, PPGI, Galvanized Steel |
| Forming Speed | 10 – 25 m/min |
| Main Motor Power | 7.5 – 15 kW |
| Control System | PLC with Touch Screen |

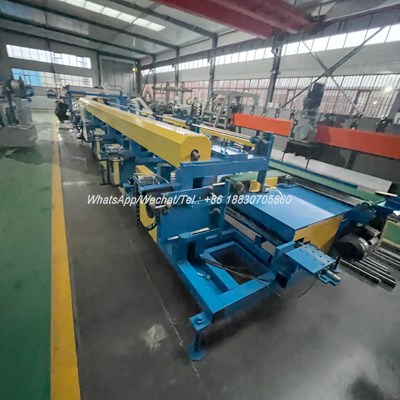

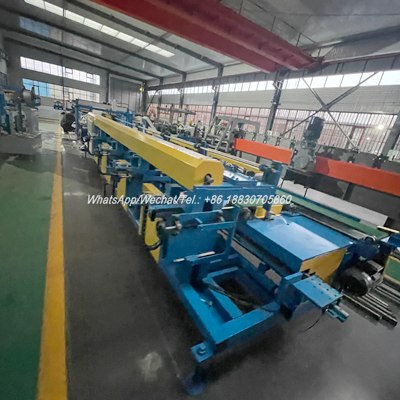

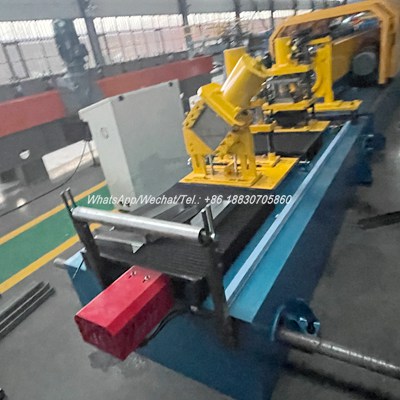

This new light keel roll forming machine is designed for high-precision production of metal studs and tracks used in light gauge steel framing systems. The machine offers stable forming accuracy, flexible profile adjustment, and reliable performance suitable for continuous industrial production.
| Parameter | Range / Description |
|---|---|
| Machine Type | Light Gauge Steel Framing Machine |
| Application | Stud & Track, Light Keel, Drywall Framing |
| Material Width | 80 – 350 mm |
| Material Thickness | 0.4 – 1.2 mm |
| Yield Strength | G250 – G550 MPa |
| Roll Stations | 10 – 18 stations |
| Shaft Diameter | 65 – 80 mm |
| Roller Material | Cr12, heat treated |
| Cutting Type | Hydraulic flying cut |
| Cutting Tolerance | ±1.0 mm |
| Electrical Standard | 380V / 50–60Hz / 3 Phase |
| Control System | PLC automatic control |
| Production Speed | Up to 25 m/min |
| Machine Frame | Heavy welded steel frame |
| Profile Change | Manual or semi-automatic |
| Safety System | Emergency stop & overload protection |

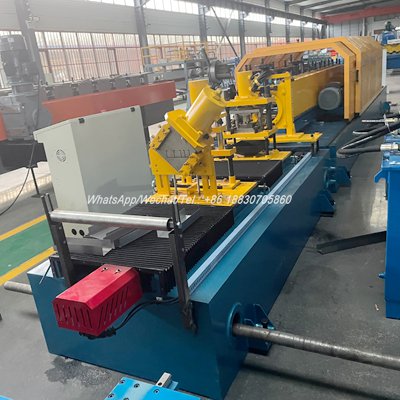

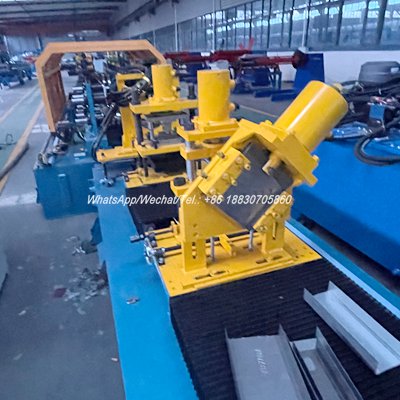

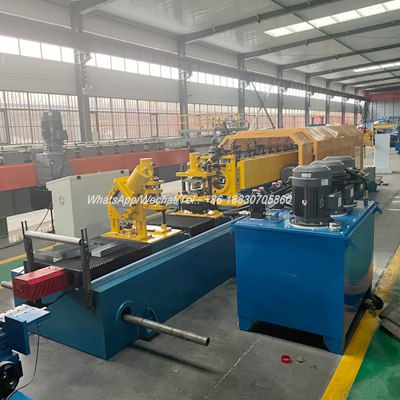

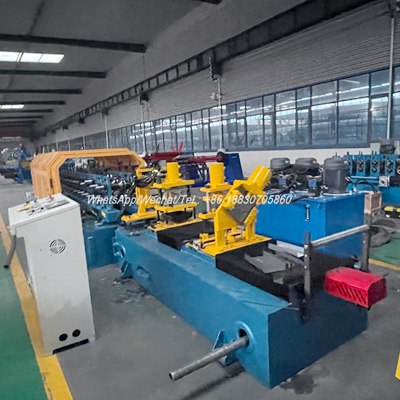

The new-light-keel-roll-forming-machine is a professional Light Gauge Steel Framing Machine developed for efficient production of metal studs and tracks used in modern construction systems. It is widely applied in residential, commercial, and industrial building projects where lightweight steel framing structures are required.

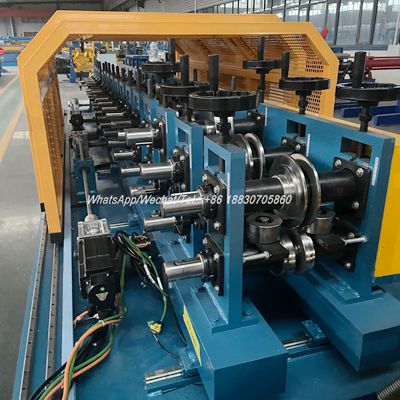

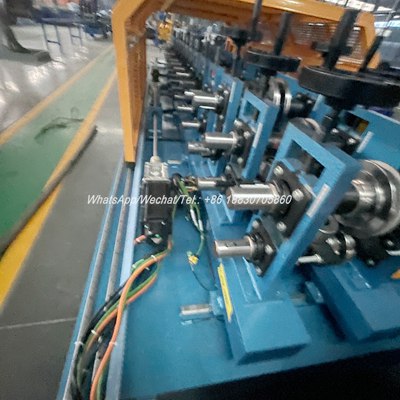

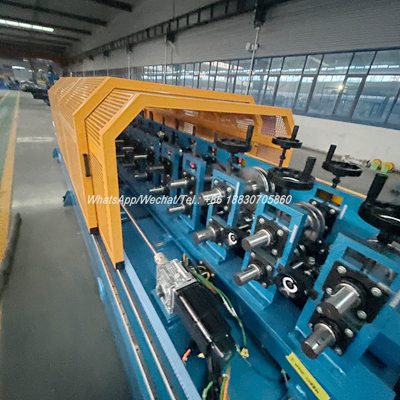

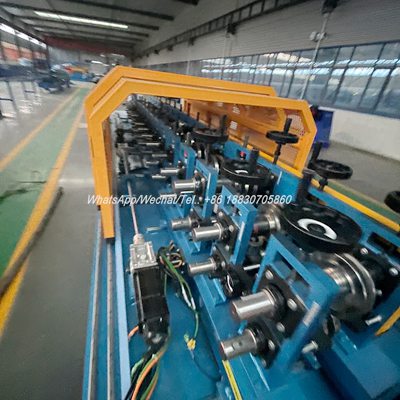

This stud making machine is engineered to process galvanized steel with thickness ranging from 0.4 to 1.2 mm, ensuring compatibility with different market standards and construction requirements. The roll forming section adopts precision-machined rollers and hardened shafts to guarantee consistent profile accuracy and long-term operational stability.

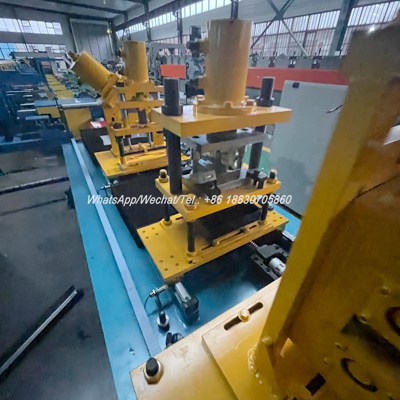

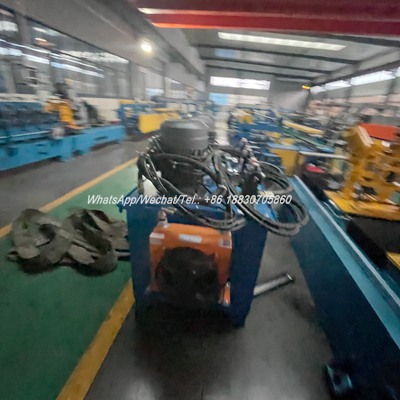

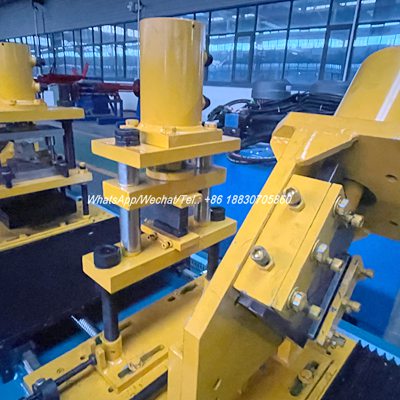

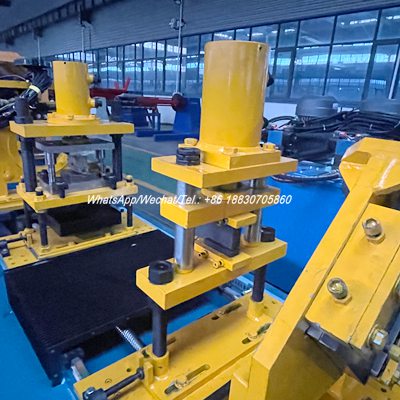

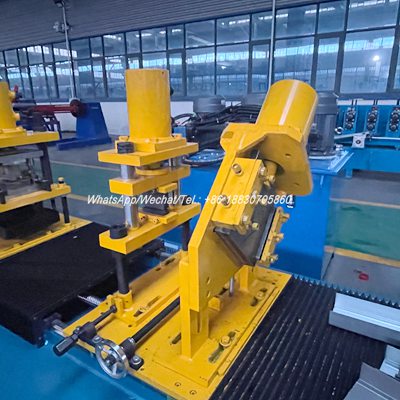

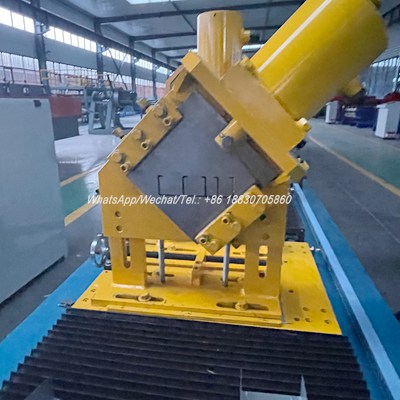

The metal stud and track roll forming machine features a PLC control system with an intuitive touch screen, allowing operators to easily adjust production length, speed, and cutting parameters. The hydraulic flying cut system ensures smooth and accurate cutting without stopping the production line, improving efficiency and reducing material waste.
Designed with a reinforced machine frame and optimized forming stations, this equipment delivers stable performance even under continuous high-load operation. Optional punching units, logo embossing, and multi-profile forming configurations can be customized according to customer requirements, making the machine suitable for various light steel framing standards in different regions.
With reliable quality, flexible configuration, and competitive operating cost, this Light Gauge Steel Framing Machine is an ideal solution for manufacturers supplying drywall systems, partition walls, and ceiling frameworks.
