| Item | Specification |
|---|---|
| Profile Type | Glazed / Metal Roof Tile |
| Material Thickness | 0.3 – 0.8 mm |
| Forming Speed | 8 – 15 m/min |
| Roller Stations | 18 – 24 |
| Main Motor Power | 7.5 – 18 kW |

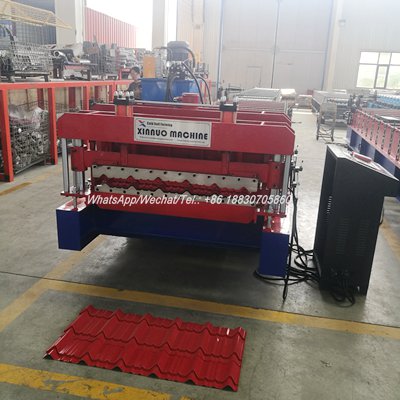

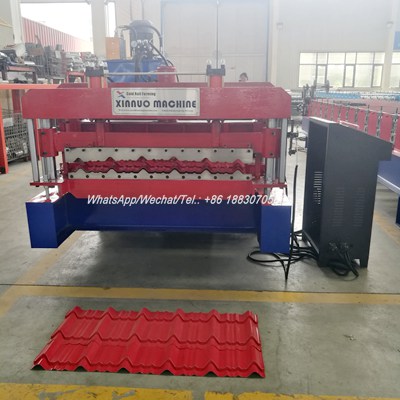

This glazed tile roll forming machine is designed for high-precision production of decorative metal roof tiles, widely used in residential, villa, and high-end roofing projects, offering aesthetic appearance and durable performance.
| Item | Specification |
|---|---|
| Applicable Material | Galvanized steel, Color-coated steel (PPGI/PPGL) |
| Yield Strength | 235 – 350 MPa |
| Material Thickness | 0.3 – 0.8 mm |
| Effective Width | According to glazed tile profile |
| Roller Material | High-grade 45# steel, heat treated |
| Roller Stations | 18 – 24 |
| Shaft Diameter | 70 – 90 mm |
| Main Motor Power | 7.5 – 18 kW |
| Cutting Type | Hydraulic post-cutting |
| Cutting Tolerance | ±1.0 mm |

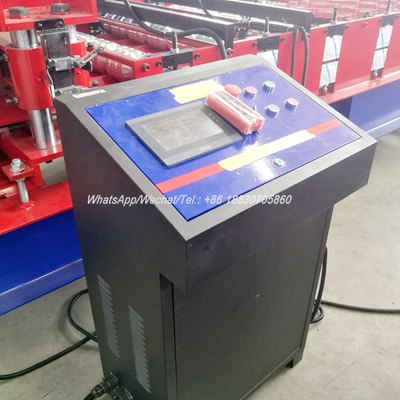

| Control System | PLC with touchscreen |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |

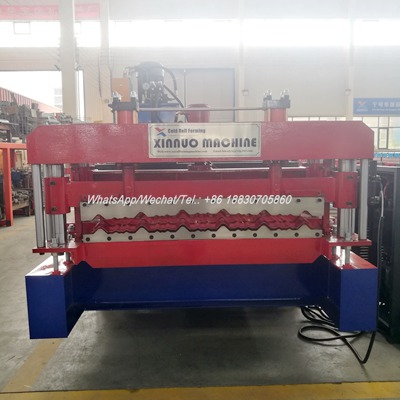

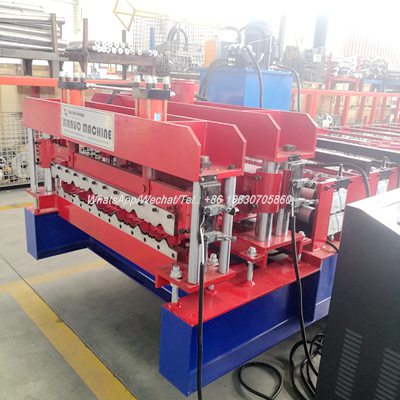

The glazed tile roll forming machine is a professional production line for manufacturing high-quality decorative roof tiles. These tiles are widely applied in residential houses, villas, commercial buildings, and light architectural projects, combining the aesthetics of clay tiles with the durability of steel.

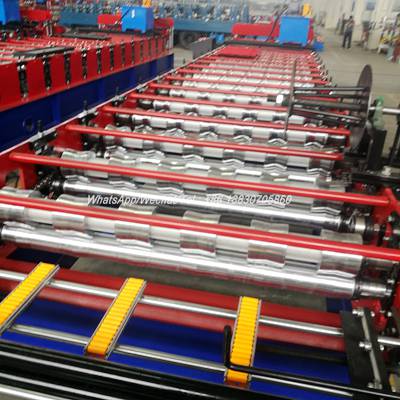

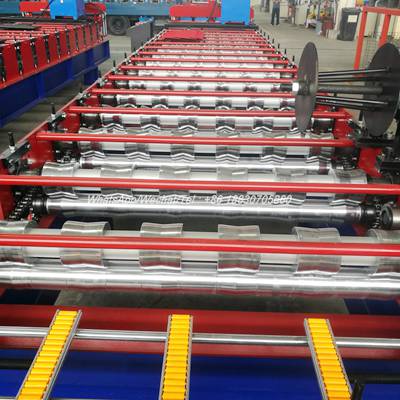

With a sturdy frame and precision-engineered rollers, the machine ensures uniform profile geometry, minimal material waste, and consistent surface finish. It can process a range of steel thicknesses, allowing flexibility to meet different project requirements and aesthetic designs

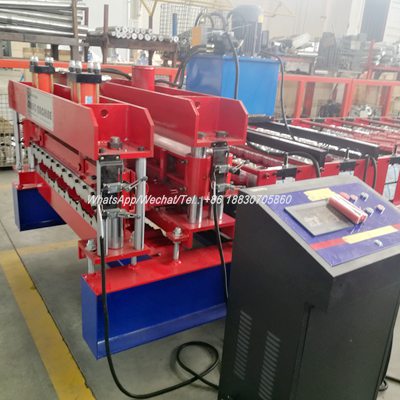

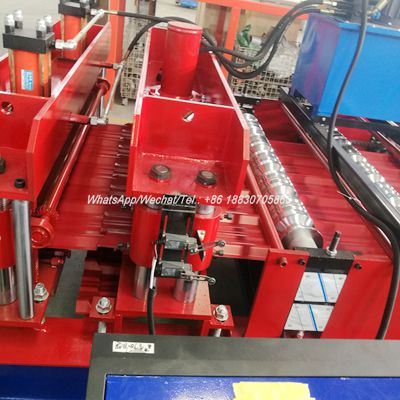

The PLC control system allows operators to adjust tile length, production speed, and cutting accuracy effortlessly. Hydraulic post-cutting guarantees clean edges and precise repetition, which is crucial for seamless roof installation. This glazed roof tile machine supports color-coated steel and offers excellent resistance to corrosion and weathering, meeting the standards of European and North African markets
Compared with traditional clay tile solutions, this metal glazed tile roll forming machine reduces weight, simplifies installation, and provides long-term durability. For manufacturers and contractors looking for decorative roofing solutions, this machine offers a competitive combination of production efficiency, visual quality, and operational reliability
