| Item | Specification |
|---|---|
| Deck Profile Height | 38–76 mm |
| Material Thickness | 0.8–1.5 mm |
| Material Type | Galvanized steel, pre-painted steel |
| Yield Strength | 235–350 MPa |
| Production Speed | 12–20 m/min |

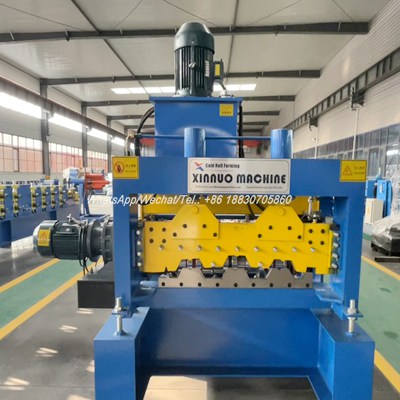

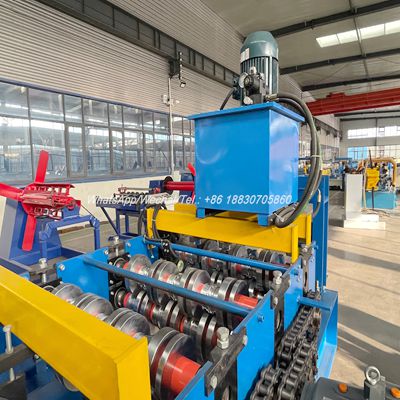

This floor deck roll forming machine is designed for high-load metal decking systems widely used in commercial and industrial construction projects. The line ensures stable forming accuracy, strong rib definition and excellent load-bearing performance, meeting European structural floor deck requirements.
| Parameter | Range / Description |
|---|---|
| Applicable Material | GI / HDG / PPGI |
| Material Thickness | 0.8 – 1.5 mm |
| Yield Strength | 235 – 350 MPa |
| Effective Width | Customized according to deck profile |
| Deck Height | 38 mm / 51 mm / 60 mm / 76 mm (optional) |
| Roller Stations | 18 – 24 stations |
| Roller Material | Cr12, heat-treated |
| Shaft Diameter | 75 – 90 mm |

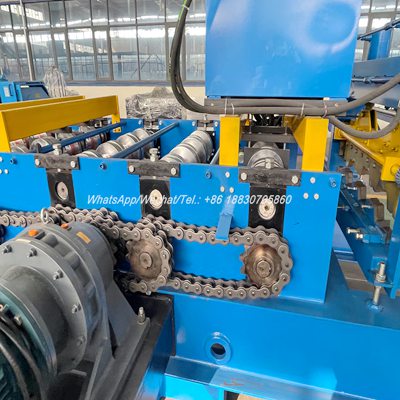

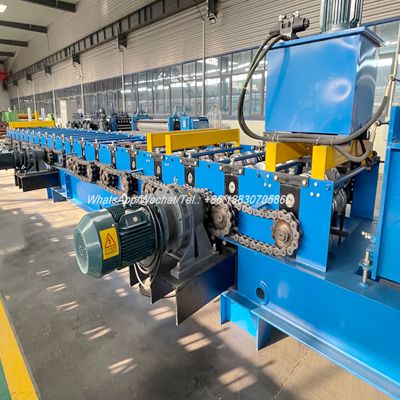

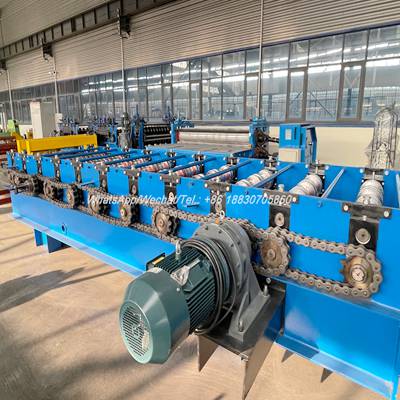

| Drive System | Gearbox or chain drive |
| Cutting Type | Hydraulic post-cutting |
| Control System | PLC with touch screen |
| Length Tolerance | ±1.0 mm |
| Power Supply | 380V / 50Hz / 3Phase (customizable) |
The floor decking machine is engineered for producing structural metal deck panels used as permanent formwork in reinforced concrete floor systems. Compared with traditional slab construction, metal decking significantly reduces concrete consumption, installation time and labor cost, making it a preferred solution in European commercial buildings, warehouses and multi-story structures.

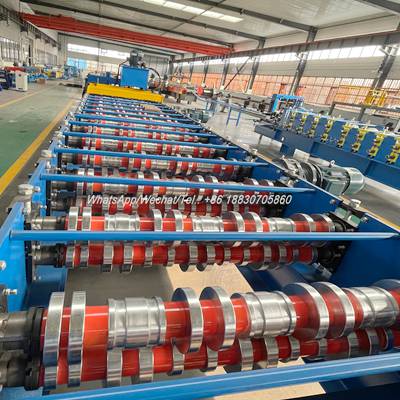

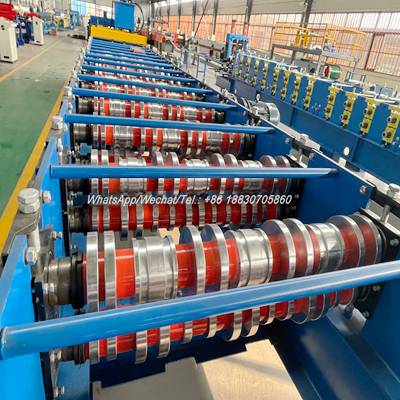

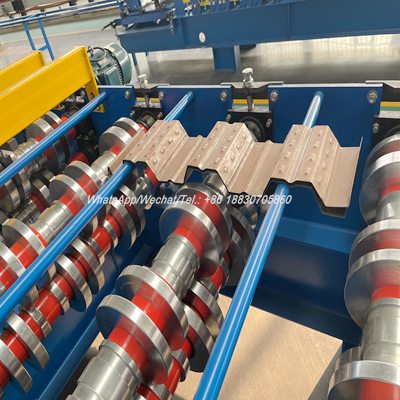

This metal deck roll forming machine adopts a high-precision roll forming structure to ensure uniform rib height and excellent interlocking strength. The forming rollers are manufactured from Cr12 steel and precisely machined to guarantee long service life and consistent forming quality, even under continuous production conditions.
The floor deck roll forming machine supports a wide range of material thicknesses and steel grades, allowing manufacturers to flexibly respond to different project load requirements. Hydraulic post-cutting ensures clean edges without deforming the deck profile, while the PLC control system enables automatic length control and easy parameter adjustment.
Designed to meet European construction standards, this floor deck machine is widely used by steel structure contractors and floor decking suppliers. Its stable performance, high production efficiency and low maintenance requirements make it suitable for both medium-scale factories and large industrial production lines.
With reliable forming accuracy and excellent structural performance, this floor deck roll forming machine helps manufacturers deliver high-quality metal deck panels that meet the demands of modern construction markets.
