Xinnuo Shutter Machine: Efficient Roller Shutter Door Production

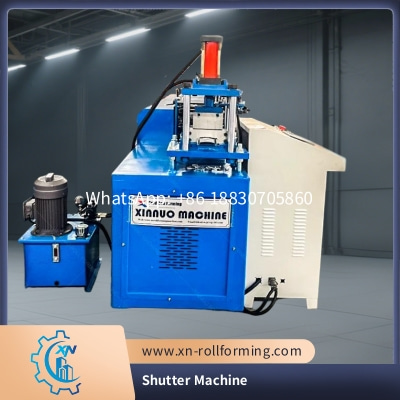

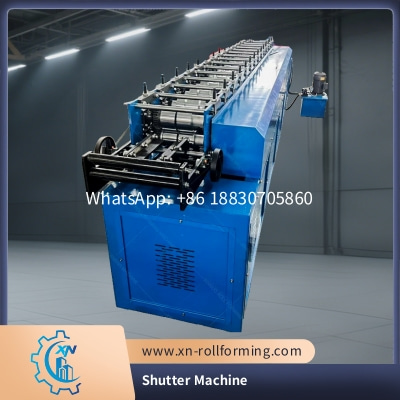

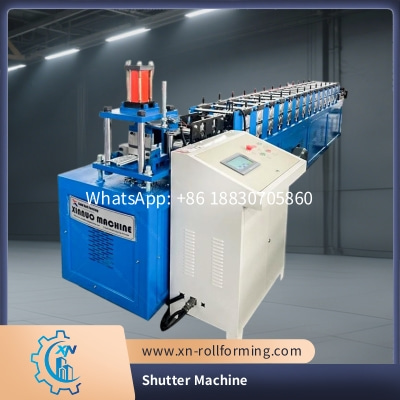

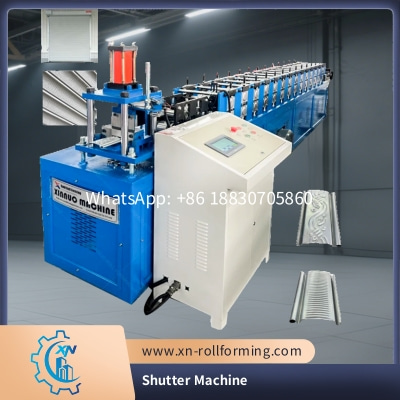

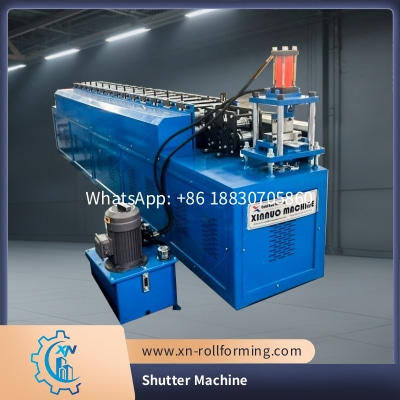

Xinnuo’s Shutter Machine is a specialized roll forming solution designed to craft high-quality roller shutter doors with speed and precision. Engineered to handle diverse materials, this machinery stands out for its versatility and reliability, making it a top choice for manufacturers in the building and security sectors.
|
machine name
|
Roller Shutter Door Roll Forming Machinery Manufacturers Price
|
|
Suitable to process
|
Color steel plate,galvanized sheet,aluminum coils and etc.
|
|
Roller station
|
12 rows
|
|
Thickness of feeding material
|
0.3-1.0mm
|
|
Productivity
|
15-25m/min
|
|
Rollers’ material
|
Cr12 steel with chrome treatment on surface
|
|
Diameter of shaft
|
50mm
|
|
Weight
|
About 2.0 T
|
|
Size
|
5.0+1.0+1.5 m
|
|
Voltage
|
380V 50Hz 3Phase
|
|
Main motor power
|
4 kw
|
|
Hydraulic cutting power
|
4kw
|

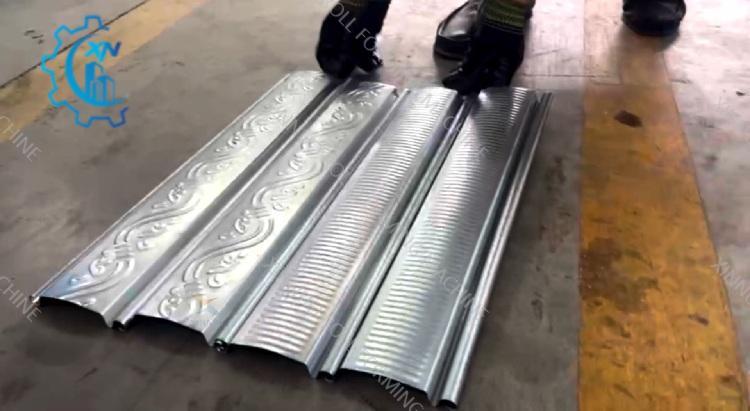

The machine excels in processing a range of substrates, including color steel plates, galvanized sheets, and aluminum coils—materials prized for their durability and weather resistance in shutter door applications. It accommodates material thicknesses from 0.3mm to 1.0mm, ensuring flexibility for producing shutters of varying strength and weight.

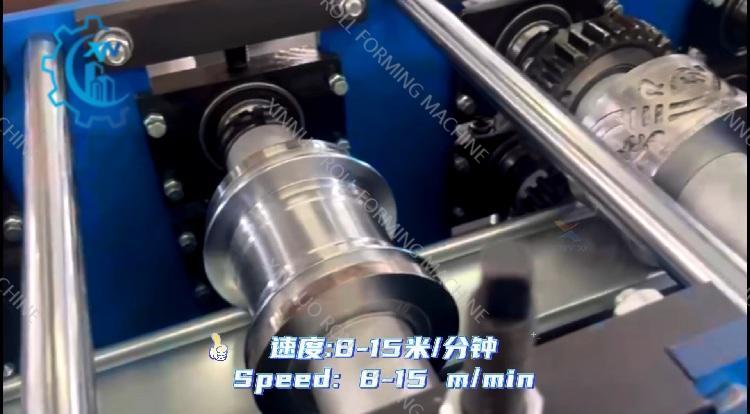

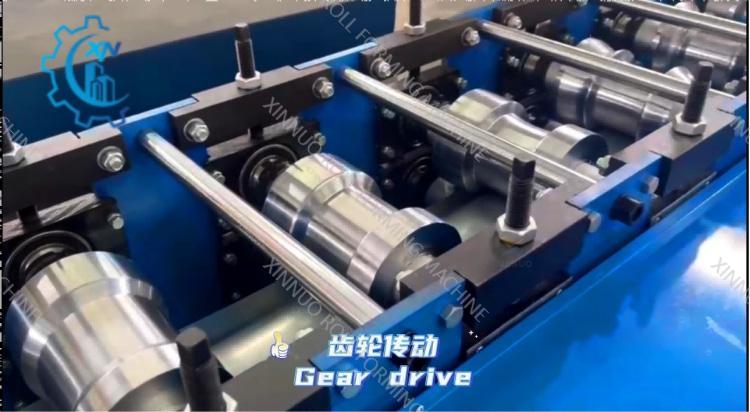

At the core of its performance is a 12-row roller station, where each roller is crafted from Cr12 steel with a chrome-plated surface. This construction enhances wear resistance and ensures consistent shaping, even during extended production runs. The 50mm diameter shafts provide robust support, minimizing vibration and maintaining precision throughout the forming process.

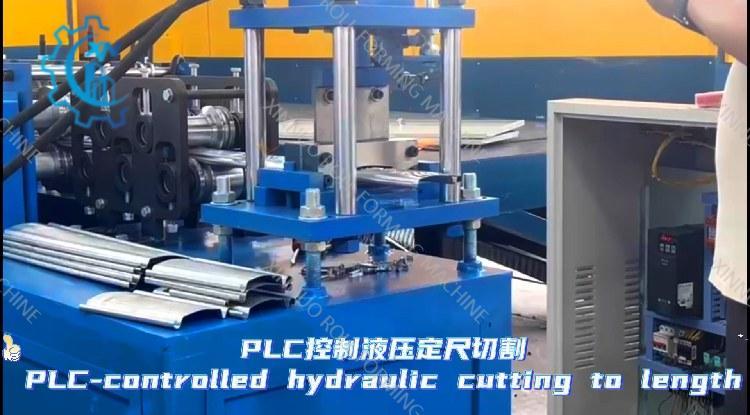

Powered by a 4kw main motor, the machine operates at a productivity rate of 15–25m/min, balancing speed with accuracy to meet high-volume production demands. Its 4kw hydraulic cutting system delivers clean, precise cuts, ensuring each shutter section fits seamlessly during assembly.
Built for practicality, the machine weighs approximately 2.0 tons and measures 5.0m × 1.0m × 1.5m, making it suitable for workshops with limited space. It runs on 380V 50Hz three-phase power, with options to adapt to regional voltage requirements.
Xinnuo’s Shutter Machine combines industrial-grade performance with user-friendly design, enabling manufacturers to produce durable, well-finished roller shutter doors efficiently. Backed by our commitment to quality, this machinery is an investment in consistent output and long-term operational reliability.
