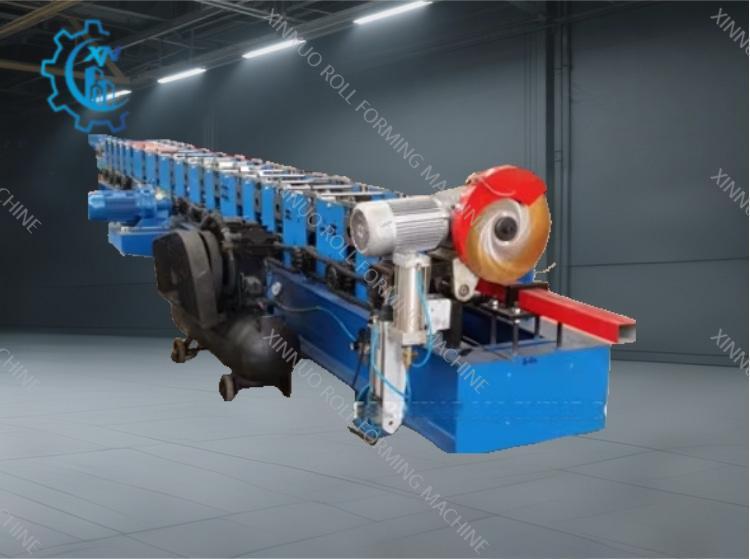

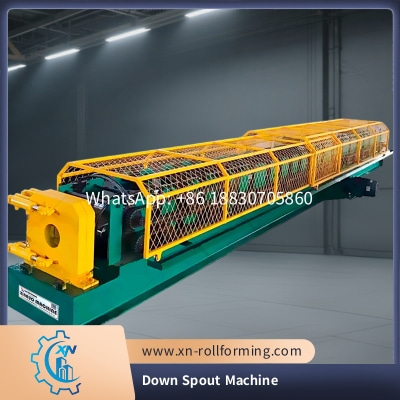

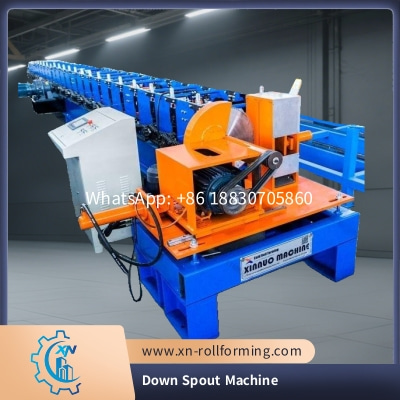

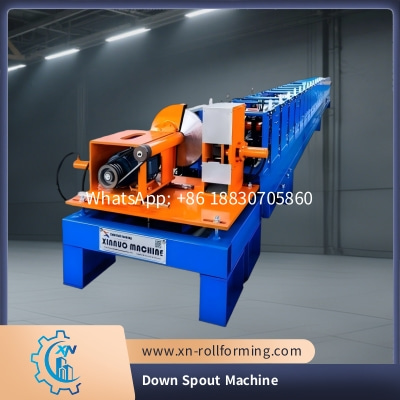

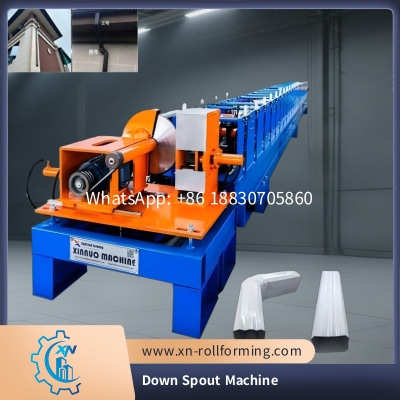

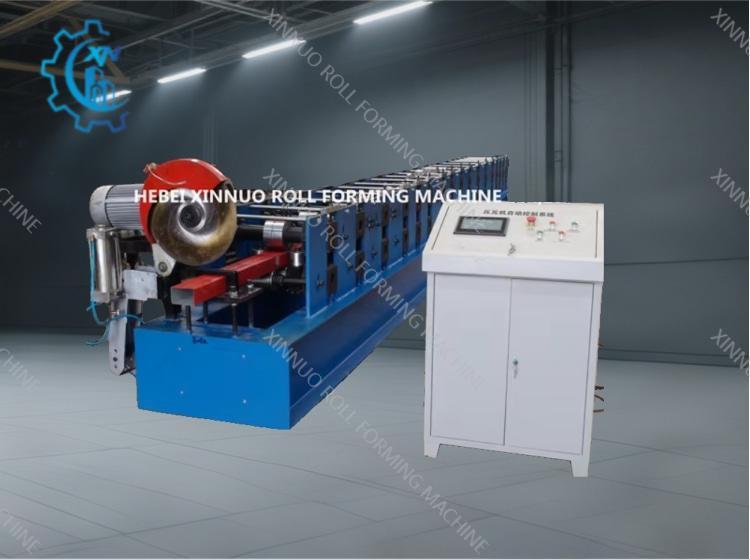

Xinnuo Downspout Machine: Precision Crafting for Metal Rain Downpipes
Xinnuo’s Downspout Machine is a specialized piece of equipment engineered to produce high-quality metal rain downpipes with exceptional precision and efficiency. Tailored for the construction and drainage industries, this machine combines robust construction with flexible performance, making it an ideal solution for both standard and custom downpipe production needs.
|
1
|
Suitable to process
|

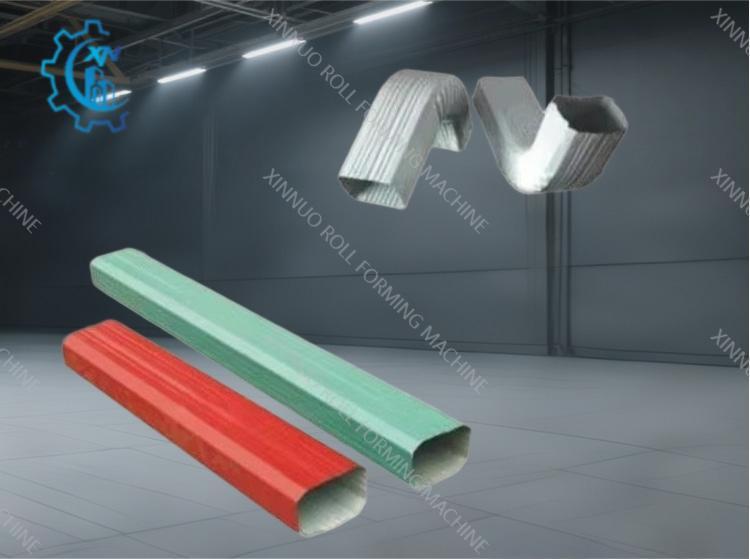

Metal rain downpipe
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
0.3-0.6mm or as your requirement
|
|
5
|
Productivity
|
12-15m/min or as your requirement
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
4+3kw
|
|
13
|
Weight
|
About 4.5 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Designed specifically to process metal rain downpipes, the machine offers remarkable versatility in handling feeding materials. The width of the feeding material can be adjusted according to your specific requirements, ensuring compatibility with various downpipe designs and sizes. It can process materials with a thickness ranging from 0.3mm to 0.6mm, and this range can also be customized to meet unique project demands, providing adaptability for different metal gauges used in downpipe manufacturing.

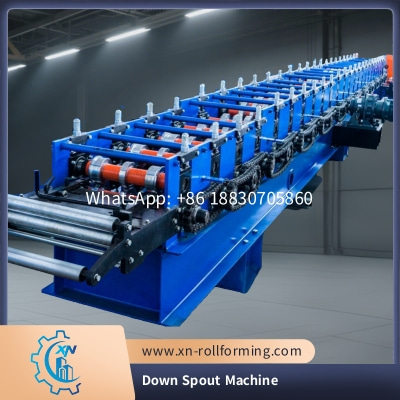

The Downspout Machine features a roller station configuration with 11-18 rows, which can be further customized based on customer needs. This flexible roller setup allows for precise shaping of the metal into the desired downpipe profiles, ensuring consistent and accurate results. The rollers themselves are made from 45# steel, known for its durability and wear resistance, guaranteeing long-term performance even with continuous operation. The shaft diameter measures 70-80mm, providing sturdy support for the rollers and contributing to the machine’s overall stability during the forming process.
In terms of productivity, the machine operates at a speed of 12-15m/min, a rate that can be adjusted to match your production requirements. This balance of speed and precision ensures efficient output without compromising the quality of the finished downpipes. The motor power of 4+3kw delivers reliable performance, driving the forming and auxiliary functions smoothly.
Built to last, the main forming machine boasts a wall thickness of 12-18mm steel plate, providing a solid and rigid structure. The main body is constructed using 300-400mm H steel, enhancing the machine’s stability and resistance to deformation during heavy-duty operation. With a weight of approximately 4.5 tons, it stands as a robust piece of equipment designed for long-term, continuous use in industrial settings.
The machine operates on a voltage of 380V 50Hz 3phases, but this can be modified to suit specific regional or customer requirements, ensuring seamless integration into various production facilities worldwide. One of the key advantages of Xinnuo’s Downspout Machine is its high level of customization. Every aspect, from roller configuration to material thickness handling and voltage settings, can be tailored according to customer needs, making it a versatile solution for diverse downpipe production projects.
Whether you’re manufacturing standard rain downpipes for residential buildings or custom-designed ones for commercial complexes, Xinnuo’s Downspout Machine delivers the precision, efficiency, and flexibility required to meet your production goals. Backed by Xinnuo’s commitment to quality and customer satisfaction, this machine is a reliable investment for enhancing your downpipe manufacturing capabilities.
