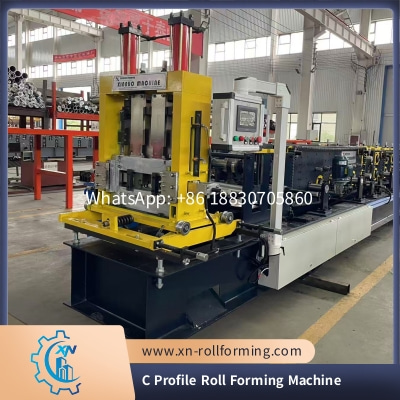

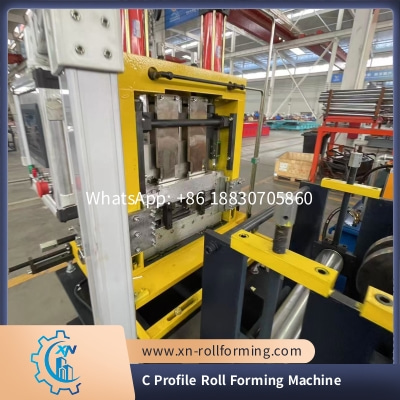

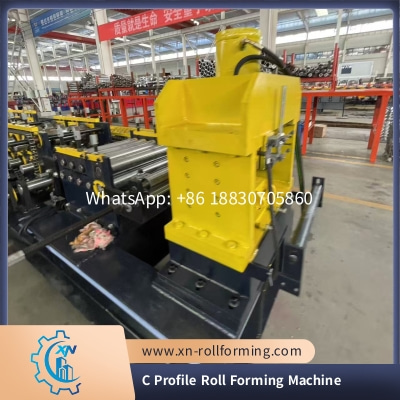

Xinnuo C Profile Roll Forming Machine: Precision for Automatic C Purlin Manufacturing
Xinnuo’s C Profile Roll Forming Machine is a specialized equipment engineered for automatic C purlin roll forming, designed to meet the high standards of steel structure fabrication, construction, and prefabricated building industries. This machine integrates advanced rolling technology with robust craftsmanship, delivering consistent, high-quality C-shaped profiles that serve as essential load-bearing components for roofs, walls, and frameworks in diverse architectural projects.
|
1
|
Suitable to process
|
automatic C purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
18-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
Flexibility is a core advantage of this machine, starting with its customizable feeding material width—tailored exactly to your project requirements. This eliminates size limitations, allowing production of C profiles in varied dimensions, whether for small residential structures or large industrial warehouses. It also handles feeding material thicknesses from 1.5mm to 3mm, with options to adjust this range for specific needs, ensuring compatibility with both light and medium-duty structural applications.

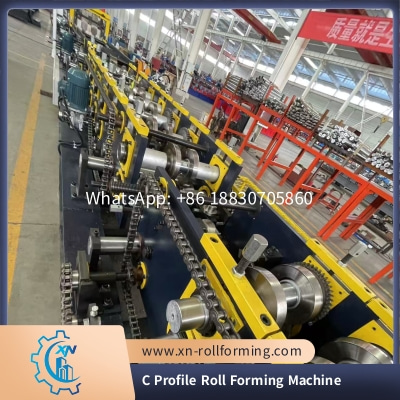

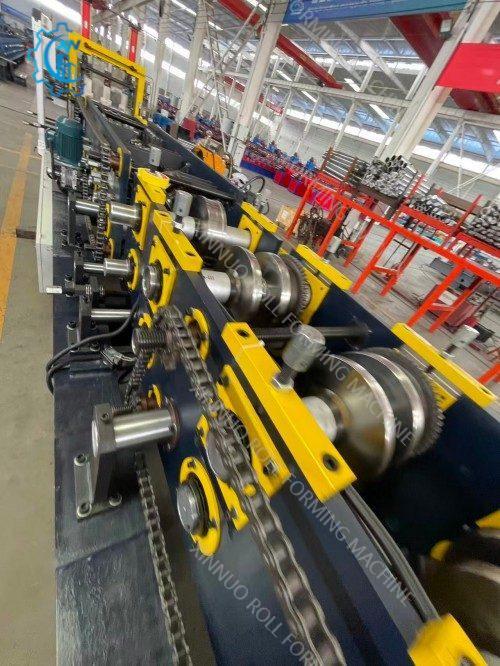

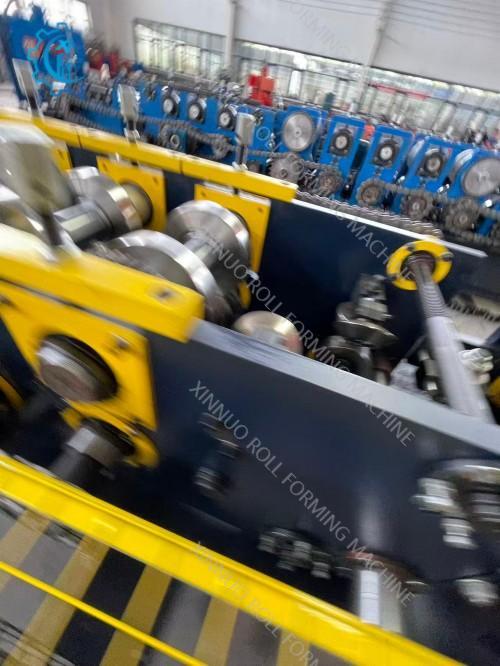

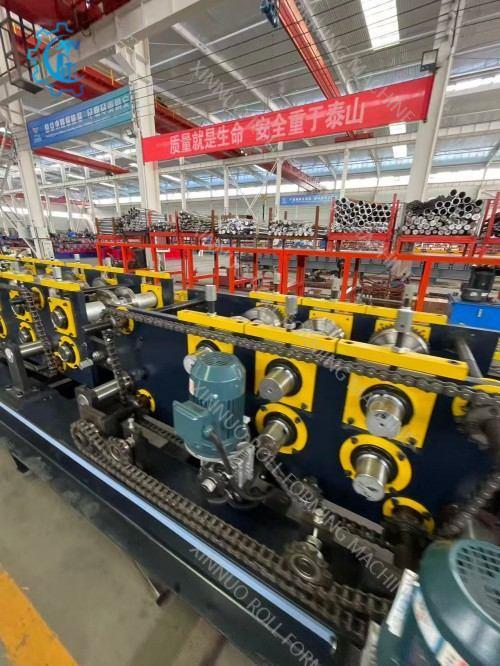

Precision in forming is guaranteed by its 11-18 roller stations, with full customization available based on customer demands. This multi-stage rolling process ensures gradual, uniform shaping of C profiles, maintaining consistent dimensions and structural integrity that comply with industry standards. The rollers, crafted from 45# steel, offer exceptional wear resistance, preserving precision even after prolonged high-volume operation. Supported by 70-80mm diameter shafts, the rolling system minimizes vibration during production, further enhancing the accuracy of each finished profile.
Efficiency is a standout feature, with a productivity rate of 18-20 meters per minute—enabling high-volume output to meet tight project deadlines without compromising quality. This performance is powered by a 22kw motor, which delivers stable, robust torque to handle thick-gauge materials smoothly, reducing downtime and optimizing overall production workflows.
Structural durability ensures long-term reliability. The main forming unit features 12-18mm thick steel plates, while the machine’s main body is constructed from 300-400mm H steel—materials chosen for their rigidity and resistance to deformation. Weighing approximately 9.8 tons, the machine maintains exceptional stability during high-speed operation, preventing shifts that could affect forming precision and extending equipment lifespan.
To adapt to global production environments, the machine operates on a standard 380V 50Hz 3-phase power supply, with voltage customization available to match regional electrical requirements. Beyond power and dimensions, Xinnuo offers comprehensive customization services covering all parameters—from roller station configurations to material handling capacities—ensuring the machine aligns perfectly with your unique production needs.
Ideal for steel fabricators, construction material suppliers, and prefab manufacturers, Xinnuo’s C Profile Roll Forming Machine is more than equipment: it’s a reliable partner in delivering consistent, high-quality C profiles. Its blend of flexibility, precision, efficiency, and durability makes it a smart investment for businesses aiming to elevate their C purlin production capabilities.
