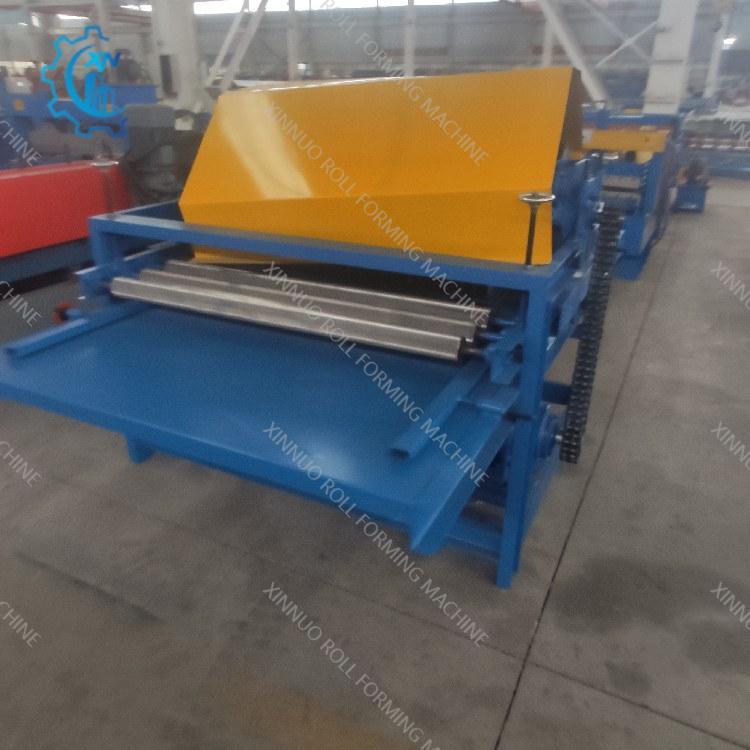

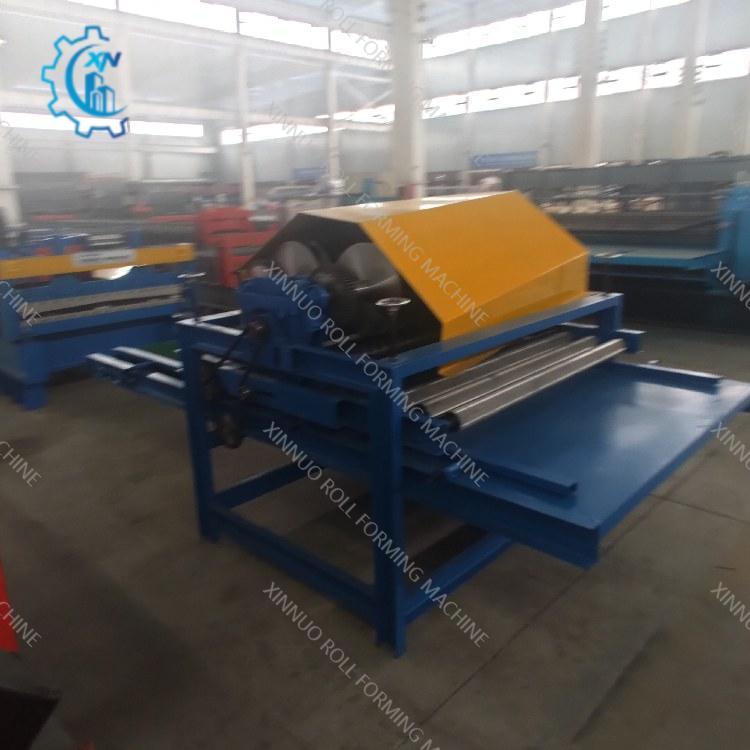

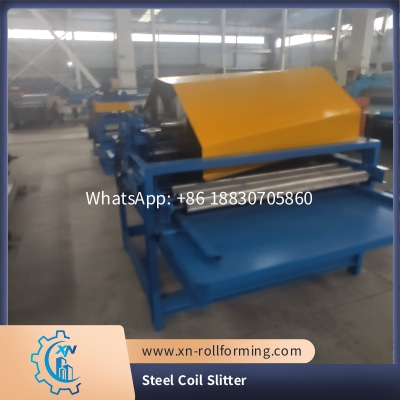

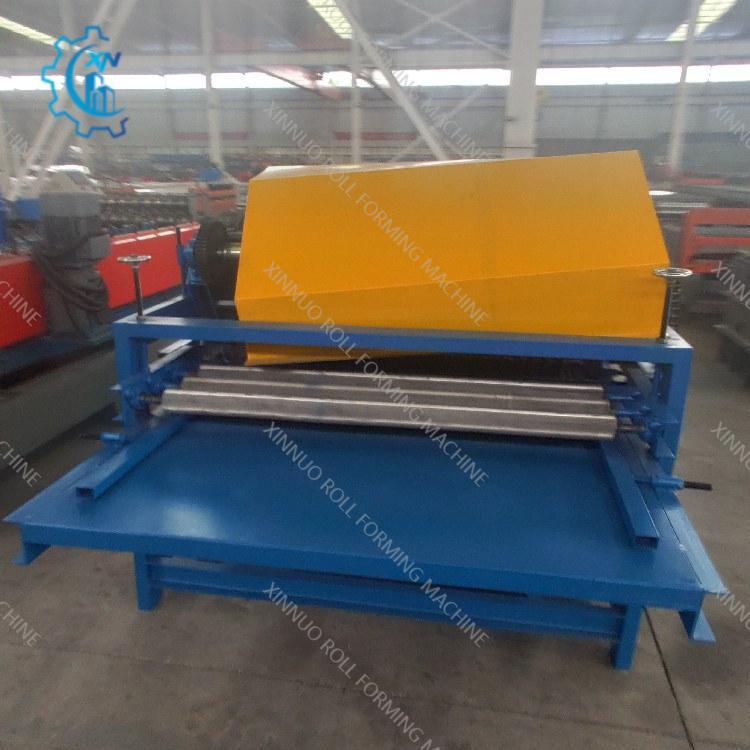

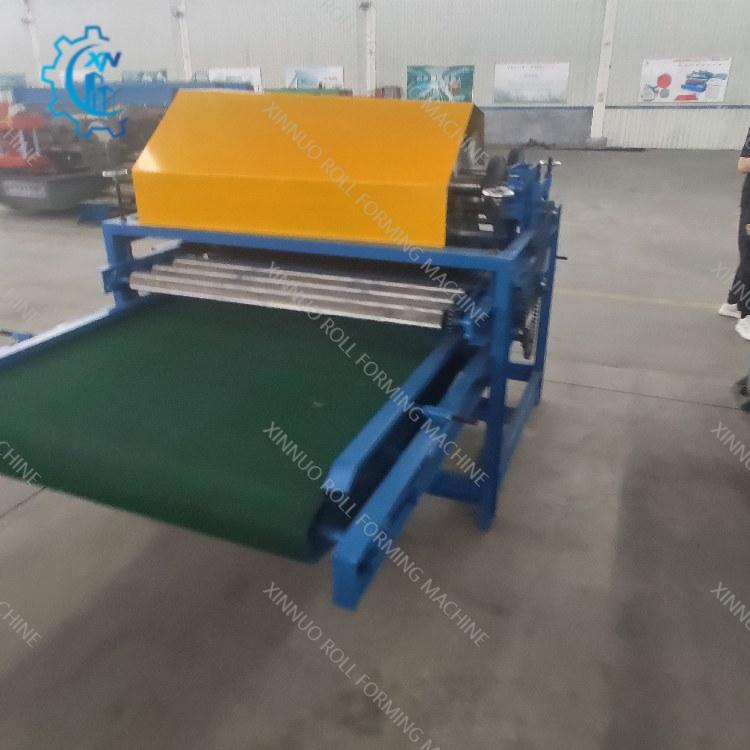

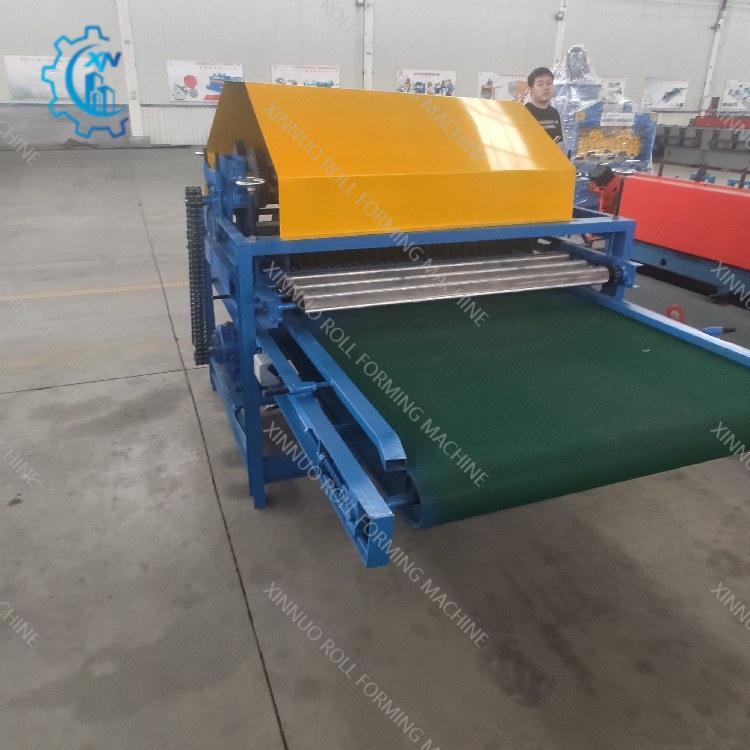

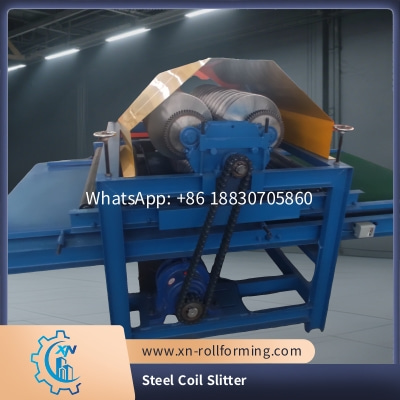

Xinnuo Steel Coil Slitter: Precision Steel Processing Redefined
Xinnuo's Steel Coil Slitter is a high - performance machine engineered to revolutionize steel coil processing. Tailored for industries with exacting demands, this machine transforms large steel coils into precisely sized, narrower strips with unrivaled accuracy and efficiency.
|
product name
|
Steel Coil Slitting and Cutting Machine Line for Metal Steel Coils
|
|
suitable to produce
|
GI,PPGI and etc
|
|
raw material width
|
1300mm or as customer need
|
|
raw material thickness
|
1.0-3.0mm
|
|
coil width
|
5 tons,10 tons,20 tons or as customer need
|
|
main motor power
|
about 45 kw
|
|
production speed
|
20-30m/min
|
Operational Excellence
The operational process of our Steel Coil Slitter is a harmonious symphony of mechanical precision. Initially, a steel coil is carefully hoisted onto the uncoiler using a crane. The uncoiler, equipped with an expandable mandrel, firmly grips the inner diameter of the coil. As the mandrel rotates, the coil smoothly unwinds, and the leading edge of the steel sheet is threaded through the edge - guiding system. This system ensures the sheet remains centered and stable as it advances towards the slitting unit.

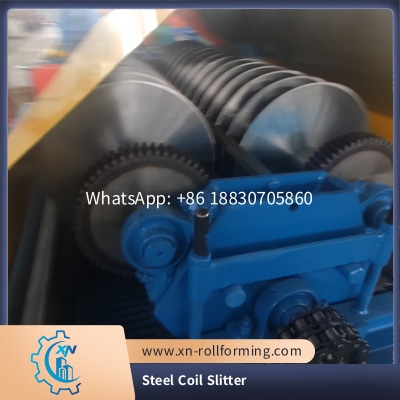

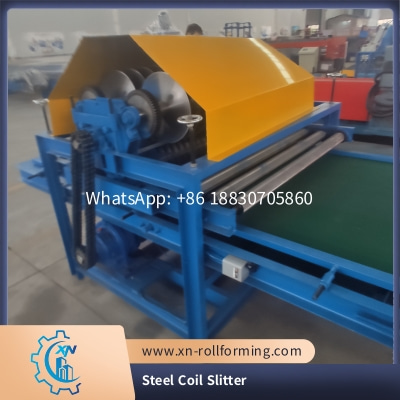

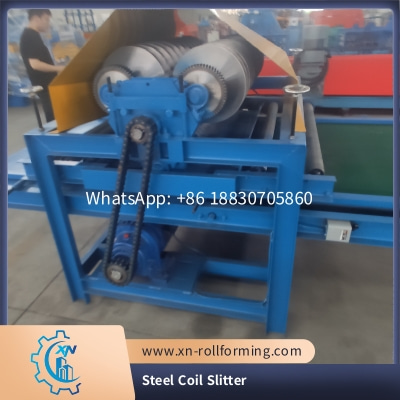

The slitting unit is the heart of the machine. It features two parallel arbors, each fitted with a set of high - quality, hardened circular knives. These knives are precisely spaced according to the desired strip width. As the steel sheet passes between the rotating knives, they slice through the steel with surgical precision, creating multiple uniform - width strips. The width adjustment mechanism is highly accurate, allowing for customization to meet the diverse needs of various industries. After slitting, the strips are guided through a tension - control system. This system maintains optimal tension, preventing the strips from wrinkling or distorting. Finally, the slit strips are wound onto the recoiler, neatly coiled and ready for the next stage of production.
Technical Prowess
Our Steel Coil Slitter is a technological marvel, boasting an array of impressive specifications. It can handle a wide range of steel types, including cold - rolled steel, hot - rolled steel, galvanized steel, and stainless steel. The machine is designed to process steel coils with thicknesses ranging from 0.2mm to 6mm, making it suitable for applications that require both thin and thick - gauge steel strips. The maximum width of the steel coil that can be fed into the machine is up to 1800mm, and it can accommodate coil weights of up to 15 tons.
The slitting speed is adjustable, with high - end models capable of reaching speeds of up to 200m/min. This high - speed operation significantly boosts productivity, reducing production time and costs. The slitting accuracy is remarkable, with a tolerance of ±0.05mm. This level of precision ensures that each strip meets the strictest quality standards, making our Steel Coil Slitter the ideal choice for industries where dimensional accuracy is crucial.
