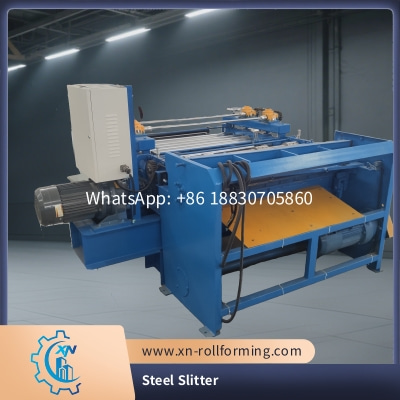

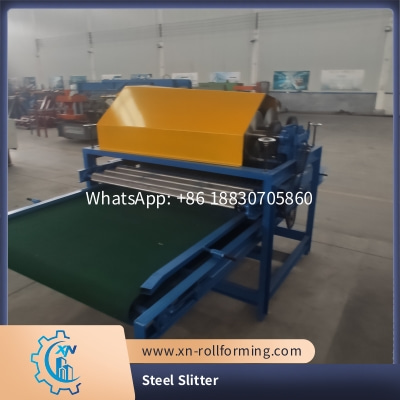

Xinnuo Steel Slitter: Precision - Driven Steel Coil Processing
Xinnuo's Steel Slitter is a sophisticated piece of machinery designed to meet the exacting demands of modern steel processing. Engineered with precision and efficiency in mind, this machine plays a pivotal role in various industries by converting large steel coils into precisely sized, narrower strips.
|
product name
|
Steel Coil Slitting and Cutting Machine Line for Metal Steel Coils
|
|
suitable to produce
|
GI,PPGI and etc
|
|
raw material width
|
1300mm or as customer need
|
|
raw material thickness
|
1.0-3.0mm
|
|
coil width
|
5 tons,10 tons,20 tons or as customer need
|
|
main motor power
|
about 45 kw
|
|
production speed
|
20-30m/min
|
Operational Mechanics

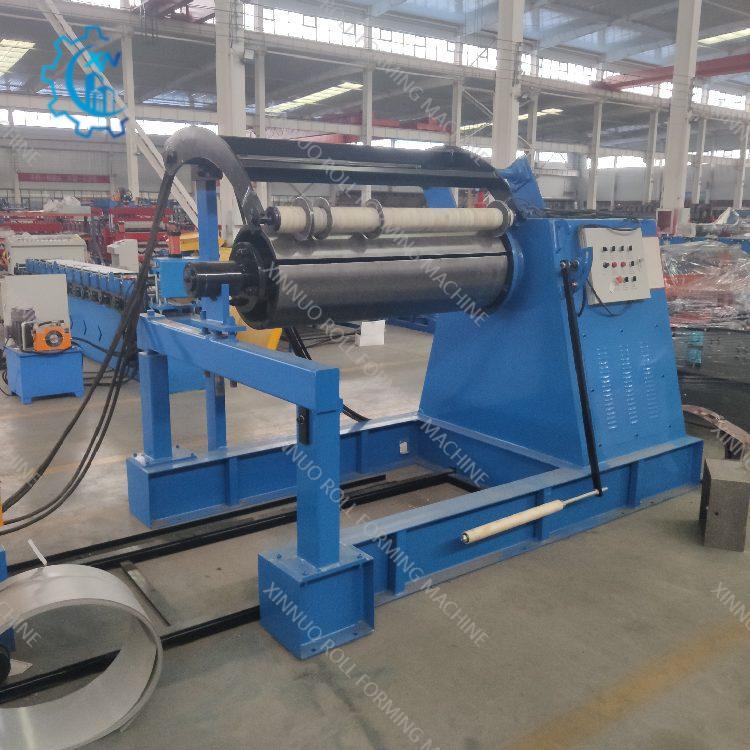

At its core, the Steel Slitter operates in a streamlined process. First, a steel coil is carefully loaded onto the uncoiler mandrel. The uncoiler then smoothly unwinds the coil, feeding the continuous steel sheet into the slitting unit. Here, a set of high - quality, hardened circular knives, mounted on parallel arbors, rotate at high speeds. These knives work in tandem to slice the steel sheet into multiple, uniform - width strips according to pre - set specifications. The width of the strips can be adjusted with great precision, allowing for customization to meet diverse industry needs. After slitting, the individual steel strips are guided through a tension - control system that ensures they remain flat and free from wrinkles or twists. Finally, the slit strips are wound onto the recoiler, ready for further processing or shipment.
Technical Specifications
Our Steel Slitter is highly versatile in handling different types of steel. It can process cold - rolled steel, hot - rolled steel, galvanized steel, and even stainless steel. The machine can accommodate steel coils with thicknesses ranging from 0.2mm to 5mm, making it suitable for a wide array of applications. The maximum width of the steel coil that can be processed is typically up to 1500mm, and the machine can handle coil weights of up to 10 tons. The slitting speed is adjustable, with high - performance models capable of reaching speeds of up to 150m/min, significantly enhancing productivity. The slitting accuracy is remarkable, with a tolerance of ±0.1mm, ensuring that each strip meets the strictest quality standards.
Applications
The applications of Xinnuo's Steel Slitter span across multiple industries. In the automotive industry, it is used to produce steel strips for car body panels, chassis components, and exhaust systems. The construction sector relies on it to create steel strips for roofing, siding, and structural reinforcements. In the manufacturing of household appliances, the slitter helps in producing metal casings for refrigerators, washing machines, and stoves. Additionally, it is widely used in the production of metal packaging, such as cans and barrels, where precise - width steel strips are essential.
