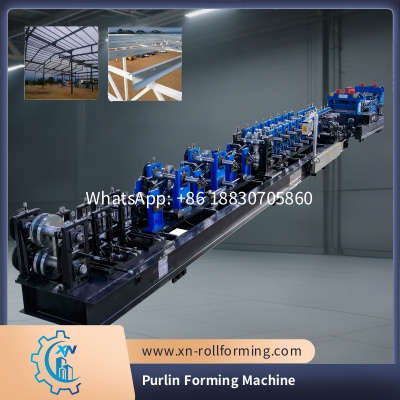

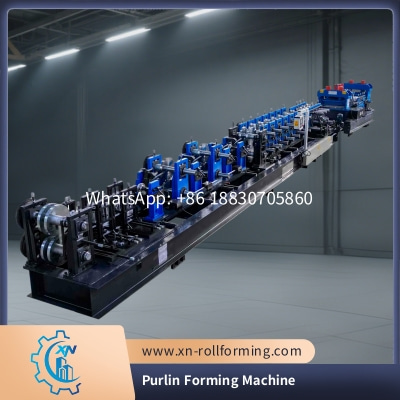

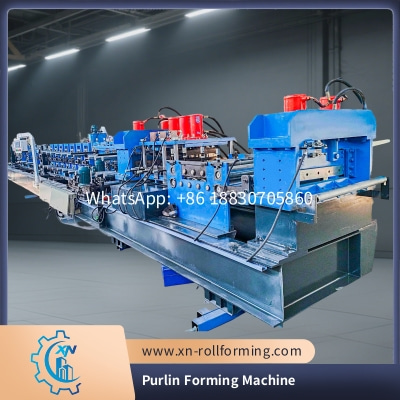

Xinnuo CZ Purlin Forming Machine: Versatile Precision for Structural Excellence
Xinnuo’s CZ Purlin Forming Machine stands as a cornerstone of modern structural steel production, engineered to craft high-strength C and Z-shaped purlins with unmatched versatility. Designed for industrial and commercial construction, this machine combines robust engineering with customizable features, making it ideal for fabricators seeking reliable, tailored solutions.
|
1
|
Suitable to process
|
Automatic CZ purlin roll forming machine
|
|
2
|
Width of the feeding material
|
as your requirement
|
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
|
4
|
Thickness of feeding material
|
1.5-3mm or as your requirement
|
|
5
|
Productivity
|
15-20 m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
22 kw
|
|
13
|
Weight
|
About 9.8 T
|
|
14
|
Custom
|
According to customer’s requirements
|
At its core, the machine excels in processing thick-gauge materials, handling feeding thicknesses from 1.5mm to 3mm—with flexibility to adapt to specific project needs. The feeding width is fully customizable, ensuring compatibility with diverse design requirements, from standard profiles to unique structural specifications. This adaptability is further enhanced by its roller stations, which range from 11 to 18 rows and can be tailored to match precise forming demands, ensuring consistent, accurate profiles every time.

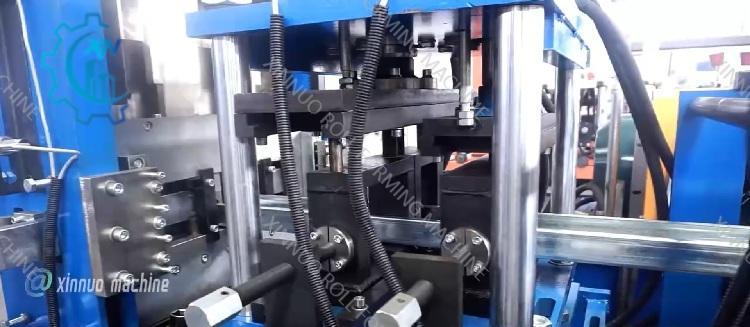

Performance is a key strength: powered by a 22kw motor, the machine operates at a steady 15–20 meters per minute, balancing speed with precision to meet high-volume production targets. The rollers, crafted from durable 45# steel, maintain their integrity even under heavy use, while shafts with diameters of 70–80mm provide stable support, minimizing vibration and ensuring uniform forming.

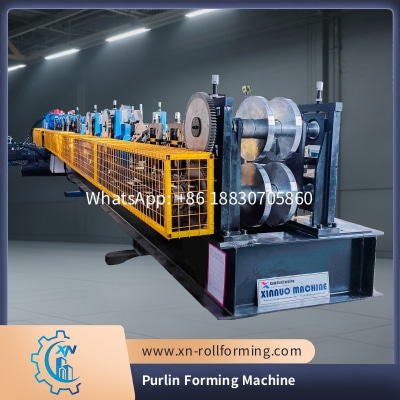

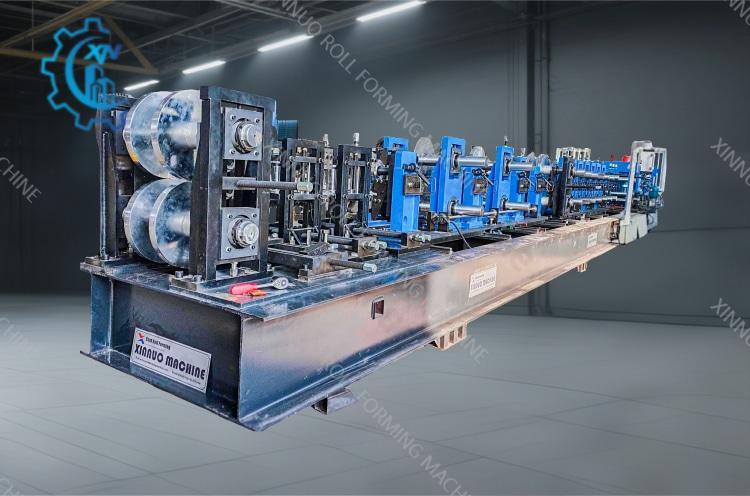

Durability is built into every component. The main forming machine body features 300–400mm H steel, paired with 12–18mm thick steel plates for the frame, delivering exceptional rigidity to handle thick materials without deformation. With an approximate weight of 9.8 tons, the machine stands firm during operation, reducing wear and extending service life.
Flexibility extends to operational needs: standard voltage is 380V 50Hz three-phase, but configurations can be adjusted to match regional power requirements. Whether for industrial warehouses, commercial complexes, or large-scale infrastructure, this machine adapts to diverse project scopes.
Xinnuo prioritizes customization, working closely with clients to modify roller stations, material compatibility, or output specifications. Backed by rigorous quality standards, the CZ Purlin Forming Machine ensures structural purlins meet stringent load-bearing and safety requirements, making it a trusted choice for fabricators aiming to deliver excellence in every project.
